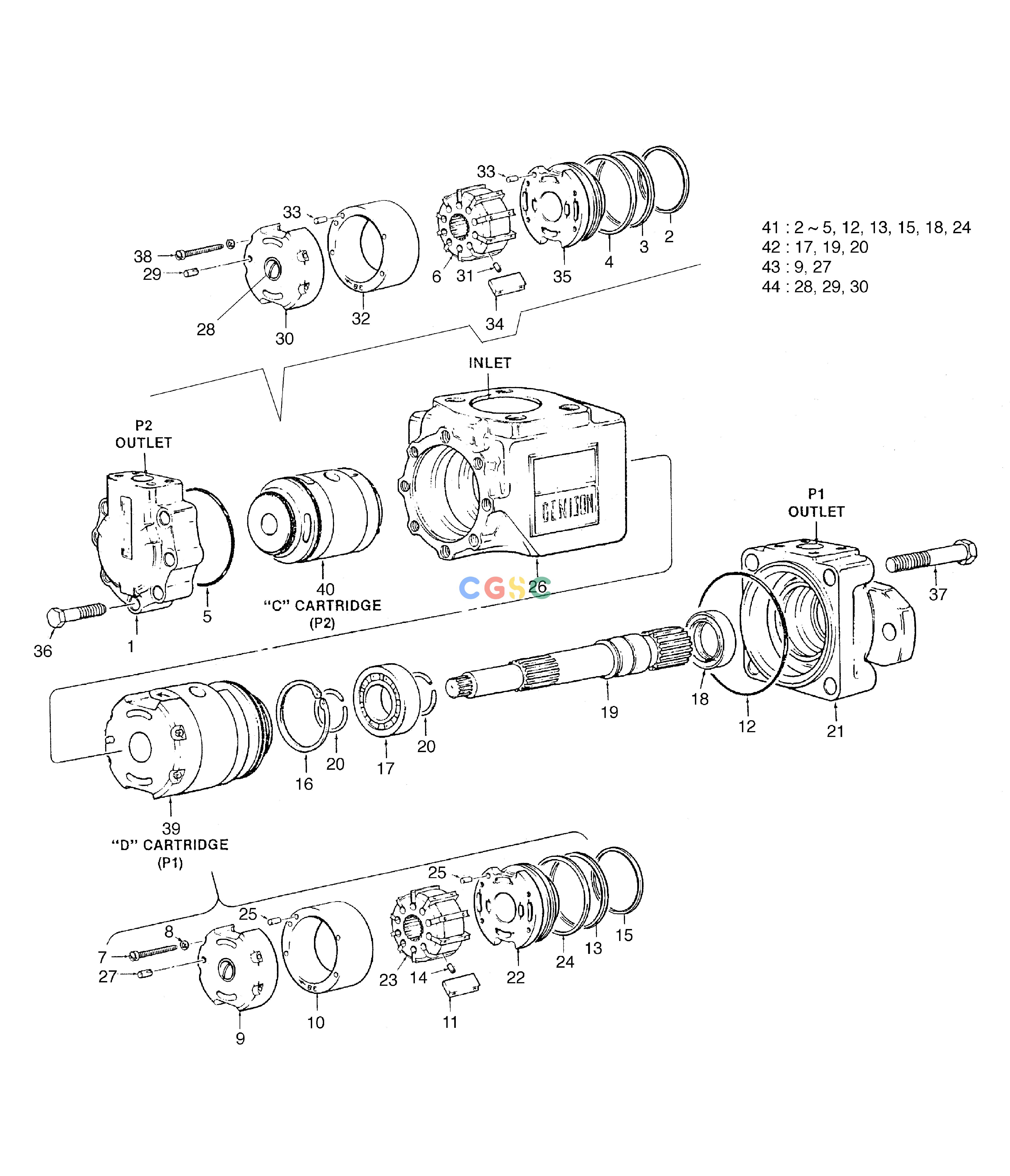

斗山零件查询STEER & PILOT PUMP MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00158
|
[1] |
PUMP;PILOT & STEER
|
|
| 1. |
NA00311
|
[1] |
|
|
| 10. |
NA00960
|
[1] |
|
|
| 11. |
NA01312
|
[10] |
|
|
| 12. |
NA01101
|
[1] |
|
|
| 13. |
NA01101
|
[1] |
|
|
| 14. |
NA00790
|
[10] |
|
|
| 15. |
NA01101
|
[1] |
|
|
| 16. |
NA00973
|
[1] |
|
|
| 17. |
NA00053
|
[1] |
BEARING;BALL
|
|
| 18. |
NA01099
|
[1] |
SEAL;SHAFT
|
|
| 19. |
NA01124
|
[1] |
SHAFT
|
|
| 2. |
NA01101
|
[1] |
|
|
| 20. |
NA00974
|
[2] |
|
|
| 21. |
NA00314
|
[1] |
|
|
| 22. |
NA00902
|
[1] |
|
|
| 23. |
NA01024
|
[1] |
|
|
| 24. |
NA00946
|
[1] |
|
|
| 25. |
NA00766
|
[2] |
|
|
| 26. |
NA00537
|
[1] |
|
|
| 27. |
NA00766
|
[1] |
|
|
| 28. |
NA00258
|
[1] |
BUSH
|
|
| 29. |
NA00766
|
[1] |
|
|
| 3. |
NA01101
|
[1] |
|
|
| 30. |
NA00829
|
[1] |
|
|
| 31. |
NA00790
|
[12] |
|
|
| 32. |
NA00960
|
[1] |
|
|
| 33. |
NA00766
|
[2] |
|
|
| 34. |
NA01312
|
[12] |
|
|
| 35. |
NA00902
|
[1] |
|
|
| 36. |
NA01040
|
[7] |
VIS
|
|
| 37. |
NA01040
|
[4] |
VIS
|
|
| 38. |
NA01040
|
[2] |
VIS
|
|
| 39. |
S24.64859
|
[1] |
CARTRIDGE & PLATE KIT(P1)
|
|
| 4. |
NA00946
|
[1] |
|
|
| 40. |
S24.51524
|
[1] |
CARTRIDGE & PLATE KIT(P2)
|
|
| 41. |
180-00230
|
[1] |
SEAL KIT
|
|
| 42. |
405-00017
|
[1] |
SHAFT & BEARING KIT
|
|
| 43. |
412-00023
|
[1] |
PORT PLATE(P1)
|
|
| 44. |
412-00024
|
[1] |
PORT PLATE(P2)
|
|
| 5. |
NA01101
|
[1] |
|
|
| 6. |
NA01024
|
[1] |
|
|
| 7. |
NA01040
|
[2] |
VIS
|
|
| 8. |
NA00593
|
[2] |
|
|
| 9. |
NA00905
|
[1] |
|
|
