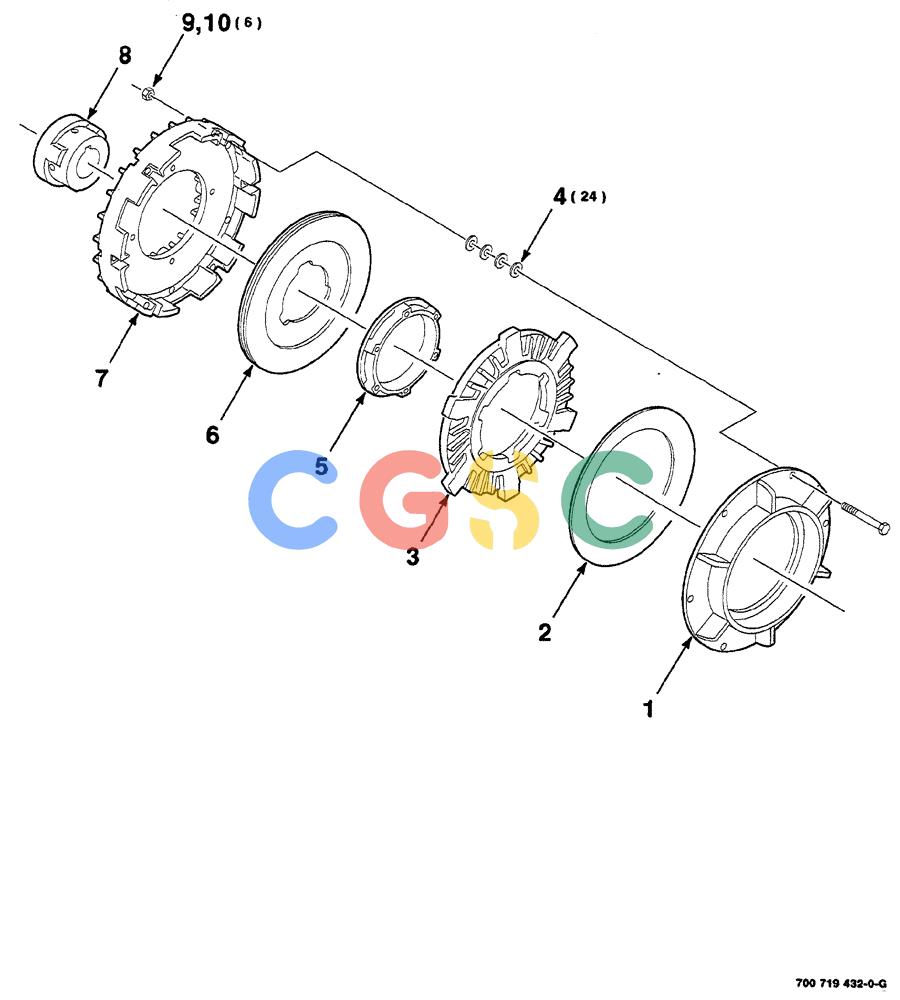

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (2-018) - CLUTCH MOUNTING ASSEMBLY, 700719432 COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
694 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700719432
|
[1] |
CLUTCH ASSEMBLY
|
HFI
complete
|
| 1. |
700719461
|
[1] |
PLATE
|
HFI
compression
|
| 2. |
700719460
|
[1] |
SPRING
|
HFI
disc
|
| 3. |
700719459
|
[1] |
DRIVE PLATE
|
HFI
pressure
|
| 4. |
496-21034
|
[24] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 5. |
700719462
|
[1] |
PLATE
|
HFI
puller
|
| 6. |
700719458
|
[1] |
CLUTCH DISC
|
HFI
CLUTCH DISK friction
|
| 7. |
700719456
|
[1] |
HOUSING
|
HFI
clutch
|
| 8. |
700719463
|
[1] |
HUB
|
HFI
clutch
|
| 9. |
413-540
|
[6] |
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 72187202, 88346
|
| 10. |
425-105
|
[6] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
