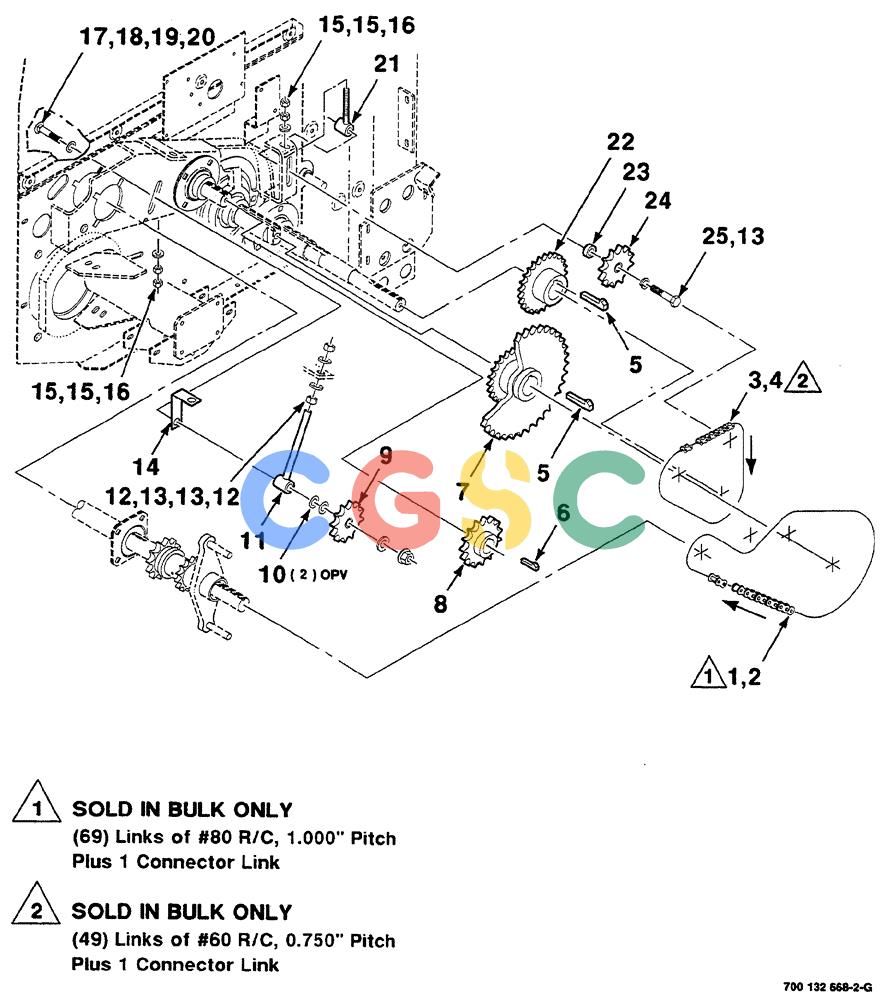

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (2-030) - ROLLER DRIVE ASSEMBLY, LOWER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
654437R91
|
[1] |
CHAIN (AG)
|
IH
roller, #80, 10 foot bulk
|
| 2. |
241-1418
|
[1] |
SPRING CLIP
|
CAS
LINK connector, #80, R/C
|
| 3. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
CHAIN roller, #60, 10 foot bulk
|
| 5. |
61747
|
[2] |
KEY
|
CAS
1/2" x 2-1/2", Gib
|
| 6. |
Q3947
|
[1] |
KEY,Gib, 3/8" Sq x 1 1/2"
|
IH
|
| 7. |
700150109
|
[1] |
SPROCKET ASSY.
|
HFI
WA, double, 23 and 36 tooth
|
| 8. |
700132988
|
[1] |
SPROCKET ASSY.
|
HFI
WA 15 tooth
|
| 9. |
51200277
|
[1] |
SPROCKET ASSY.
|
CAS
IDLER 80P12
|
| 10. |
52183
|
[2] |
BUSHING
|
CAS
GAUGE 3/4" x 18, narrow rim machinery Superseded by part number: Z52183
|
| 11. |
700132524
|
[1] |
BOLT
|
HFI
DRAW WA
|
| 12. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 13. |
396-21066
|
[3] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 14. |
700132745
|
[1] |
ANGLE
|
HFI
|
| 15. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 16. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2", hardened, plain
|
| 17. |
7870322
|
[1] |
BOLT
|
CAS
3/4"-10 x 4", round head square neck bolt
|
| 18. |
52258
|
[1] |
BUSHING
|
CAS
GUAGE 1" x 14, narrow rim machinery
|
| 19. |
705566
|
[1] |
WASHER
|
IH
3/4", hardened, plain
|
| 20. |
232-53112
|
[1] |
FLANGE NUT,Flg, 3/4"-10
|
CAS
Superseded by part number: 86512372
|
| 21. |
700135548
|
[1] |
SPECIAL BOLT
|
HFI
DRAW WA
|
| 22. |
700150114
|
[1] |
SPROCKET ASSY.
|
HFI
WA, 25 tooth
|
| 23. |
700110610
|
[1] |
SPACER
|
CAS
|
| 24. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
idler, 15 tooth
|
| 25. |
413-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
