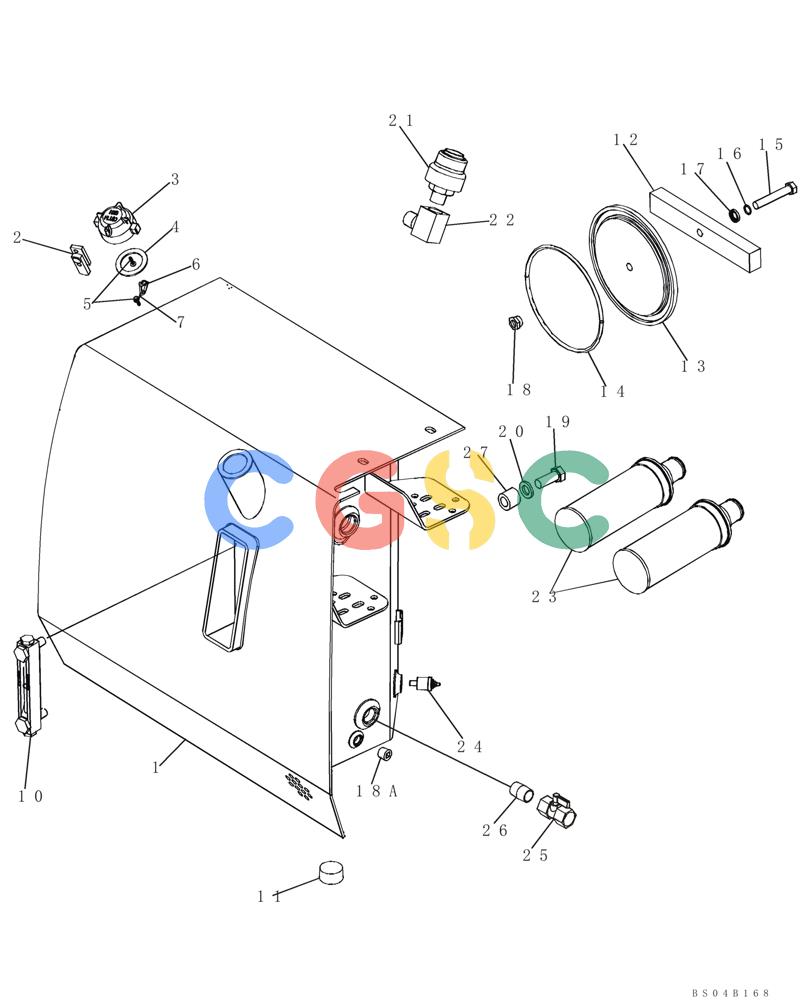

| . . | 87442425 | [1] | TANK, HYDRAULIC OIL | BURComplete; Incl. Ref 1 - 18A Superseded by part number: 87588192 |
| 1. | 87442426 | [1] | TANK, HYDRAULIC OIL | BURUnpainted; Incl. Ref 2 Superseded by part number: 87588192 |
| 2. | R46704 | [1] | BRACKET | CASTab; Fill Tube; Weld-On |
| 3. | L128669 | [1] | CAP | CASFill Tube |
| 4. | R46984 | [1] | GASKET | CAS Superseded by part number: 87557921 |
| 5. | 301-14712 | [2] | SCREW,Drive, #12 x 3/4" | CAS |
| 6. | R48634 | [1] | FASTENER | CASHook |
| 7. | R47786 | [1] | CHAIN (CE) | CAS241 mm (9-1/2 in) |
| 10. | 226456A1 | [1] | LEVEL GAUGE | CASSight; Component Parts Not Serviced Separately |
| . . | 238-6114 | [4] | O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro | CASUsed With Gauge Superseded by part number: 9626944 |
| 11. | 221-37 | [1] | PLUG | CAS1-1/4, Use With Loctite No. 592, See Below Superseded by part number: 221-847 |
| 12. | L50741 | [1] | BAR | CASHolddown |
| 13. | L128352 | [1] | COVER | CASAccess |
| 14. | 238-5442 | [1] | O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro | CAS1/4 x 7-1/4 |
| 15. | 113-2462 | [1] | BOLT,Hex, 1/2" - 13 x 3", Gr 5 | CAS |
| 16. | 238-5112 | [1] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | CAS Superseded by part number: 14457080 |
| 17. | L78045 | [1] | WASHER | CAS |
| 18. | 131-510 | [1] | LOCK NUT,1/2"-13 | CAS |
| 18A. | 217-465 | [1] | DRAIN PLUG,Hex Soc, 1/2"-14, NPTF | CASUse with Loctite No. 592, See Below |
| 19. | 814-16065 | [2] | BOLT,Hex, M16 x 2 x 65mm, Cl 8.8 | CAS Superseded by part number: 355259 |
| 20. | D44330 | [2] | SHIM,.031" Thk | CASWasher |
| 21. | R42714 | [1] | BREATHER | CASUse With Loctite No. 592, See Below |
| 22. | 221-1415 | [1] | ELBOW,90º, 3/4"-14, NPT | CASElbow, 90 deg, 3/4 PT, Use With Loctite No. 592, See Below |
| 23. | 426784A1 | [2] | FILTER STRAINER | BURStrainer, Suction; Includes 510137 O-Ring |
| . . | 510137 | [1] | O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro | NH |
| 24. | A166057 | [1] | TEMPERATURE SENDER | CASTransmission Oil Temperature; Use With Loctite No. 592 Superseded by part number: 84300765 |
| 25. | 86984713 | [1] | SHUT-OFF VALVE | BUR |
| 26. | 221-1185 | [1] | FITTING | CAS.5 x 1.125 Superseded by part number: 221-185 |
| 27. | 87440363 | [2] | SPACER | CASSpacer |
| . . | ZPX59250 | [1] | ADHESIVE | MKTNo. 592, 50 ml |
