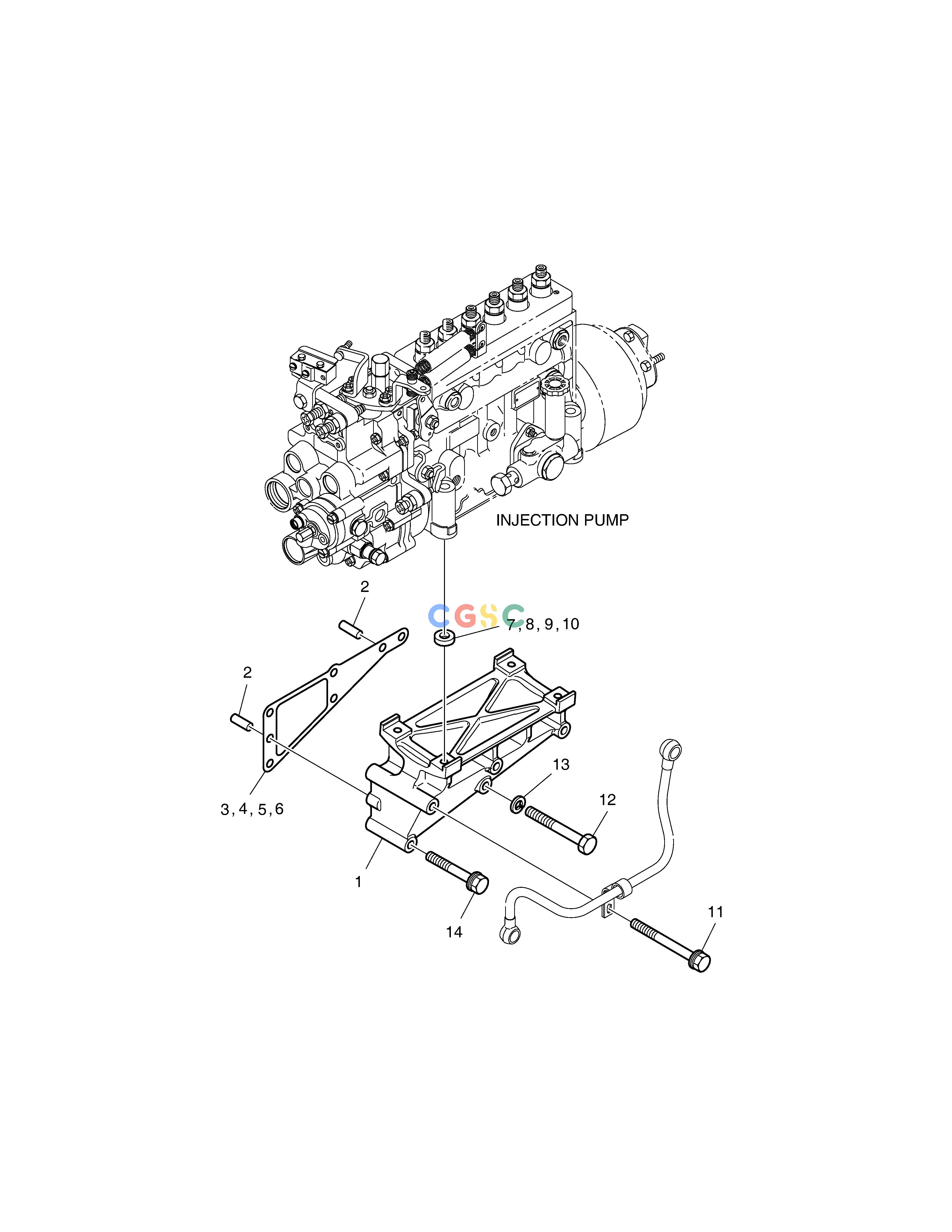

斗山零件查询INJECTION PUMP MOUNTING SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.11401-0046A
|
[1] |
BRACKET
|
|
| 10. |
65.11405-0015
|
[4] |
SHIM
|
|
| 11. |
06.01913-3234
|
[3] |
BOLT ASS`Y M10X130
|
|
| 12. |
06.01013-9226
|
[1] |
BOLT;HEX. M10X1.5X110
|
|
| 13. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 14. |
06.01913-3229
|
[1] |
BOLT ASS`Y M10X90
|
|
| 2. |
06.22022-1112
|
[2] |
PIN;DOWEL
|
|
| 3. |
65.11405-0001
|
[1] |
SHIM T=0.10
|
|
| 4. |
65.11405-0002
|
[1] |
SHIM T=0.15
|
|
| 5. |
65.11405-0003
|
[1] |
SHIM T=0.20
|
|
| 6. |
65.11405-0004
|
[1] |
SHIM T=0.50
|
|
| 7. |
65.11405-0009
|
[4] |
SHIM 0.10mm
|
|
| 8. |
65.11405-0010
|
[4] |
SHIM 0.30mm
|
|
| 9. |
65.11405-0013
|
[4] |
SHIM 0.20mm
|
|
