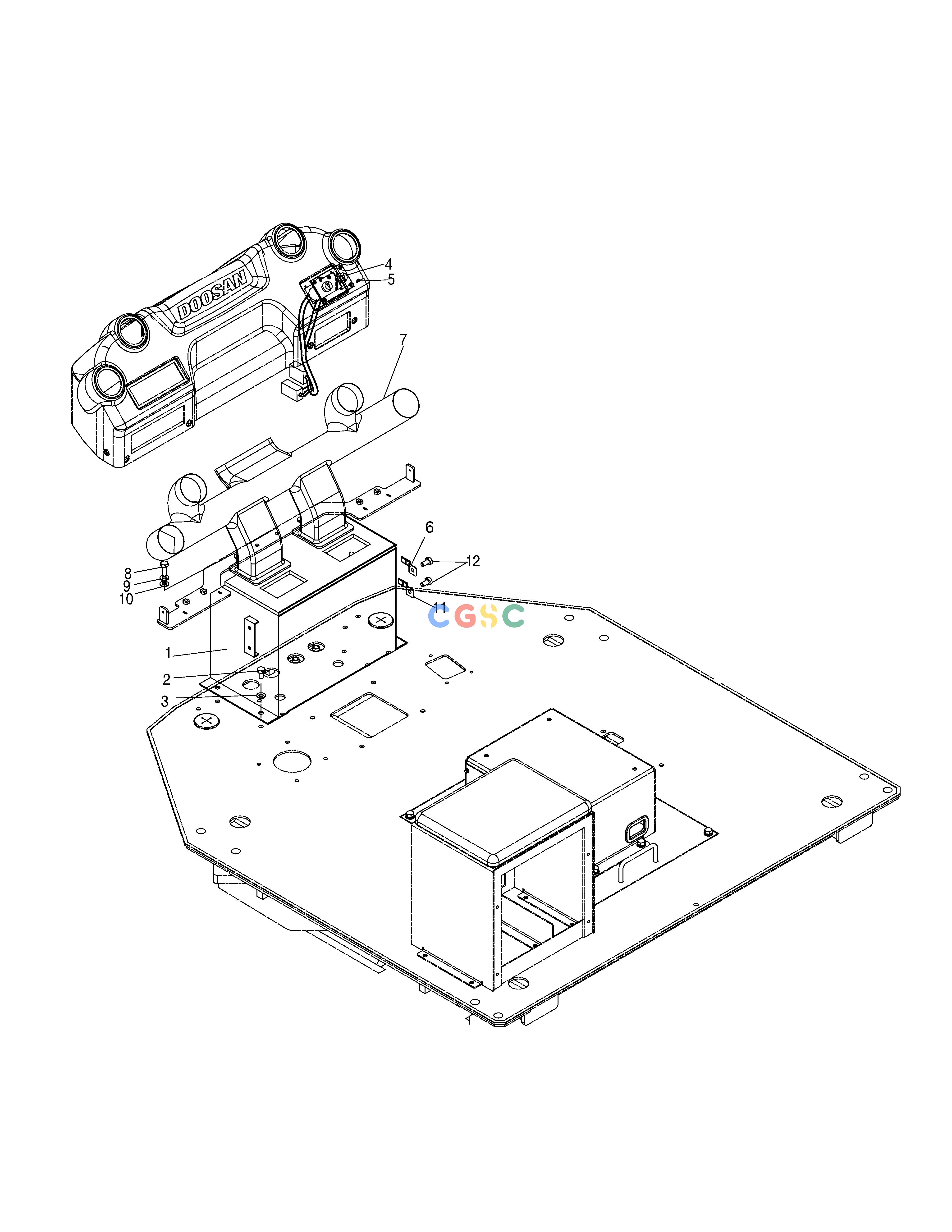

斗山零件查询AIR - CONDITIONER ASS'Y - CABIN SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300301-00031A
|
[-] |
|
|
| 1. |
400815-00006
|
[1] |
EVAPORATOR;AIR CON
|
|
| 10. |
S5010313
|
[2] |
WASHER
|
|
| 11. |
110406-01873
|
[1] |
BRACKET,HOUSING
|
|
| 12. |
S0508653
|
[2] |
BOLT
|
|
| 2. |
S0512353
|
[4] |
BOLT M10X1.5X35
|
|
| 3. |
S5010613
|
[4] |
WASHER
|
|
| 4. |
300427-00457
|
[1] |
PANEL,CONTROL;AIR CON
|
|
| 5. |
S3640353
|
[4] |
SCREW
|
|
| 6. |
110406-01874
|
[1] |
BRACKET,HOUSING
|
|
| 7. |
460103-00009A
|
[1] |
DUCT
|
|
| 8. |
S0504853
|
[2] |
BOLT M6X1.0X20
|
|
| 9. |
S5102303
|
[2] |
. WASHER
|
|
