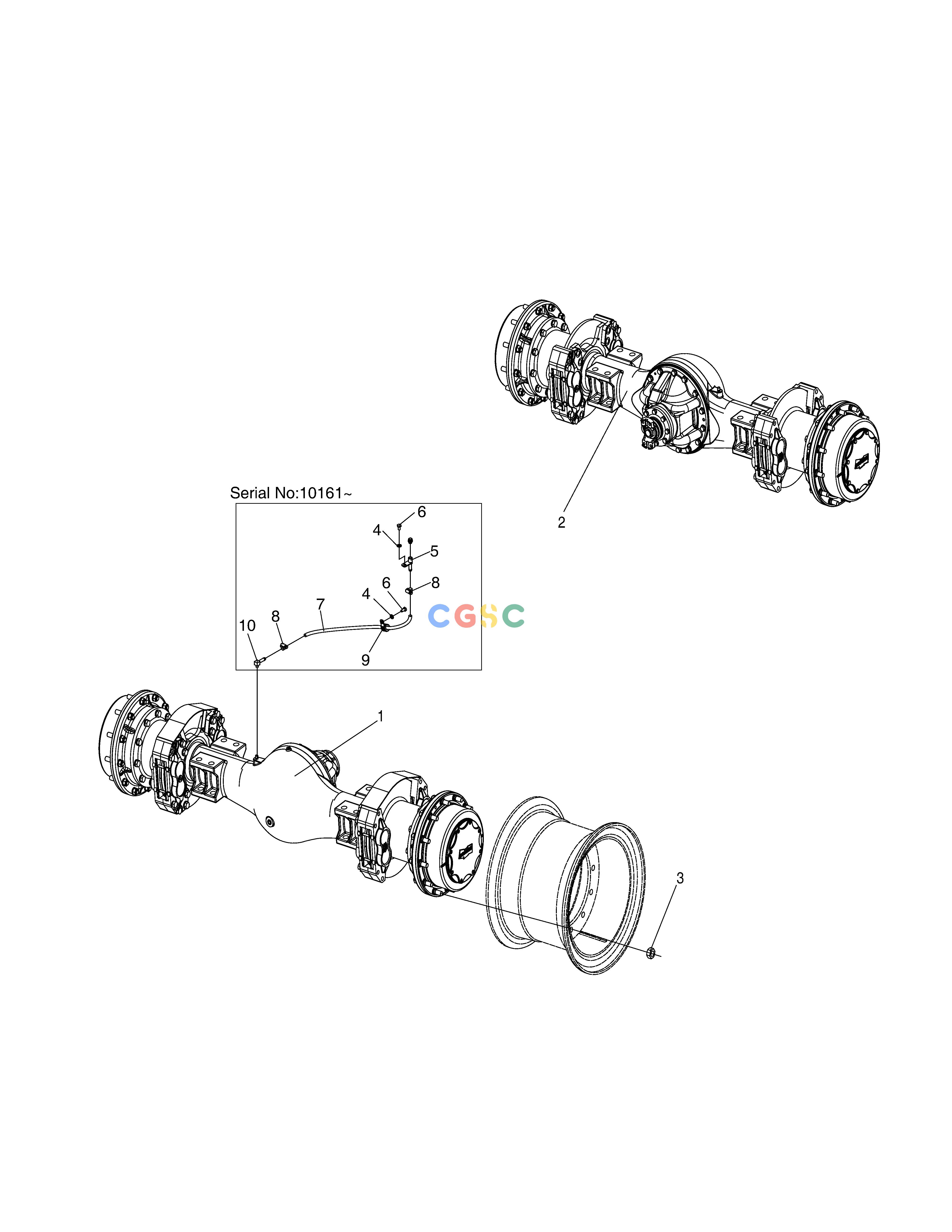

斗山零件查询AXLE & DRIVE ASS'Y SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190101-00243
|
[-] |
AXLE ASSY,DRIVE
|
|
| 1. |
190102-00092A
|
[1] |
AXLE,FRONT
|
190102-00098B
|
| 1. |
190102-00098B
|
[1] |
AXLE,FRONT
|
190102-00098C
|
| 1. |
190102-00098C
|
[1] |
AXLE,FRONT
|
190102-00098E
|
| 1. |
190102-00098E
|
[1] |
AXLE,FRONT
|
|
| 10. |
430201-01151
|
[1] |
ADAPTER
|
|
| 10. |
430201-01151A
|
[1] |
ADAPTER
|
|
| 2. |
190103-00109A
|
[1] |
AXLE,REAR
|
190103-00109B
|
| 2. |
190103-00109B
|
[1] |
AXLE,REAR
|
190103-00109C
|
| 2. |
190103-00109C
|
[1] |
AXLE,REAR
|
|
| 3. |
120305-00010
|
[48] |
|
|
| 4. |
S5000513
|
[2] |
. WASHER;PLAIN
|
|
| 5. |
430201-01152A
|
[1] |
ADAPTER
|
|
| 6. |
S0508653
|
[2] |
BOLT
|
|
| 7. |
420101-01081
|
[1] |
HOSE,AIR
|
|
| 8. |
S8450012
|
[2] |
CLAMP
|
|
| 9. |
124-00208D2
|
[1] |
CLAMP
|
|
