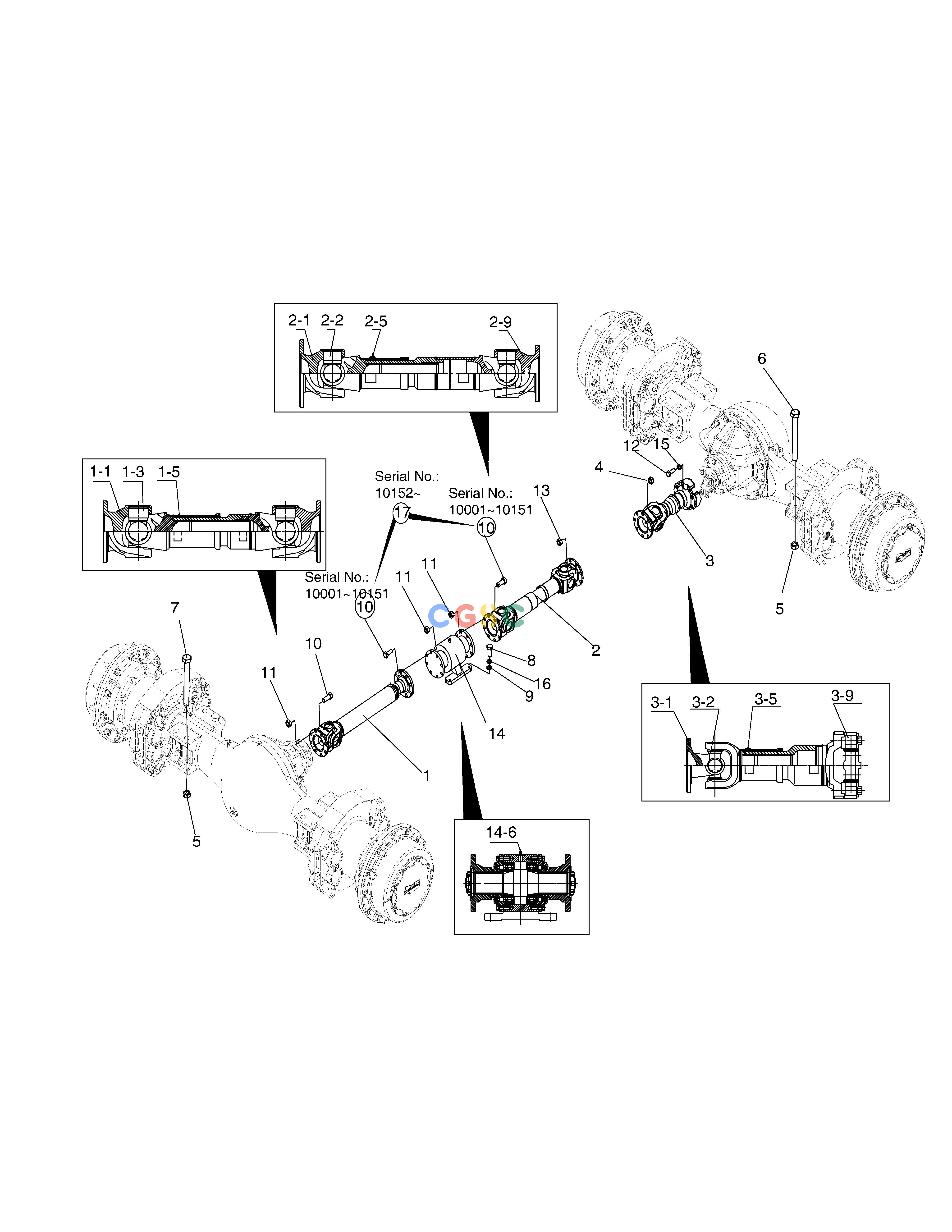

斗山零件查询AXLE & DRIVE SHAFT-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130712-00745
|
[-] |
|
|
| 1. |
130712-01053A
|
[1] |
SHAFT,FRONT
|
|
| 1. |
130712-01684
|
[1] |
SHAFT,FRONT
|
|
| 1. |
130712-01053
|
[1] |
SHAFT,FRONT
|
130712-01053A
|
| 1-1. |
230106-00180
|
[2] |
. FORK
|
|
| 1-3. |
130712-01016
|
[2] |
. SHAFT ASSY,UNIVERSAL
|
|
| 1-5. |
400601-00025
|
[1] |
. CUP,OIL
|
|
| 10. |
S0760563
|
[24] |
BOLT
|
|
| 10. |
S0760563
|
[8] |
BOLT
|
|
| 11. |
120311-00162
|
[24] |
NUT,LOCK
|
|
| 11. |
120311-00162
|
[16] |
NUT,LOCK
|
|
| 12. |
S0760763
|
[4] |
BOLT
|
|
| 13. |
120311-00163
|
[8] |
NUT,LOCK
|
|
| 14. |
130712-01052B
|
[1] |
SHAFT,BEARING
|
|
| 14. |
130712-01683
|
[1] |
SHAFT,BEARING
|
|
| 14-6. |
400601-00027
|
[1] |
. CUP,OIL
|
|
| 15. |
120804-00023
|
[4] |
WASHER,HARD
|
|
| 16. |
S5102803
|
[4] |
WASHER
|
|
| 16. |
S5103103
|
[4] |
WASHER
|
|
| 17. |
S0760763
|
[8] |
BOLT
|
|
| 2. |
130712-01054
|
[1] |
SHAFT,MIDDLE
|
130712-01054A
|
| 2. |
130712-01054A
|
[1] |
SHAFT,MIDDLE
|
|
| 2. |
130712-01685
|
[1] |
SHAFT,MIDDLE
|
|
| 2-1. |
230106-00185
|
[1] |
. FORK
|
|
| 2-2. |
130712-01016
|
[2] |
. SHAFT ASSY,UNIVERSAL
|
|
| 2-5. |
400601-00026
|
[1] |
. CUP,OIL
|
|
| 2-9. |
230106-00180
|
[1] |
. FORK
|
|
| 3. |
130712-00744B
|
[1] |
SHAFT,REAR
|
|
| 3-1. |
230106-00184
|
[1] |
|
|
| 3-2. |
130712-01130
|
[1] |
|
|
| 3-5. |
400601-00026
|
[1] |
. CUP,OIL
|
|
| 3-9. |
130712-01087
|
[1] |
|
|
| 4. |
120311-00155
|
[8] |
NUT,LOCK
|
|
| 5. |
120311-00090
|
[16] |
NUT,LOCK
|
|
| 6. |
120112-00722
|
[8] |
|
|
| 7. |
120112-00721
|
[8] |
|
|
| 8. |
S0762863
|
[4] |
BOLT,HEX
|
|
| 8. |
S0527563
|
[4] |
BOLT,HEX
|
|
| 9. |
S5010813
|
[4] |
WASHER;PLAIN
|
|
| 9. |
S5011113
|
[4] |
. WASHER
|
|
