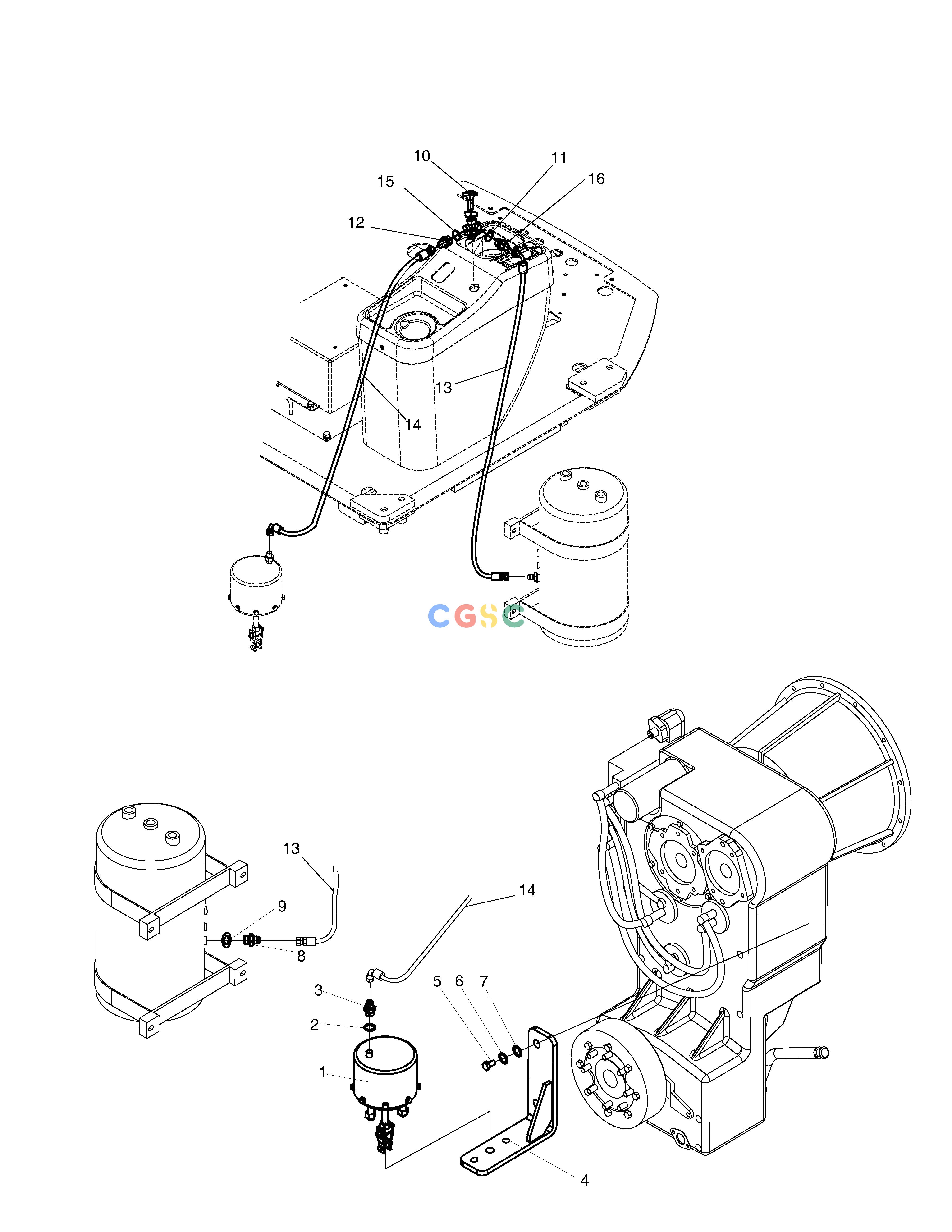

斗山零件查询BRAKE ASS'Y - PARKING-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
961 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130104-00138
|
[-] |
|
|
| 1. |
400804-00035A
|
[1] |
|
|
| 10. |
K1054646
|
[1] |
VALVE,CONTROL
|
|
| 11. |
K1041083D4
|
[1] |
SEAL RING
|
|
| 12. |
430201-00178
|
[1] |
|
|
| 13. |
420101-00095
|
[1] |
|
|
| 14. |
420108-00564
|
[1] |
|
|
| 15. |
K1041083D5
|
[1] |
WASHER
|
|
| 16. |
430201-00084A
|
[1] |
|
|
| 2. |
K1041083D5
|
[1] |
WASHER
|
|
| 3. |
430201-00178
|
[1] |
|
|
| 4. |
110406-01762
|
[1] |
|
|
| 5. |
S0527563
|
[2] |
BOLT,HEX
|
|
| 6. |
S5101103
|
[2] |
WASHER;SPRING
|
|
| 7. |
S5011113
|
[2] |
. WASHER
|
|
| 8. |
430201-00084A
|
[1] |
|
|
| 9. |
K1041083D4
|
[1] |
SEAL RING
|
|
