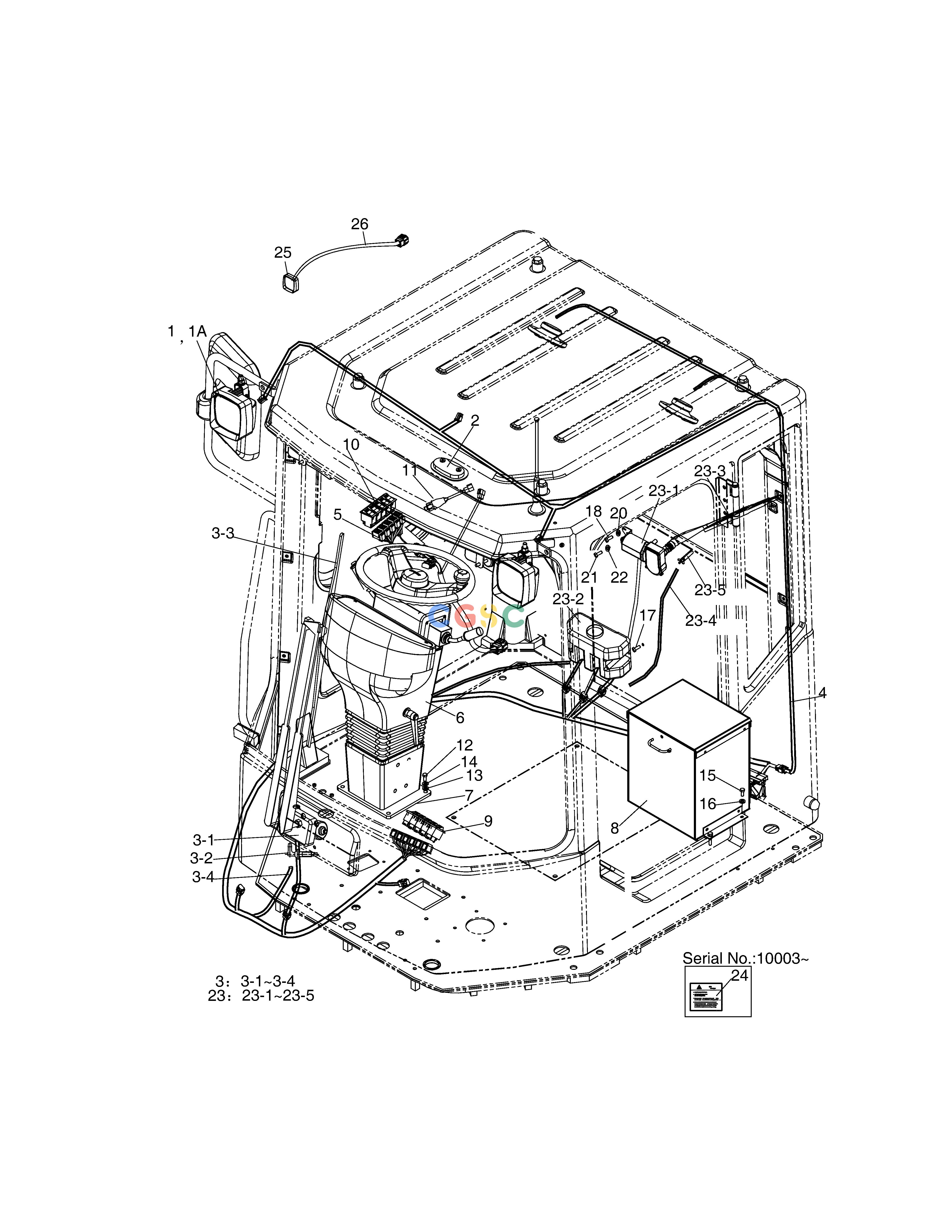

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01502C
|
[-] |
ELECTRIC ASSY;CABIN;ZF T/M
|
|
| -. |
300619-01502G
|
[-] |
ELECTRIC ASSY;CABIN;ZF T/M
|
|
| -. |
300619-01502H
|
[-] |
ELECTRIC ASSY;ZF T/M
|
|
| 1. |
301005-01417
|
[2] |
LAMP;WORK
|
|
| 1. |
301005-00100
|
[2] |
LAMP,WORKING
|
|
| 10. |
301405-00100A
|
[1] |
SWITCH
|
|
| 11. |
301413-00089
|
[2] |
SWITCH,PRESSURE;AIR
|
|
| 12. |
S0512363
|
[4] |
BOLT
|
|
| 13. |
S5102603
|
[4] |
. WASHER
|
|
| 14. |
S5010613
|
[4] |
WASHER
|
|
| 15. |
S0504653
|
[4] |
. BOLT
|
|
| 16. |
S5010313
|
[4] |
WASHER
|
|
| 17. |
S2004653
|
[2] |
BOLT,SOCKET HEAD WITH WASHER
|
|
| 18. |
S0508653
|
[1] |
BOLT
|
|
| 1A. |
300710-00002
|
[2] |
. BULB,HALOGEN;WORK LAMP
|
|
| 1A. |
300710-00006
|
[2] |
. BULB,HALOGEN
|
|
| 2. |
534-00079
|
[1] |
ROOM LAMP
|
|
| 20. |
S5010513
|
[1] |
WASHER
|
|
| 21. |
S3458583
|
[1] |
SCREW M4X0.7X12
|
|
| 22. |
S5010113
|
[1] |
WASHER,PLAIN
|
|
| 23. |
220210-00493B
|
[1] |
WIPER;REAR
|
|
| 23-1. |
220210-00494
|
[1] |
. WIPER;MOTOR
|
|
| 23-2. |
450110-00006
|
[1] |
. TANK,WATER;WIPER
|
|
| 23-3. |
220202-00020
|
[1] |
. BLADE,WIPER;REAR
|
|
| 23-4. |
420109-00328
|
[1] |
. HOSE,WATER;REAR WIPER
|
|
| 23-5. |
430201-00548
|
[1] |
. ADAPTER;REAR WIPER
|
|
| 24. |
950209-03966A
|
[1] |
PLATE,NAME
|
|
| 25. |
970210-00053
|
[1] |
DISPLAY
|
|
| 26. |
310207-02630A
|
[1] |
HARNESS,FRONT FRAME
|
|
| 3. |
220210-00491A
|
[1] |
WIPER
|
|
| 3-1. |
220210-00492
|
[1] |
. WIPER;MOTOR
|
|
| 3-2. |
K1053839
|
[1] |
. ADAPTER
|
|
| 3-3. |
220202-00016
|
[1] |
. BLADE,WIPER
|
|
| 3-4. |
420109-00241
|
[1] |
. HOSE,WATER
|
|
| 4. |
310207-01764C
|
[1] |
HARNESS,CABIN;DL507
|
|
| 4. |
310207-01764B
|
[1] |
HARNESS,CABIN
|
|
| 5. |
310207-01765A
|
[1] |
HARNESS,SWITCH BOX
|
|
| 6. |
300411-00033B
|
[1] |
CONSOLE ASSY;ZF
|
300411-00033C
|
| 6. |
300411-00033C
|
[1] |
CONSOLE ASSY
|
|
| 7. |
180304-00006A
|
[1] |
CUSHION
|
|
| 8. |
300706-00507B
|
[1] |
BOX ASSY,ELECTRIC
|
300706-00507C
|
| 8. |
300706-00507C
|
[1] |
BOX ASSY,ELECTRIC
|
|
| 9. |
301405-00062C
|
[1] |
SWITCH
|
|
