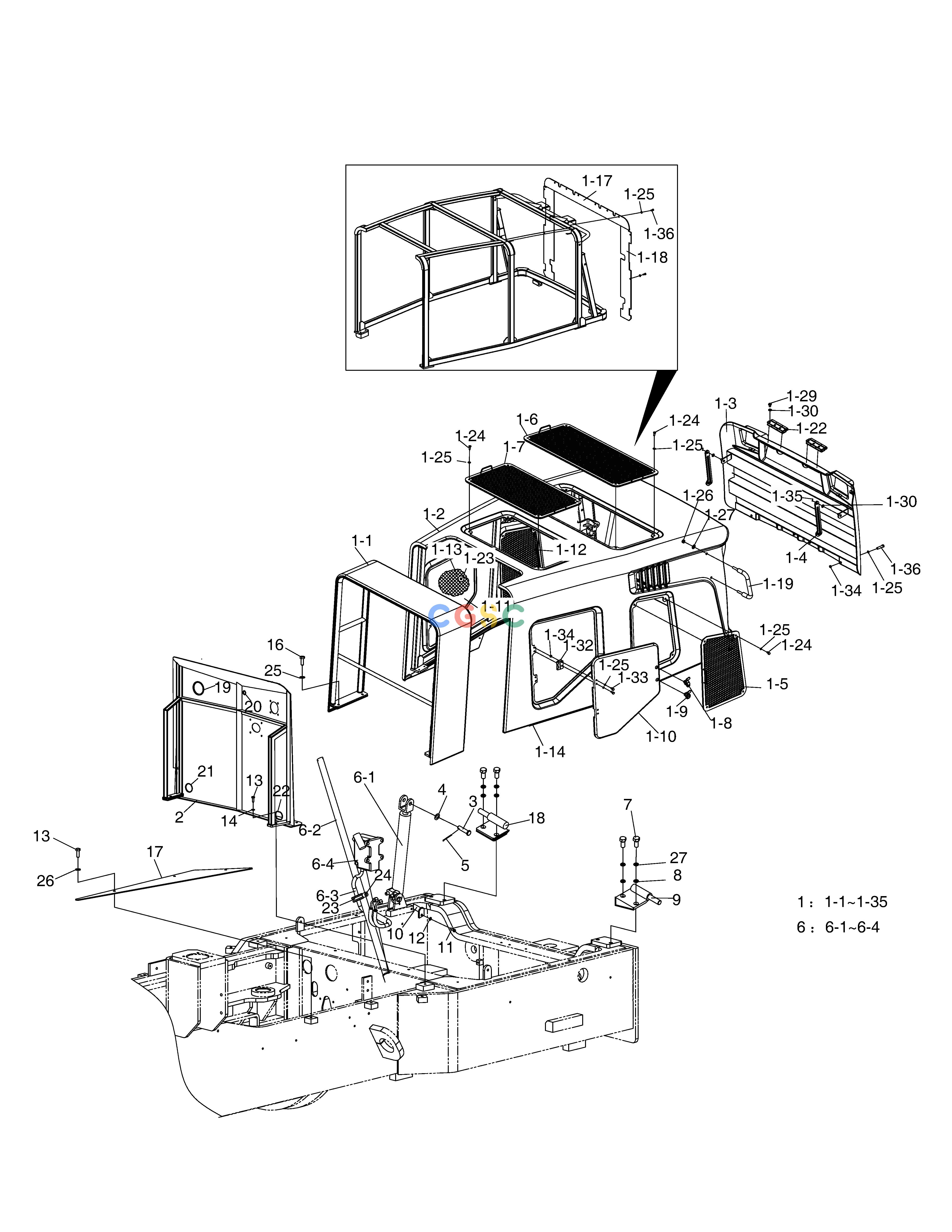

斗山零件查询ENGINE COVER ASS'Y SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
402 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110506-00141
|
[-] |
|
|
| 1. |
110506-00135C
|
[1] |
COVER ASSY
|
|
| 1-1. |
110506-00136C
|
[1] |
. COVER ASSY
|
|
| 1-10. |
101591-00015
|
[1] |
|
|
| 1-11. |
101591-00016
|
[1] |
|
|
| 1-12. |
110517-00503A
|
[1] |
|
|
| 1-13. |
180309-00097
|
[1] |
|
|
| 1-14. |
180308-00319
|
[2] |
|
|
| 1-17. |
180308-00300A
|
[1] |
|
|
| 1-18. |
180308-00305B
|
[2] |
. RUBBER
|
|
| 1-19. |
110925-00109
|
[2] |
|
|
| 1-2. |
110506-00137C
|
[1] |
. COVER ASSY
|
|
| 1-22. |
110927-00005
|
[2] |
. HINGE,DOOR;CABIN
|
|
| 1-23. |
K1054913
|
[14] |
. HOLDER
|
|
| 1-24. |
S0509363
|
[34] |
BOLT
|
|
| 1-25. |
S5010513
|
[50] |
WASHER
|
|
| 1-26. |
S4012703
|
[4] |
NUT M12X1.25
|
|
| 1-27. |
DS0401066
|
[4] |
WASHER,PLAIN
|
|
| 1-29. |
S0512063
|
[12] |
WASHER
|
|
| 1-3. |
101524-00068B
|
[1] |
. GRILL ASSY
|
|
| 1-30. |
S5010613
|
[8] |
WASHER
|
|
| 1-32. |
110927-00207
|
[4] |
|
|
| 1-33. |
S0508853
|
[16] |
. BOLT
|
|
| 1-34. |
S4012533
|
[16] |
NUT
|
|
| 1-35. |
S5735471
|
[2] |
PIN;SPLIT
|
|
| 1-36. |
S2215363
|
[2] |
. BOLT,HEX SOCKET
|
|
| 1-4. |
101580-00114
|
[1] |
. SLIDER
|
|
| 1-5. |
110517-00502A
|
[1] |
|
|
| 1-6. |
110508-08638B
|
[1] |
. COVER
|
|
| 1-7. |
110508-08639A
|
[1] |
|
|
| 1-8. |
220207-00019
|
[2] |
.. LOCK,DOOR;NO KEY
|
|
| 1-9. |
220207-00028
|
[2] |
.. LOCK,DOOR
|
|
| 10. |
K1040784A
|
[1] |
SHAFT
|
|
| 11. |
S0504653
|
[1] |
. BOLT
|
|
| 12. |
S5010303
|
[1] |
WASHER
|
|
| 13. |
S0509053
|
[11] |
. BOLT
|
|
| 14. |
DS0401231
|
[11] |
WASHER,PLAIN
|
|
| 16. |
S0512253
|
[4] |
BOLT M10X1.5X30
|
|
| 17. |
250111-00275A
|
[2] |
|
|
| 18. |
130712-00746
|
[1] |
|
|
| 19. |
180308-00321
|
[1] |
|
|
| 2. |
250101-00041C
|
[1] |
PLATE ASSY,BAFFLE
|
250101-00041E
|
| 2. |
250101-00041E
|
[1] |
PLATE ASSY,BAFFLE
|
250101-00041G
|
| 2. |
250101-00041G
|
[1] |
PLATE ASSY,BAFFLE
|
|
| 20. |
180308-00325A
|
[1] |
|
|
| 21. |
180308-00323
|
[1] |
|
|
| 22. |
180308-00324
|
[1] |
|
|
| 23. |
124-00209D4
|
[1] |
CLIP
|
|
| 24. |
S0508653
|
[1] |
BOLT
|
|
| 25. |
DS0401190
|
[4] |
WASHER
|
|
| 26. |
DS0401231
|
[11] |
WASHER,PLAIN
|
|
| 27. |
S5102903
|
[4] |
WASHER
|
|
| 3. |
120501-01314
|
[1] |
PIN
|
|
| 4. |
S5010813
|
[2] |
WASHER;PLAIN
|
|
| 5. |
S5735611
|
[1] |
PIN;SPLIT
|
|
| 6. |
300628-00198A
|
[1] |
MODULE,HYDRAULIC
|
|
| 6-1. |
400323-00175A
|
[1] |
. CYLINDER
|
|
| 6-2. |
420105-00595
|
[2] |
|
|
| 6-3. |
K1040806
|
[1] |
. HOLDER
|
|
| 6-4. |
400916-00052
|
[1] |
. PUMP
|
|
| 7. |
S0521263
|
[4] |
BOLT M16X2.0X30
|
|
| 8. |
DS0401213
|
[4] |
WASHER,PLAIN
|
|
| 9. |
130712-00747
|
[1] |
|
|
