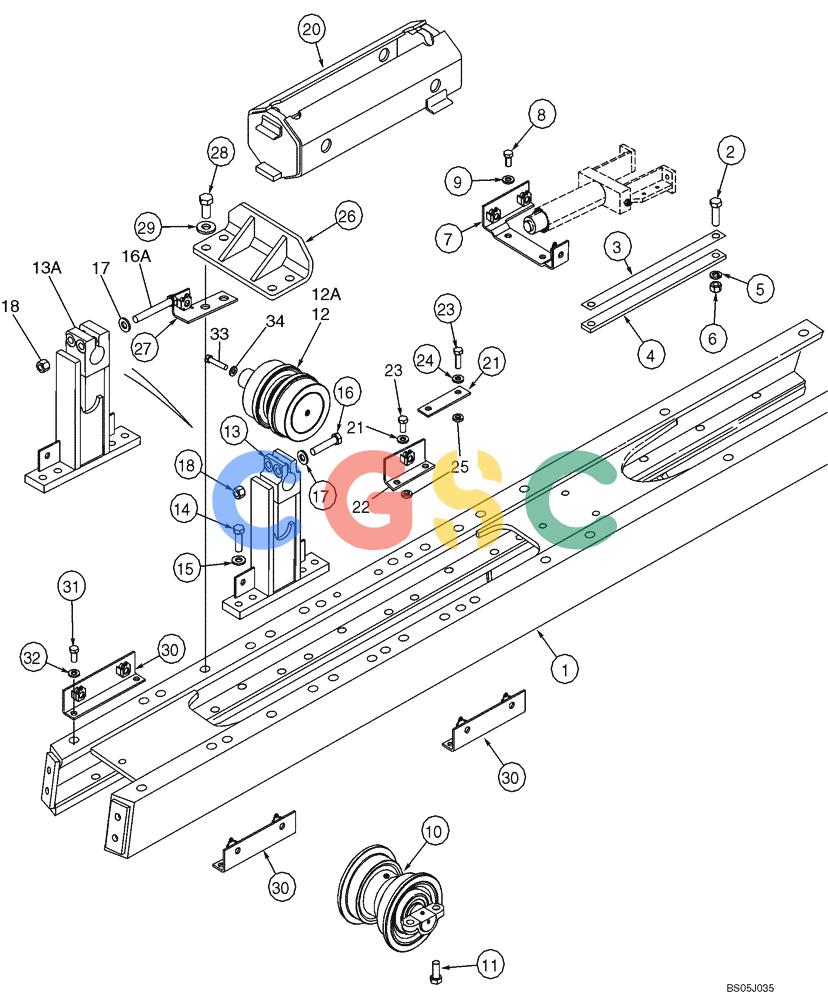

| 1. | 87422992 | [2] | FRAME | BURTrack Superseded by part number: 87566821 |
| 2. | 413-1040 | [8] | BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5 | CAS Superseded by part number: 280233 |
| 3. | CASR32491 | [1] | SHIM | CASSHIM |
| 4. | 419385A1 | [4] | BAR | CAS |
| 5. | 492-11062 | [8] | BEARING WASHER,5/8" | CAS Superseded by part number: 86729275 |
| 6. | 425-1010 | [8] | NUT,5/8"-11, G5 | CAS Superseded by part number: 280374 |
| 7. | 431877A1 | [1] | BRACKET | BURRight-Hand; Track Adjuster |
| 7A. | 431795A1 | [1] | BRACKET | BURLeft-Hand; Track Adjuster; Not Illustrated |
| 8. | 413-816 | [4] | BOLT,Hex, 1/2" - 13 x 1", Gr 5 | CAS Superseded by part number: 87909 |
| 9. | 496-21053 | [4] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| 10. | 86987766 | [12] | ROLLER ASSY. | CASSee Figure 05-07 Superseded by part number: 87581582 |
| 11. | 409-91248 | [48] | BOLT,Hex, 3/4" - 10 x 3", Gr 5 | BRR3/4 x 3 |
| 12. | 86987739 | [2] | ROLLER, TRACK | CASCarrier; See Figure 05-07; Solid Roller Shaft, If Used Superseded by part number: 87314691 |
| 12A. | 87353982 | [2] | ROLLER | BURWith Hole In Roller Shaft; Component Parts Not Serviced Separately; If Used; Replaces 87314690 |
| 13. | 86987740 | [2] | BRACKET, SUPPORTING | CASNo Longer Used, Order 87353994, REF 13A Superseded by part number: 87353994 |
| 13A. | 87353994 | [2] | BRACKET, SUPPORTING | BURReplaces 87330864 |
| 14. | 426-1032 | [8] | BOLT,Hex, 5/8" - 11 x 2", Gr 8 | CAS5/8 x 2 Superseded by part number: 86508732 |
| 15. | 496-21066 | [8] | WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk | CAS Superseded by part number: 5122064 |
| 16. | 426-1048 | [4] | BOLT,Hex, 5/8" - 11 x 3", Gr 8 | CAS5/8 x 3; Used With Ref 13, 86987740 Bracket |
| 16A. | 426-1064 | [4] | BOLT,Hex, 5/8" - 11 x 4", Gr 8 | CASUsed with Ref 13A 87353994 and 87330864 Brackets Superseded by part number: 9804395 |
| 18. | 232-41410 | [4] | LOCK NUT,5/8"-11, GC | CAS Superseded by part number: 85700693 |
| 20. | 419386A1 | [2] | HOUSING ASSY. | CASRecoil; Component Parts Not Serviced Separately |
| 21. | 419387A1 | [2] | STRAP | CASPlate |
| 22. | 433162A1 | [2] | BRACKET | BUR |
| 23. | 413-820 | [8] | BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5 | CAS Superseded by part number: 87670, 72187215 |
| 25. | R24323 | [8] | WASHER | CAS |
| 26. | 419391A2 | [2] | BRACKET | CASStop; Recoil |
| 27. | 433564A1 | [1] | BRACKET | BURRight-Hand |
| 27A. | 433159A1 | [1] | BRACKET | BURLeft-Hand; Not Illustrated |
| 28. | 426-1228 | [8] | BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8 | CAS3/4 x 1-3/4 Superseded by part number: 86632560 |
| 29. | 496-11081 | [8] | WASHER,13/16" x 1 1/2" x .134", HDN | CAS13/16 x 1-3/4 x 7/32 Superseded by part number: 394632 |
| 30. | 430453A1 | [6] | BRACKET | BUR |
| 34. | 495-91167 | [1] | WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk | CAS17/32 x 2 x 1/8 ; Used With REF 12A, 87314690 Roller |
