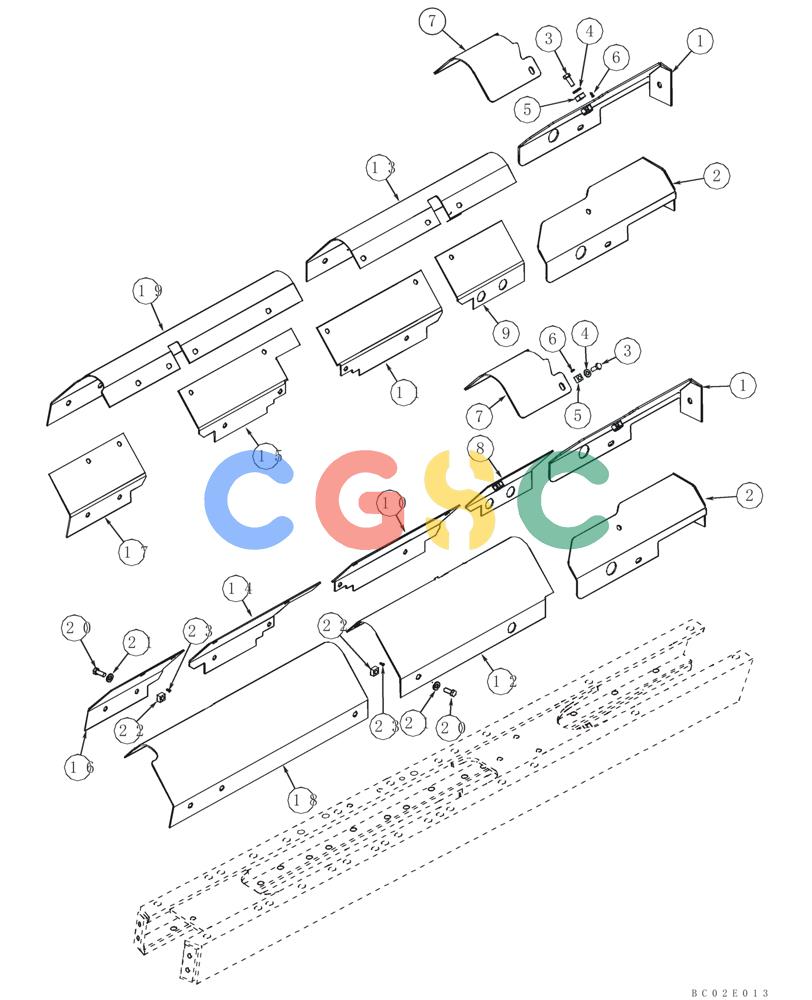

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (05-02) - FRAME, TRACK - COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
604 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 86987784 | [2] | COVER ASSY | BURIdler; Left-Hand |
| 2. | 86987785 | [2] | COVER ASSY | BURIdler; Right-Hand |
| 3. | 413-820 | [8] | BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5 | CAS Superseded by part number: 87670, 72187215 |
| 4. | 496-21053 | [8] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| 5. | 129-857 | [4] | SQUARE NUT,Sq, 1/2"-13 | CAS |
| 6. | 336371A1 | [4] | PIN | CASNut Retainer |
| 7. | 86987765 | [2] | COVER ASSY | BURIdler Superseded by part number: 87566815 |
| 8. | 86987788 | [1] | COVER ASSY | BURRight-Hand; Inner, Front Superseded by part number: 87594354 |
| 9. | 86987787 | [1] | COVER ASSY | BURLeft-Hand; Inner, Front Superseded by part number: 87594349 |
| 10. | 86987781 | [1] | COVER ASSY | BURRight-Hand; Inner, Mid Front Superseded by part number: 87594353 |
| 11. | 86987780 | [1] | COVER ASSY | BURLeft-Hand; Inner, Mid Front Superseded by part number: 87594348 |
| 12. | 86987783 | [1] | COVER ASSY | BURRight-Hand; Outer, Front Superseded by part number: 87594356 |
| 13. | 86987782 | [1] | COVER ASSY | BURLeft-Hand; Outer, Front Superseded by part number: 87594351 |
| 14. | 86987777 | [1] | COVER ASSY | BURRight-Hand; Inner, Mid Rear Superseded by part number: 87594352 |
| 15. | 86987776 | [1] | COVER ASSY | BURLeft-Hand; Inner, Mid Rear Superseded by part number: 87594347 |
| 16. | 86987757 | [1] | COVER ASSY | BURRight-Hand; Inner, Rear Superseded by part number: 87591656 |
| 17. | 86987756 | [1] | COVER ASSY | BURLeft-Hand; Inner, Rear Superseded by part number: 87591650 |
| 18. | 86987779 | [1] | COVER ASSY | BURRight-Hand; Outer, Rear Superseded by part number: 87594355 |
| 19. | 86987778 | [1] | COVER ASSY | BURLeft-Hand; Outer, Rear Superseded by part number: 87594350 |
