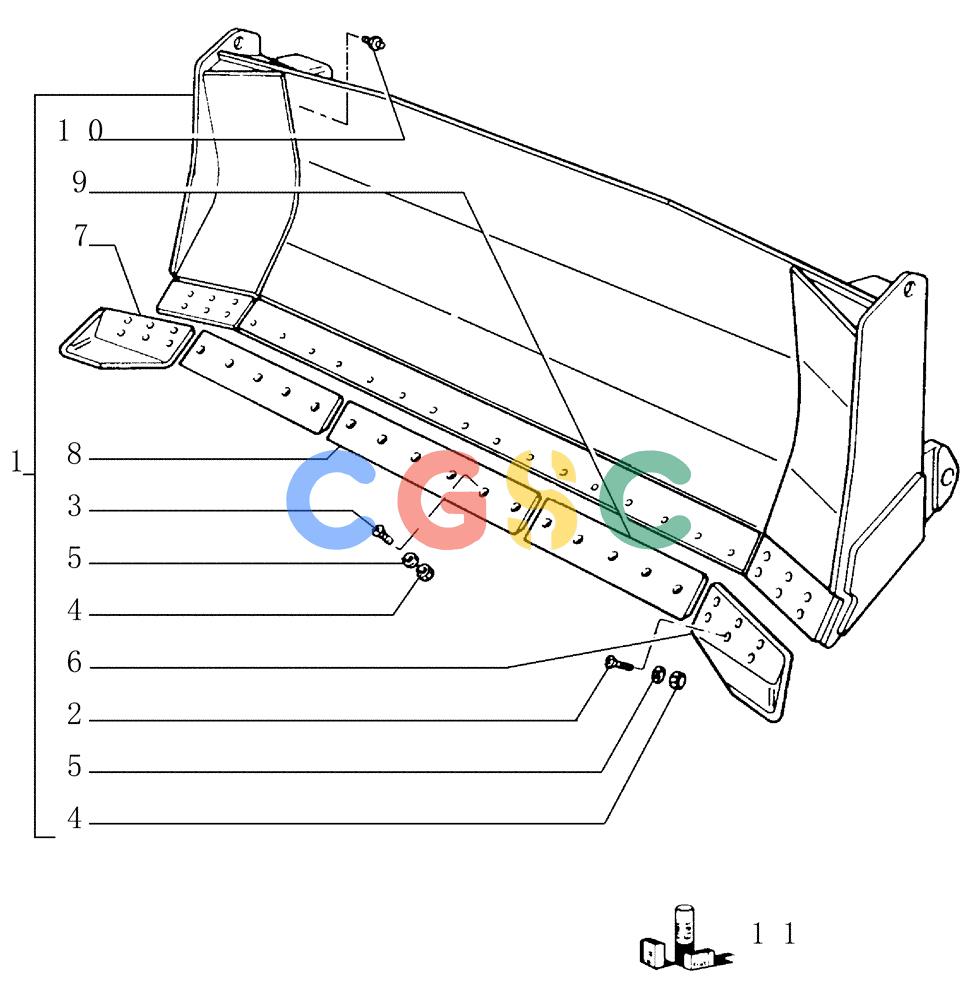

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.468[01]) - SEMI-U MOLDBOARD (HSU) - OPTIONAL CODE 76029239 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76029239 | [1] | DOZER BLADE | LEC- ASSY |
| 2. | 8282270 | [12] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 3. | 8273211 | [15] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
| 4. | 86015195 | [27] | NUT,M20 x 1.5, Cl 10 | RAC |
| 5. | 14497131 | [27] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 6. | 76040465 | [1] | CUTTING EDGE | LEC- SIDE LEFT IN ALTERNATIVE Superseded by part number: 76005121 |
| 6. | 76005121 | [1] | CUTTING EDGE | LEC- SIDE LEFT IN ALTERNATIVE |
| 7. | 76040464 | [1] | CUTTING EDGE | LEC- SIDE RIGHT IN ALTERNATIVE Superseded by part number: 76005120 |
| 7. | 76005120 | [1] | CUTTING EDGE | LEC- SIDE RIGHT IN ALTERNATIVE |
| 8. | 79091502 | [1] | CUTTING EDGE | LEC |
| 9. | 79091503 | [2] | CUTTING EDGE | LEC |
| 10. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 11. | 76035852 | [1] | MOLDBOARD | NH- MOLDBOARD (HSU) |
