纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.469[01]) - STRAIGHT MOLDBOARD (HS) - OPTIONAL CODE 76031491 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
286 次

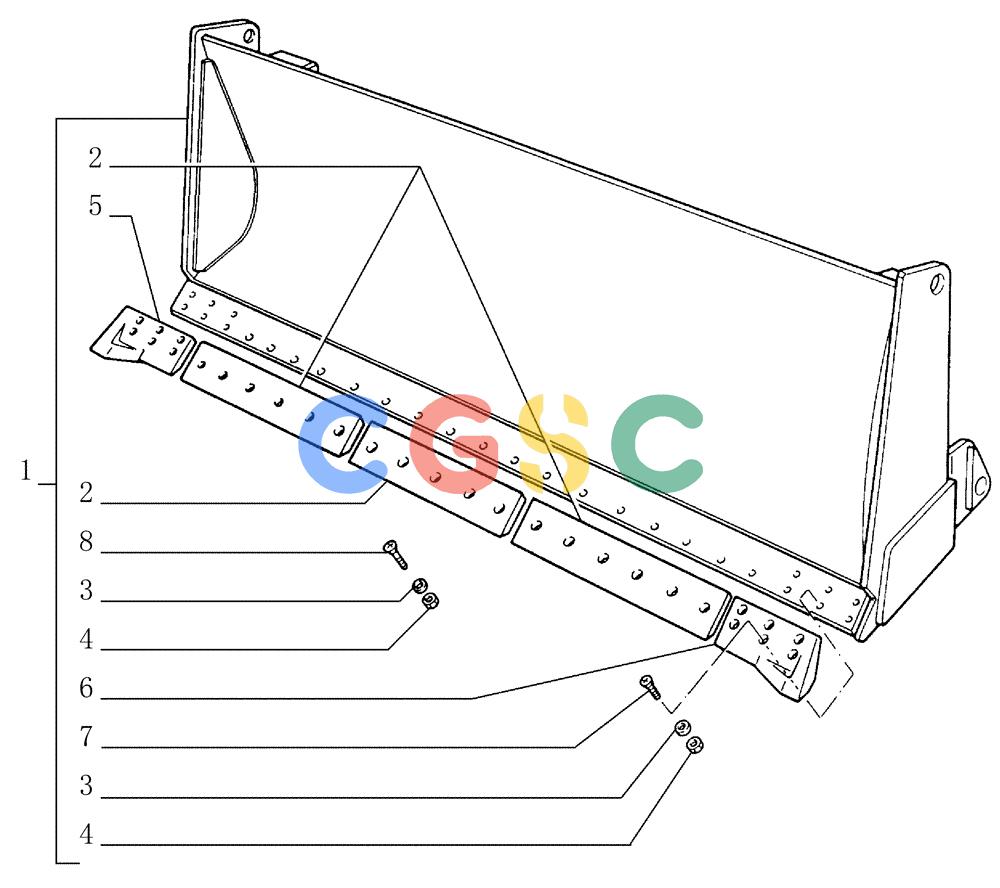

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76031491 | [1] | MOLDBOARD | NHASSY |
| 2. | 76005429 | [3] | CUTTING EDGE,Bolt On, Double Edged, 5 Hole, 200mm W x 756mm L | LEC |
| 3. | 14497131 | [27] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 4. | 86015195 | [27] | NUT,M20 x 1.5, Cl 10 | RAC |
| 5. | 8297646 | [1] | CUTTING EDGE | LEC- RIGHT Superseded by part number: 76015476 |
| 6. | 8297645 | [1] | CUTTING EDGE | LEC- LEFT Superseded by part number: 76015477 |
| 7. | 8282270 | [12] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 8. | 8273211 | [15] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
