纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.470[01]) - TILT CYLINDER - FRONT IMPLEMENT - OPTIONAL CODE 76028815 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
460 次

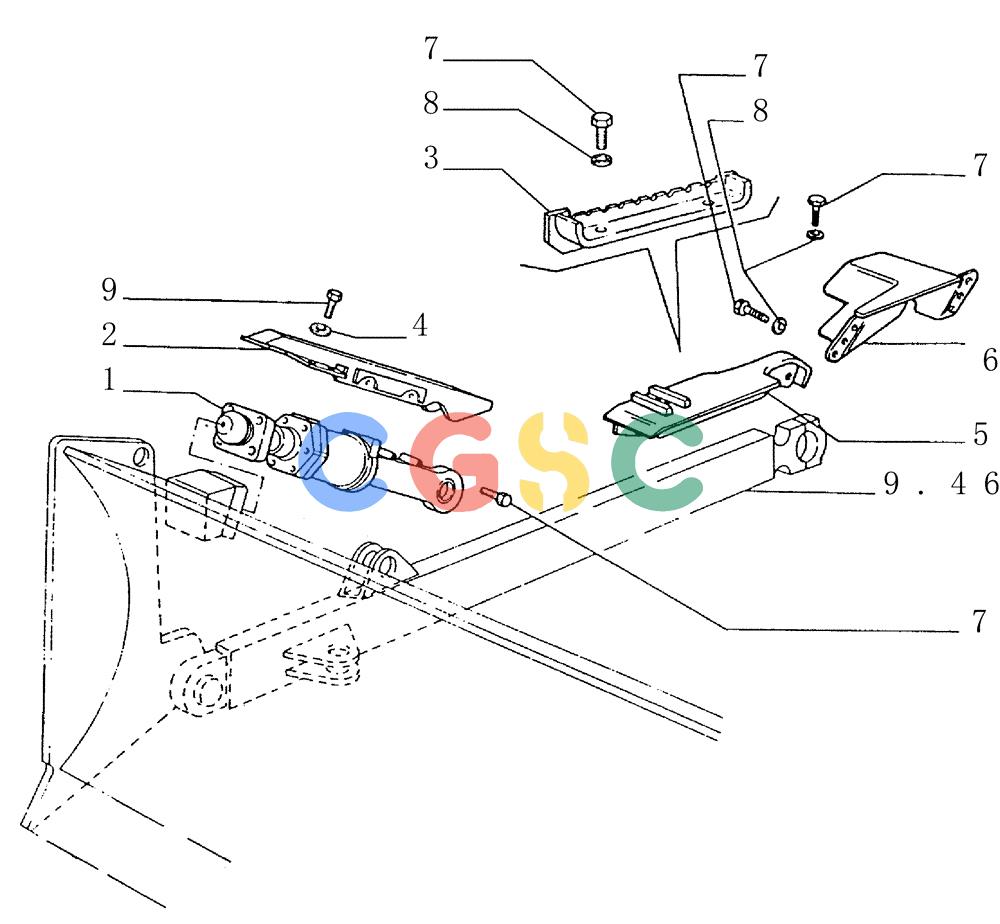

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041029 | [1] | OPERATING CYLINDER,Double Acting, 63mm Rod, 140mm Stroke | LEC- ASSY SEE TAV.3 |
| 2. | 76029405 | [1] | GUARD | LEC |
| 3. | 79089245 | [2] | FOOTREST | LEC Superseded by part number: 76089488 |
| 4. | 70922465 | [4] | WASHER,0.4" ID x 0.81" OD x 0.12" Thk | CMI |
| 5. | 76029402 | [1] | GUARD | LEC |
| 6. | 76029407 | [1] | GUARD | LEC |
| 7. | 11112431 | [18] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 8. | 12648531 | [18] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 9. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
