纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.522[01]) - RIPPER (PD) - OPTIONAL CODE 76030342 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
935 次

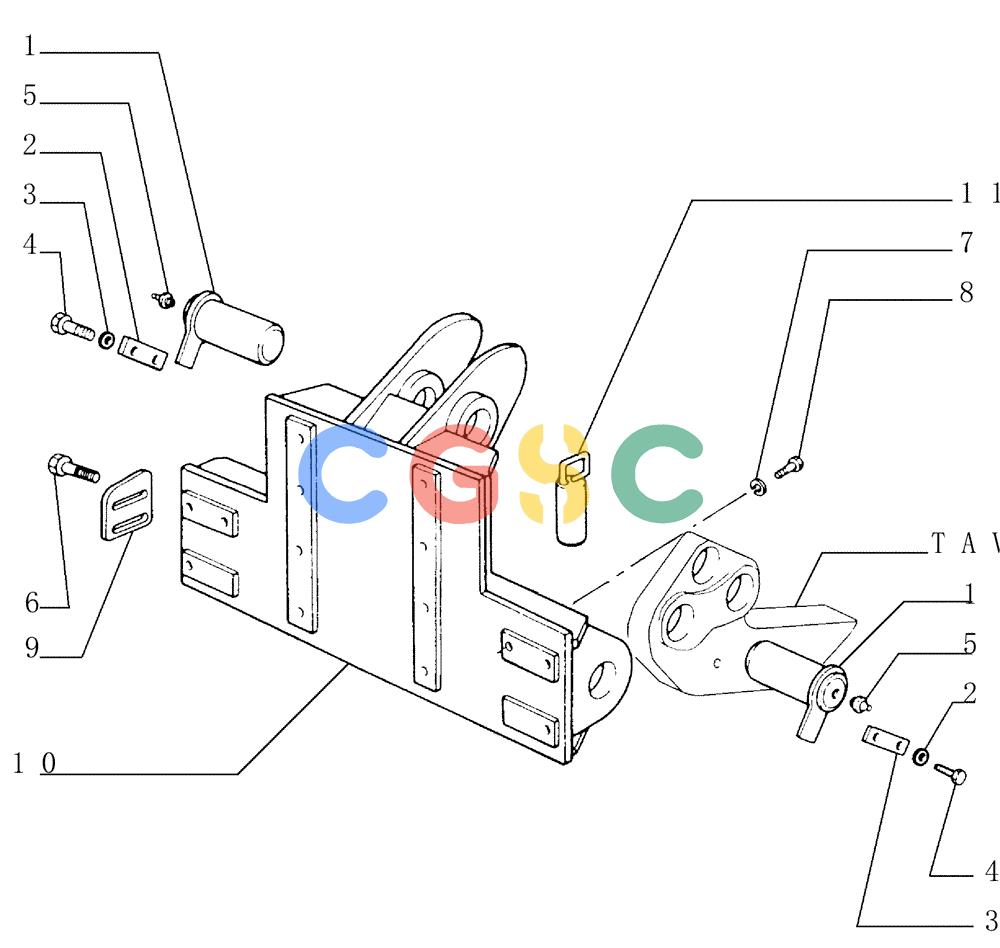

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79098882 | [3] | PIN | LEC |
| 2. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 3. | 79029322 | [3] | PLATE | LEC |
| 4. | 11106231 | [6] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 5. | 13407211 | [3] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 6. | 79102887 | [2] | BOLT,Hex Flg, M8 x 1.25 x 27mm, Cl 10.9 | LEC |
| 7. | 14497331 | [14] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24X44 Superseded by part number: 86511328 |
| 8. | 15997131 | [14] | BOLT,Hex, M24 x 2 x 60mm, Cl 10.9 | MKT Superseded by part number: 15997137 |
| 9. | 79102888 | [1] | LOCKING PLATE | LEC |
| 10. | 79105369 | [1] | PLATE | LEC |
| 11. | 79091620 | [1] | PIN | LEC |
