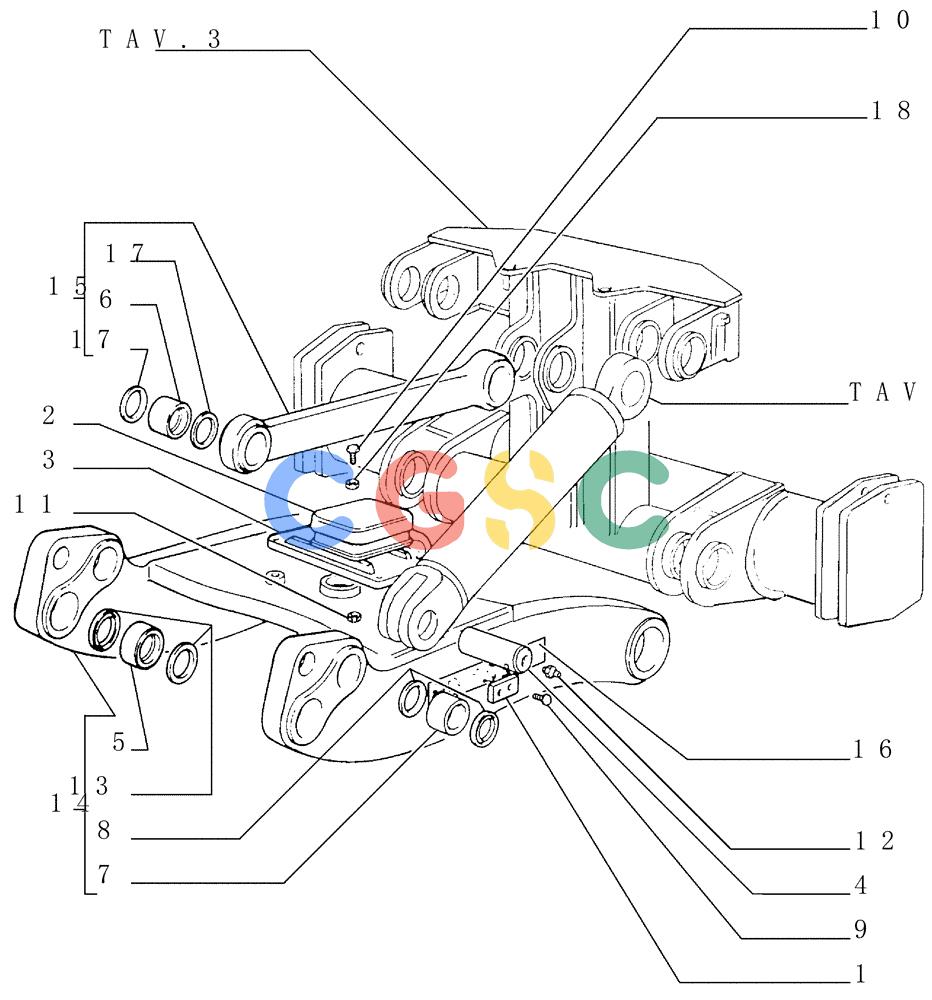

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.522[02]) - RIPPER (PD) - FRAME - OPTIONAL CODE 76030342 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
433 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8289428 | [2] | PLATE | LEC |
| 2. | 8285989 | [1] | PAD | LEC Superseded by part number: 76092115 |
| 3. | 8285990 | [1] | PLATE | LEC Superseded by part number: 76092116 |
| 4. | 79098891 | [2] | PIN | LEC |
| 5. | 76004220 | [4] | BUSHING | LEC |
| 7. | 76004289 | [2] | BUSHING | LEC |
| 8. | 8288822 | [4] | SEAL | BHB Superseded by part number: 79065559 |
| 9. | 11112231 | [4] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 10. | 11118731 | [4] | BOLT,Hex, M16 x 45, 10.9 | LEC Superseded by part number: 86508624 |
| 11. | 12575121 | [1] | NUT,M20 x 1.5, Cl 10 | IMO |
| 12. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 14. | 79102860 | [1] | FRAME | LEC- ASSY |
| 15. | 76004217 | [1] | LINK CONROD | LEC- ASSY |
| 16. | 76052624 | [2] | DECAL | LEC |
| 17. | 8299740 | [4] | BRAKE LINING | LEC Superseded by part number: 79065568 |
| 18. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
