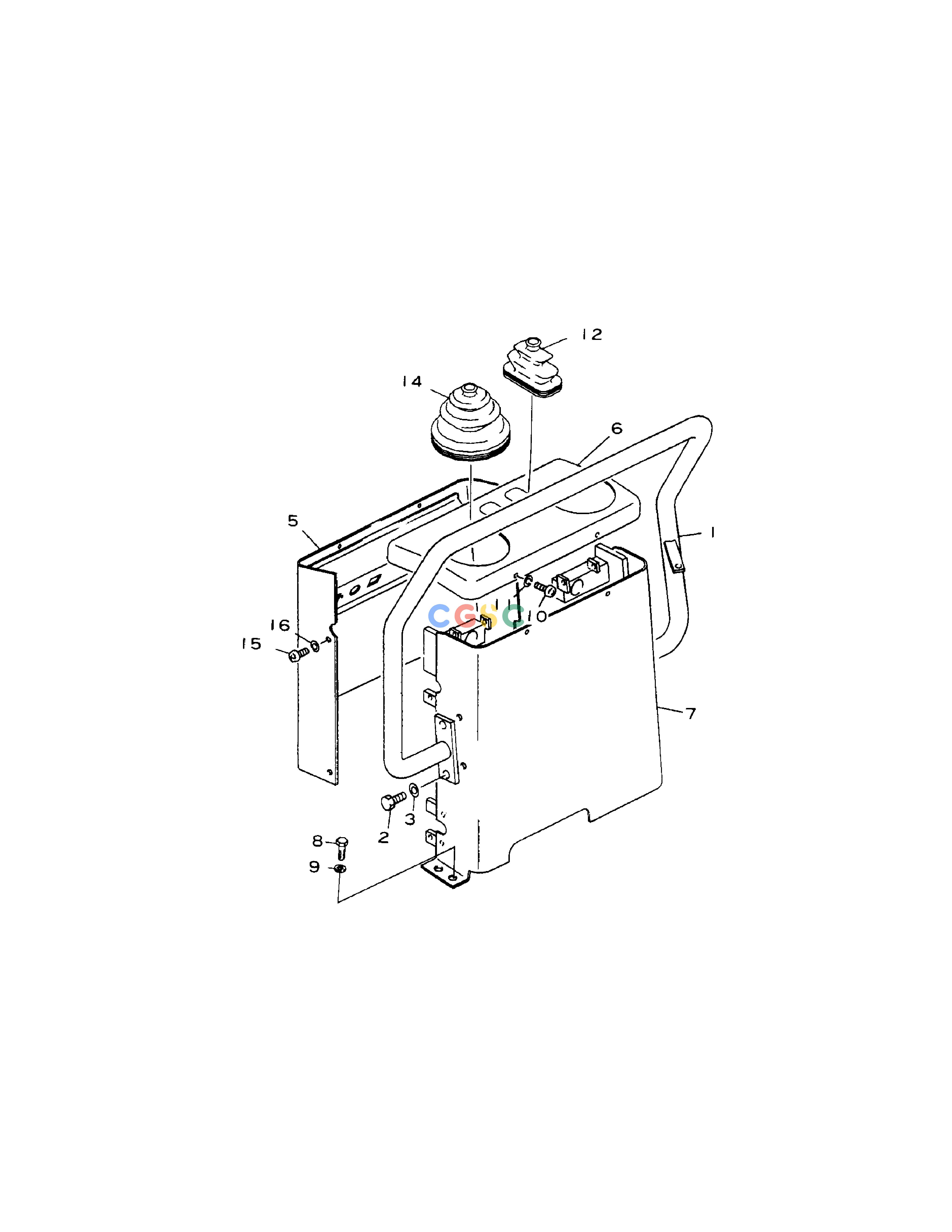

斗山零件查询CONTROL STAND SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
479 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2195-3779
|
[-] |
STAND ASS'Y
|
|
| 1. |
2142-1096C
|
[1] |
GUIDE
|
2142-1096E
|
| 1. |
2142-1096E
|
[1] |
GUIDE
|
|
| 10. |
S3450820
|
[4] |
SCREW M5X0.8X10
|
|
| 11. |
S5100203
|
[4] |
WASHER
|
|
| 12. |
2160-1235A
|
[2] |
BOOT;TRAVEL
|
|
| 14. |
2160-1234
|
[2] |
BOOT;WORKING
|
|
| 15. |
S0504453
|
[4] |
BOLT
|
|
| 16. |
S5102303
|
[4] |
. WASHER
|
|
| 2. |
S0511653
|
[4] |
BOLT
|
|
| 3. |
S5102603
|
[4] |
. WASHER
|
|
| 5. |
2621-2788C
|
[1] |
COVER;STAND
|
2621-2788
|
| 5. |
2621-2788E
|
[1] |
COVER;STAND
|
|
| 6. |
2621-2787B
|
[1] |
COVER;UPPER
|
|
| 7. |
2195-3761C
|
[1] |
STAND
|
2195-3761E
|
| 7. |
2195-3761E
|
[1] |
STAND
|
|
| 8. |
S0511653
|
[4] |
BOLT
|
|
| 9. |
S5102603
|
[4] |
. WASHER
|
|
