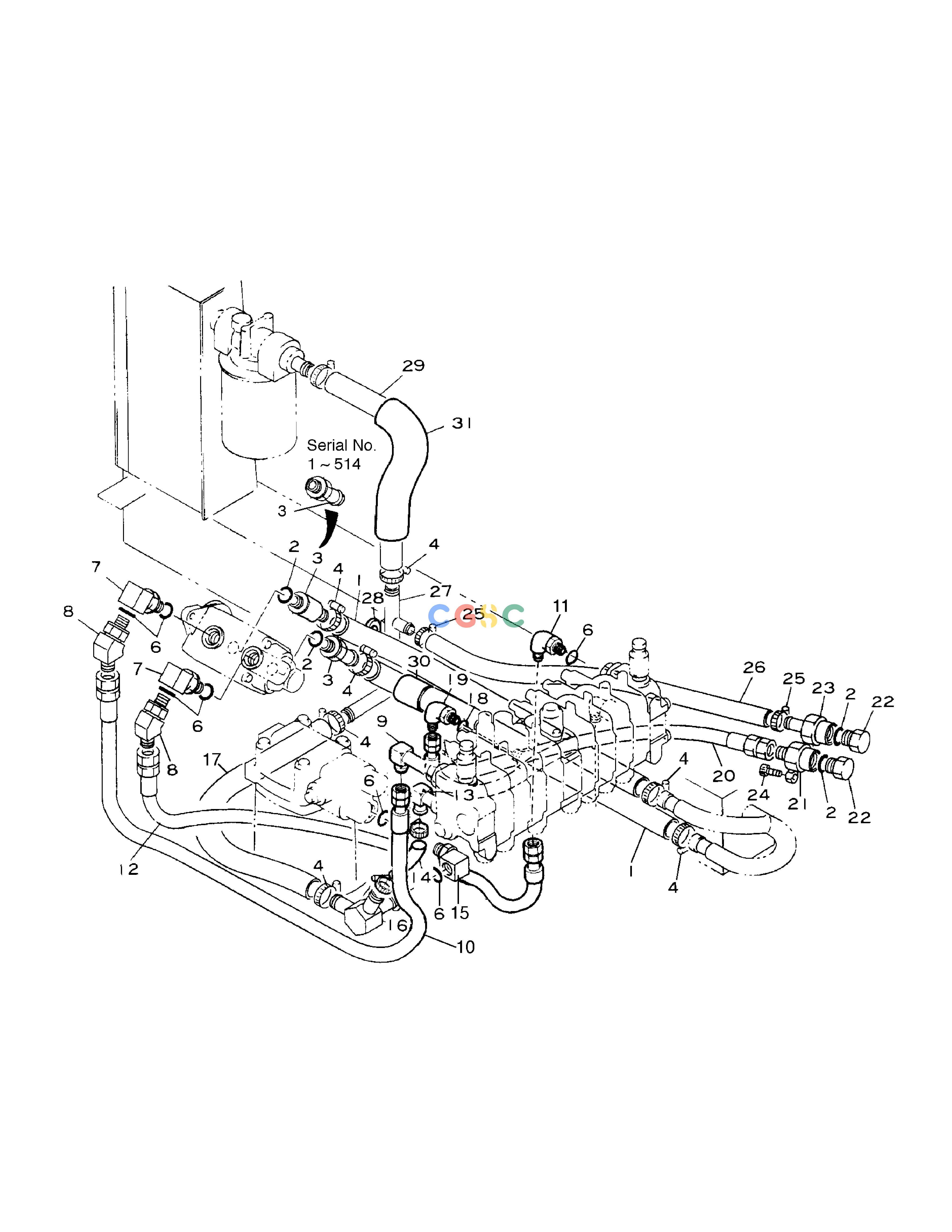

斗山零件查询LOW PIPING SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1563
|
[-] |
LOW PIPING ASS'Y
|
|
| 1. |
2185-1002D70
|
[2] |
HOSE 420L
|
|
| 1. |
2185-1002D150
|
[2] |
HOSE 370L
|
|
| 10. |
2184-1026D336
|
[1] |
HOSE PF3/8-530L
|
|
| 11. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 12. |
2184-1026D329
|
[1] |
HOSE PF3/8-740L
|
|
| 13. |
2181-2436
|
[1] |
ADAPTER PFO3/8
|
|
| 14. |
2185-1002D71
|
[1] |
HOSE 55L
|
|
| 15. |
2181-2435
|
[1] |
ELBOW PFO3/8-PF3/8
|
|
| 16. |
2181-2428
|
[1] |
ADAPTER PFO3/8
|
2181-2428A
|
| 16. |
2181-2428A
|
[1] |
ADAPTER PFO3/8
|
|
| 17. |
2185-1002D72
|
[1] |
HOSE 500L
|
|
| 18. |
S8000111
|
[1] |
O-RING
|
|
| 19. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 2. |
S8000181
|
[4] |
O-RING
|
|
| 20. |
2184-1052D43
|
[1] |
HOSE PF3/8-380L
|
|
| 21. |
2181-2427
|
[1] |
ADAPTER PFO1/2-PF3/8
|
|
| 22. |
2181-1950D3
|
[2] |
PLUG
|
|
| 23. |
2181-2426
|
[1] |
ADAPTER PFO1/2
|
|
| 24. |
S2208663
|
[2] |
BOLT M8X1.25X16
|
|
| 25. |
S8450016
|
[2] |
. CLAMP
|
|
| 26. |
2185-1002D73
|
[1] |
HOSE 450L
|
|
| 27. |
2193-1283A
|
[1] |
PIPE
|
|
| 27. |
2193-1283B
|
[1] |
PIPE
|
|
| 28. |
2114-1058D63
|
[1] |
WASHER
|
|
| 29. |
2185-1002D74
|
[1] |
HOSE 400L
|
|
| 3. |
2181-2104D6
|
[2] |
ADAPTER
|
|
| 3. |
181-00725
|
[2] |
ELBOW PFO1/2
|
|
| 30. |
2185-1374
|
[1] |
HOSE;VINYL
|
|
| 31. |
2185-1375
|
[1] |
HOSE;VINYL
|
|
| 4. |
S8450018
|
[10] |
CLAMP;HOSE
|
|
| 6. |
S8000141
|
[8] |
O-RING
|
|
| 7. |
2181-2295D12
|
[2] |
ELBOW
|
|
| 8. |
2181-2419D2
|
[2] |
ELBOW
|
|
| 9. |
2181-1702D40
|
[1] |
ELBOW PFO3/8XPF3/8
|
|
