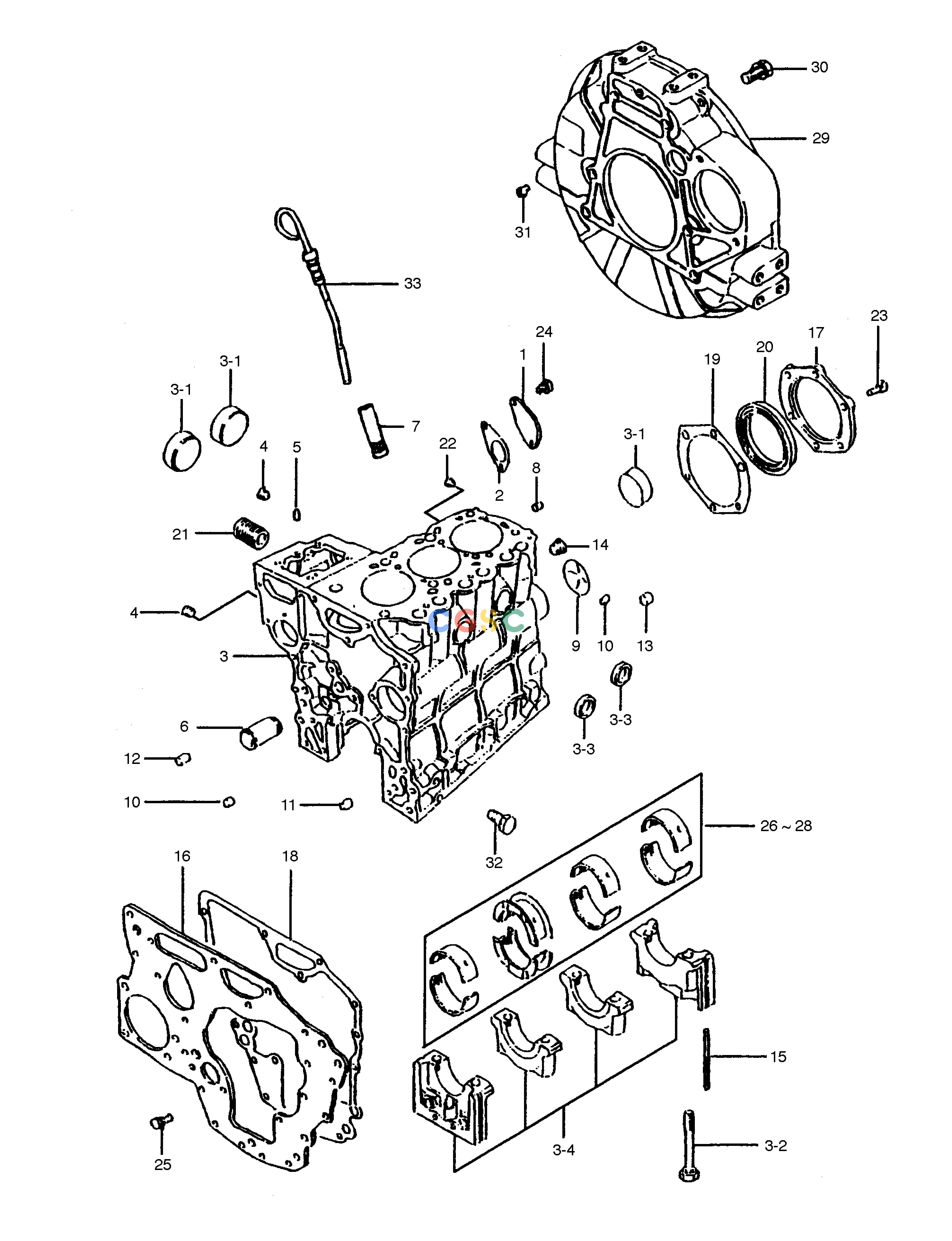

斗山零件查询CRANK CASE SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
MM432677
|
[1] |
COVER
|
|
| 10. |
MS471101
|
[2] |
BUSHING;KNOCK
|
|
| 11. |
MS471102
|
[1] |
BUSHING;KNOCK
|
|
| 12. |
MS471105
|
[2] |
BUSHING;KNOCK
|
|
| 13. |
MS471107
|
[3] |
BUSHING
|
|
| 14. |
MS661141
|
[1] |
PLUG;TAPER
|
|
| 15. |
MM432214
|
[4] |
SEAL;SIDE
|
|
| 16. |
MM433363
|
[1] |
PLATE;FRONT W/O PTO
|
|
| 17. |
MM432065
|
[1] |
CASE;OIL SEAL
|
|
| 18. |
30L07-05300
|
[1] |
GASKET;FRONT PLATE
|
|
| 19. |
30L07-05200
|
[1] |
GASKET;OIL SEAL CASE
|
|
| 2. |
30L07-05100
|
[1] |
GASKET
|
|
| 20. |
MD016317
|
[1] |
SEAL;OIL REAR
|
|
| 21. |
30L07-00700
|
[1] |
SHAFT;OIL FILTER
|
|
| 22. |
MD000269
|
[1] |
PLUG;TAPER
|
|
| 23. |
MF101228
|
[6] |
BOLT
|
|
| 24. |
MF240051
|
[2] |
BOLT;WITH WASHER
|
|
| 25. |
MF241224
|
[7] |
BOLT;WITH WASHER
|
|
| 26. |
MM438799
|
[1] |
METAL SET;CRANK SHAFT
|
|
| 27. |
MM438800
|
[1] |
METAL SET;CRANK SHAFT 0.25
|
|
| 28. |
MM438801
|
[1] |
METAL SET;CRANK SHAFT 0.50
|
|
| 29. |
MM438-720
|
[1] |
HOUSING;FLYWHEEL
|
|
| 3. |
MM432-65004
|
[1] |
CYLINDER BLOCK SUB ASS'Y
|
|
| 3-1. |
MD000427
|
[3] |
CAP;SEALING
|
|
| 3-2. |
MD016230
|
[8] |
BOLT;BEARING CAP
|
|
| 3-3. |
MF665538
|
[2] |
CAP;SEALING
|
|
| 3-4. |
NA00306
|
[1] |
. CAP ASS'Y
|
|
| 30. |
MF241282
|
[6] |
BOLT;WITH WASHER
|
|
| 31. |
05534-16000
|
[1] |
PLUG
|
|
| 32. |
MF100083
|
[4] |
BOLT
|
|
| 33. |
MM431-251
|
[1] |
GAUGE;OIL LEVEL
|
|
| 4. |
30L07-01800
|
[3] |
PLUG;TAPER
|
|
| 5. |
MM409645
|
[2] |
PIN;DOWEL
|
|
| 6. |
MM433115
|
[1] |
SHAFT;IDLER
|
|
| 7. |
MM430613
|
[1] |
GUIDE;OIL LEVEL
|
|
| 8. |
MF472404
|
[1] |
PIN;DOWEL
|
|
| 9. |
MF665510
|
[1] |
PLUG;EXPANSION
|
|
