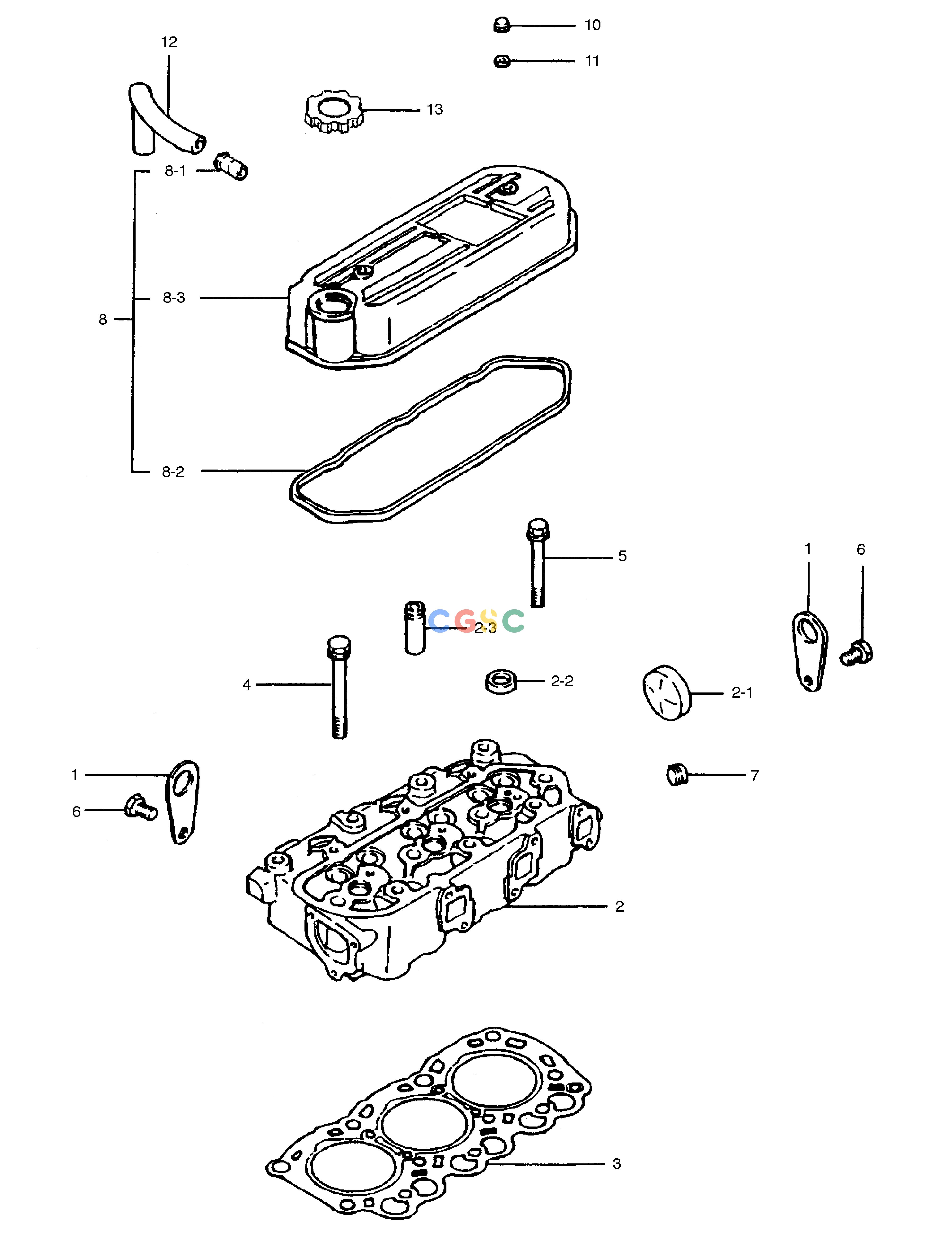

斗山零件查询CYLINDER HEAD SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
180 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
MM432239
|
[2] |
HANGER;ENGINE
|
|
| 10. |
F2460-06000
|
[2] |
NUT;CAP
|
|
| 11. |
MF450004
|
[2] |
WASHER;PLAIN
|
|
| 12. |
MM433709
|
[1] |
HOSE;BREATHER
|
|
| 13. |
34442-05200
|
[1] |
CAP;FILLER
|
|
| 2. |
30L01-01040
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 2-1. |
MD000427
|
[1] |
CAP;SEALING
|
|
| 2-2. |
MF665536
|
[3] |
CAP;SEALING
|
|
| 2-3. |
MM318-306
|
[6] |
GUIDE;VALVE
|
|
| 3. |
30L01-01102
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 4. |
MM432-12501
|
[8] |
BOLT;CYLINDER HEAD
|
|
| 5. |
MD020566
|
[3] |
BOLT;FLANGE
|
|
| 6. |
MF240051
|
[2] |
BOLT;WITH WASHER
|
|
| 7. |
MS661140
|
[1] |
PLUG;TAPER
|
|
| 8. |
30L04-00010
|
[1] |
CYL. HEAD COVER ASS'Y
|
|
| 8-1. |
NA00793
|
[1] |
|
|
| 8-2. |
MM433133
|
[1] |
GASKET
|
|
| 8-3. |
NA00405
|
[1] |
|
|
