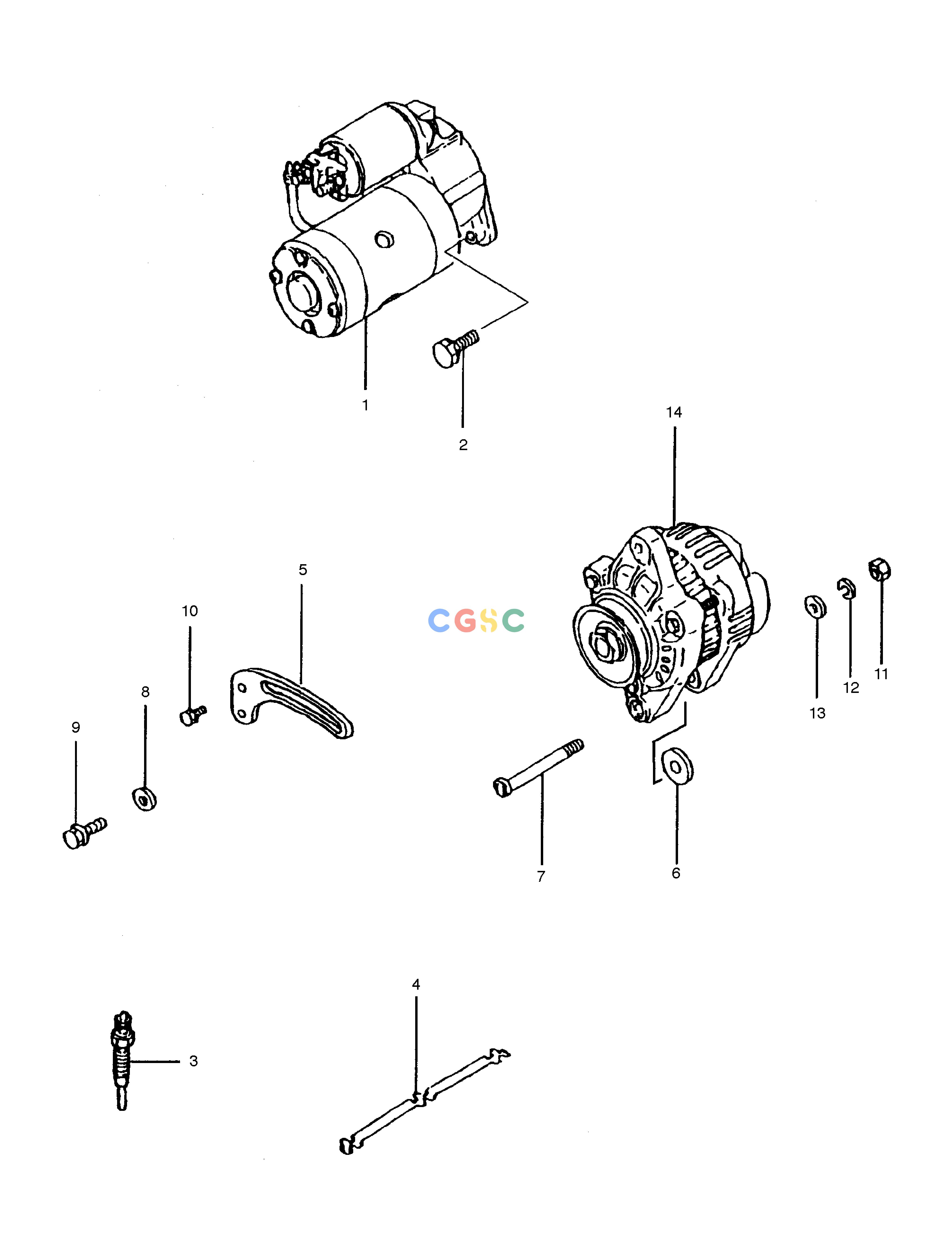

斗山零件查询ELECTRICAL EQUIPMENT SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30L66-10600
|
[1] |
STARTER ASS'Y
|
|
| 10. |
MF241224
|
[1] |
BOLT;WITH WASHER
|
|
| 11. |
MF430005
|
[1] |
NUT
|
|
| 12. |
MF450405
|
[1] |
WASHER;SPRING
|
|
| 13. |
MS450035
|
[1] |
WASHER;PLAIN
|
|
| 14. |
30A68-00801
|
[1] |
ALTERNATOR 12V-40A
|
|
| 2. |
MF244855
|
[2] |
BOLT;WITH WASHER
|
|
| 3. |
MM432-14801
|
[3] |
PLUG;GLOW
|
|
| 4. |
MM433309
|
[1] |
PLATE;GLOW PLUG
|
|
| 5. |
MM433651
|
[1] |
BRACE;GENERATOR
|
|
| 6. |
91520-00700
|
[1] |
WASHER
|
|
| 7. |
MD001515
|
[1] |
BOLT
|
|
| 8. |
MD001521
|
[1] |
WASHER
|
|
| 9. |
MF140026
|
[1] |
BOLT;FLANGE
|
|
