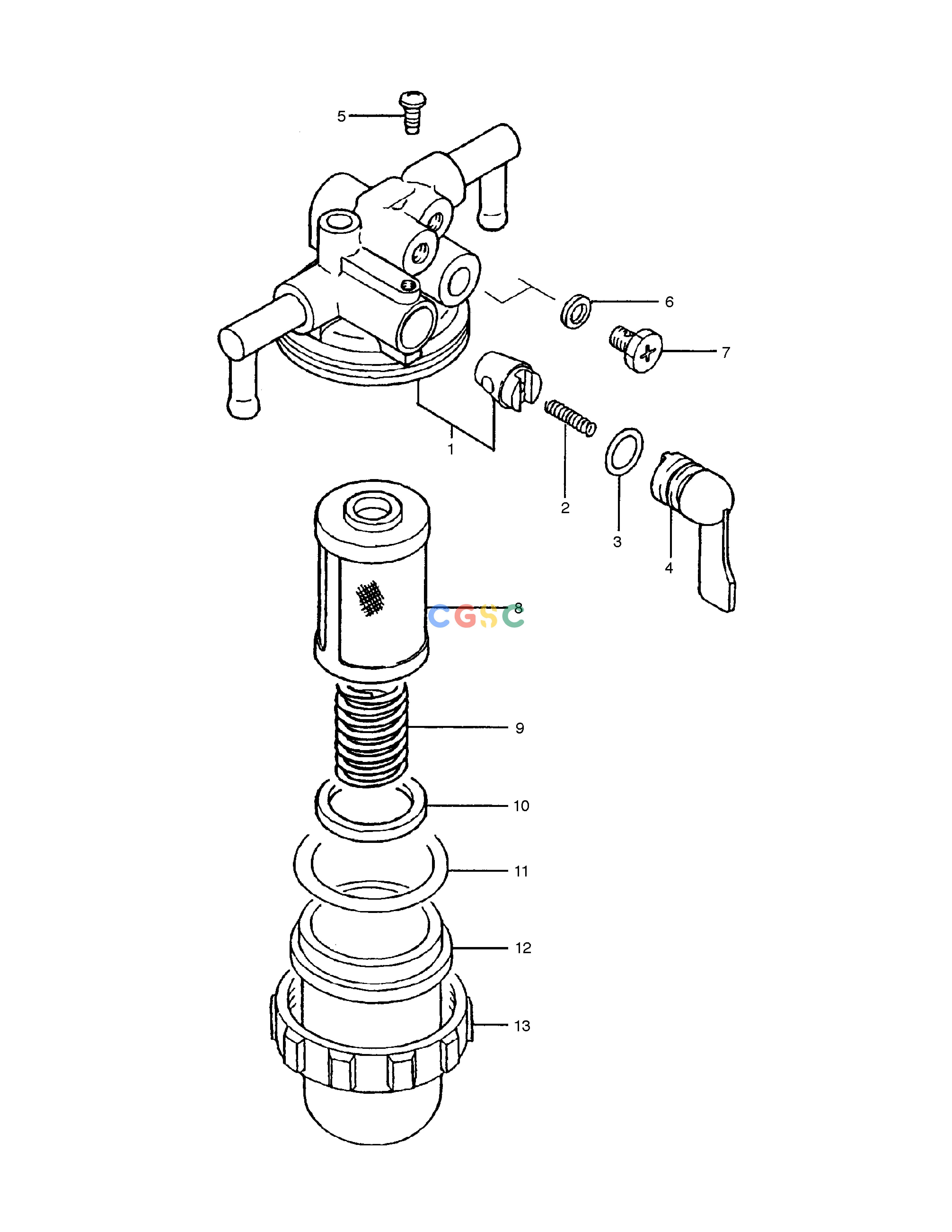

斗山零件查询FUEL FILTER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
MM130552
|
[1] |
SEDIMENTER;WATER
|
|
| 1. |
MM435746
|
[1] |
BODY SUB ASS'Y
|
|
| 10. |
MM330940
|
[1] |
FLOAT
|
|
| 11. |
MM409869
|
[1] |
O-RING;FILTER
|
|
| 12. |
MM320881
|
[1] |
CUP;FILTER
|
|
| 13. |
MM409868
|
[1] |
NUT;RING
|
|
| 2. |
MM404873
|
[1] |
SPRING;VALVE
|
|
| 3. |
MM404874
|
[1] |
O-RING;VALVE
|
|
| 4. |
MM434146
|
[1] |
LEVER
|
|
| 5. |
MM404875
|
[1] |
SCREW
|
|
| 6. |
MM404884
|
[2] |
PACKING
|
|
| 7. |
MM404880
|
[2] |
SCREW;AIR VENT
|
|
| 8. |
MM434147
|
[1] |
ELEMENT ASS'Y
|
|
| 9. |
MM434148
|
[1] |
SPRING;ELEMENT
|
|
