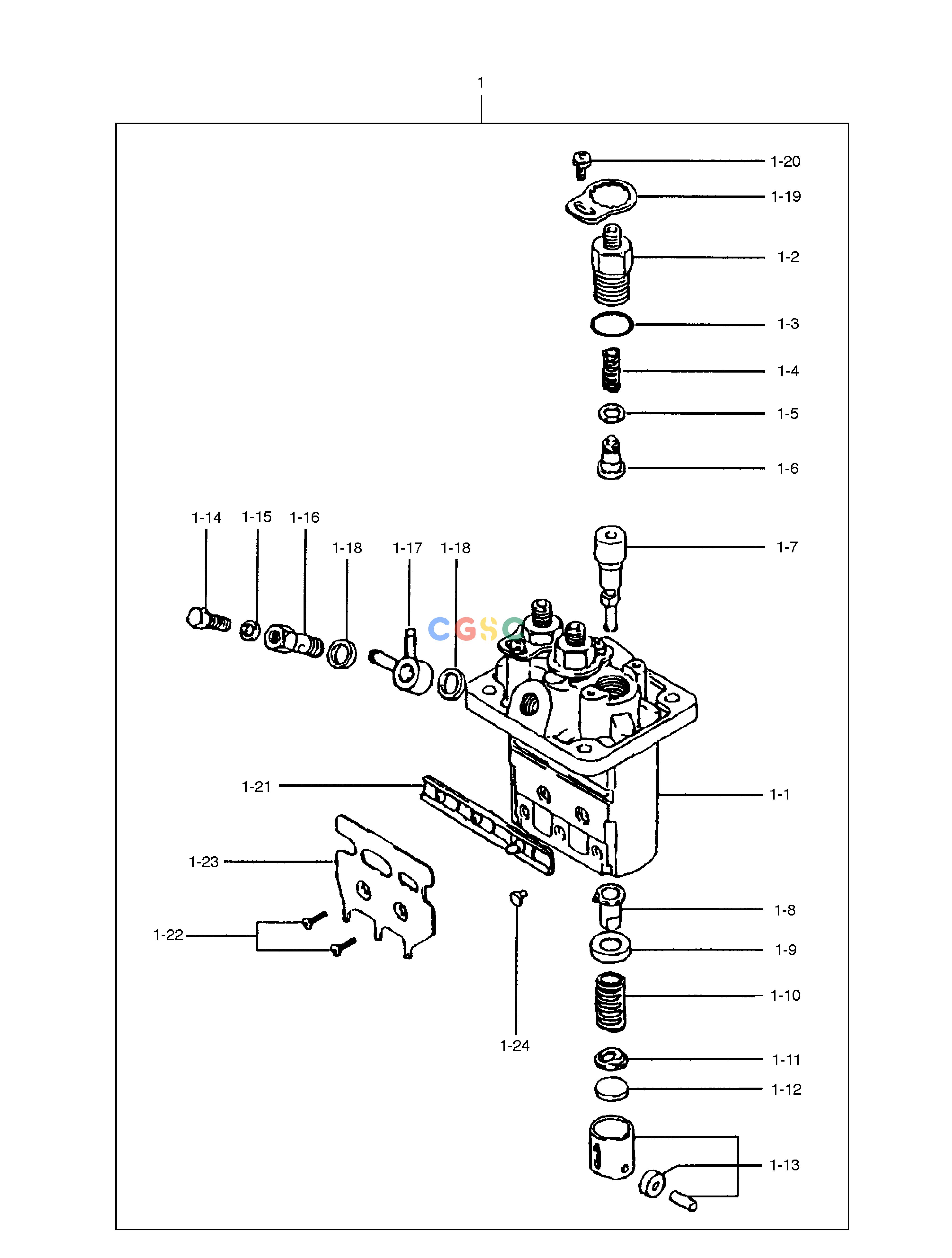

斗山零件查询FUEL INJECTION PUMP SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30L65-01700
|
[1] |
FUEL INJ PUMP ASS'Y
|
|
| 1-1. |
09011-03730
|
[1] |
HOUSING SUB ASS'Y
|
|
| 1-10. |
09016-40220
|
[3] |
SPRING;PUMP PLUNGER
|
|
| 1-11. |
09016-50170
|
[3] |
SEAT;SPRING
|
|
| 1-12. |
NA00837
|
[AR] |
|
|
| 1-13. |
09017-00220
|
[3] |
TAPPET ASS'Y
|
|
| 1-14. |
09024-40010
|
[1] |
SCREW;AIR BLEEDER
|
|
| 1-15. |
09024-80010
|
[1] |
WASHER;DRAIN SCREW
|
|
| 1-16. |
09024-50310
|
[1] |
SCREW;HOLLOW
|
|
| 1-17. |
09221-70590
|
[1] |
NIPPLE;SWIVEL
|
|
| 1-18. |
09025-10010
|
[2] |
WASHER;DRAIN UNION
|
|
| 1-19. |
09023-00070
|
[3] |
PLATE;LOCK
|
|
| 1-2. |
09013-10830
|
[3] |
HOLDER;DELIVERY
|
|
| 1-20. |
94900-75390
|
[3] |
SCREW;WITH WASHER
|
|
| 1-21. |
09021-00560
|
[1] |
CONTROL RACK ASS'Y
|
|
| 1-22. |
94900-20500
|
[2] |
SCREW;COUNTERSUNK
|
|
| 1-23. |
09069-11020
|
[1] |
BRACKET;STOP
|
|
| 1-24. |
09018-30090
|
[3] |
PIN;TAPPET
|
|
| 1-3. |
90801-10130
|
[3] |
O-RING
|
|
| 1-4. |
09013-60530
|
[3] |
SPRING;DELIVERY
|
|
| 1-5. |
09013-70130
|
[3] |
GASKET;DELIVERY
|
|
| 1-6. |
09014-02110
|
[3] |
VALVE SUB ASS'Y
|
|
| 1-7. |
09015-04280
|
[3] |
ELEMENT SUB ASS'Y
|
|
| 1-8. |
09016-00140
|
[3] |
SLEEVE SUB ASS'Y
|
|
| 1-9. |
09016-30140
|
[3] |
SEAT;SPRING
|
|
