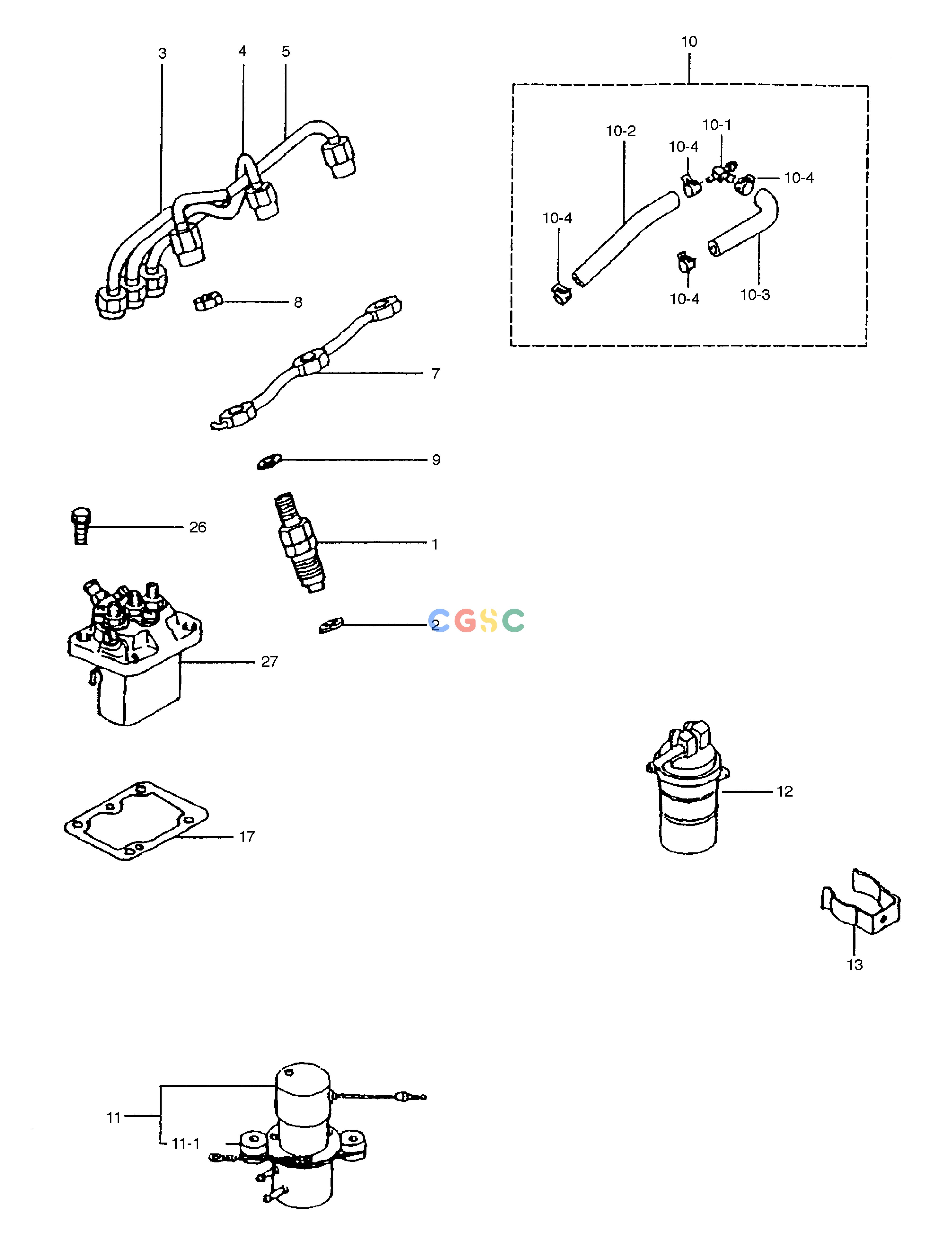

斗山零件查询FUEL SUPPLY PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
MM435-94101
|
[3] |
NOZZLE & HOLDER ASS'Y
|
|
| 10. |
30L61-20300
|
[1] |
FUEL PIPE ASS'Y
|
|
| 10-1. |
31A61-01500
|
[1] |
JOINT
|
|
| 10-2. |
MS604-018
|
[1] |
HOSE;FUEL
|
|
| 10-3. |
MS604-005
|
[1] |
HOSE
|
|
| 10-4. |
MS660169
|
[4] |
CLIP
|
|
| 11. |
30A60-00200
|
[1] |
FUEL PUMP ASS'Y
|
|
| 11-1. |
30A60-00500
|
[2] |
MOUNT;RUBBER
|
|
| 12. |
MM435190
|
[1] |
FUEL FILTER ASS'Y
|
|
| 13. |
MM400880
|
[1] |
CLAMP;FILTER
|
|
| 17. |
MM432222
|
[1] |
SHIM;ADJUSTING T=0.5
|
|
| 17. |
MM432219
|
[AR] |
SHIM;ADJUSTING T=0.2
|
|
| 17. |
MM432220
|
[AR] |
SHIM;ADJUSTING T=0.3
|
|
| 17. |
MM433164
|
[AR] |
SHIM;ADJUSTING T=0.4
|
|
| 17. |
MM433165
|
[AR] |
SHIM;ADJUSTING T=0.6
|
|
| 17. |
MM433166
|
[AR] |
SHIM;ADJUSTING T=0.7
|
|
| 17. |
MM433167
|
[AR] |
SHIM;ADJUSTING T=0.8
|
|
| 17. |
MM433168
|
[AR] |
SHIM;ADJUSTING T=0.9
|
|
| 17. |
MM433169
|
[AR] |
SHIM;ADJUSTING T=1.0
|
|
| 2. |
MD070717
|
[3] |
GASKET;HOLDER
|
|
| 26. |
MF241228
|
[4] |
BOLT;WITH WASHER
|
|
| 27. |
30L65-01700
|
[1] |
FUEL INJ PUMP ASS'Y
|
|
| 3. |
30L61-07100
|
[1] |
PIPE ASS'Y
|
|
| 4. |
30L61-07200
|
[1] |
PIPE ASS'Y
|
|
| 5. |
30L61-07300
|
[1] |
PIPE ASS'Y
|
|
| 7. |
MM436-471
|
[1] |
PIPE;FUEL RETURN
|
|
| 8. |
MD068353
|
[3] |
NUT
|
|
| 9. |
MD068355
|
[3] |
GASKET;FUEL RETURN
|
|
