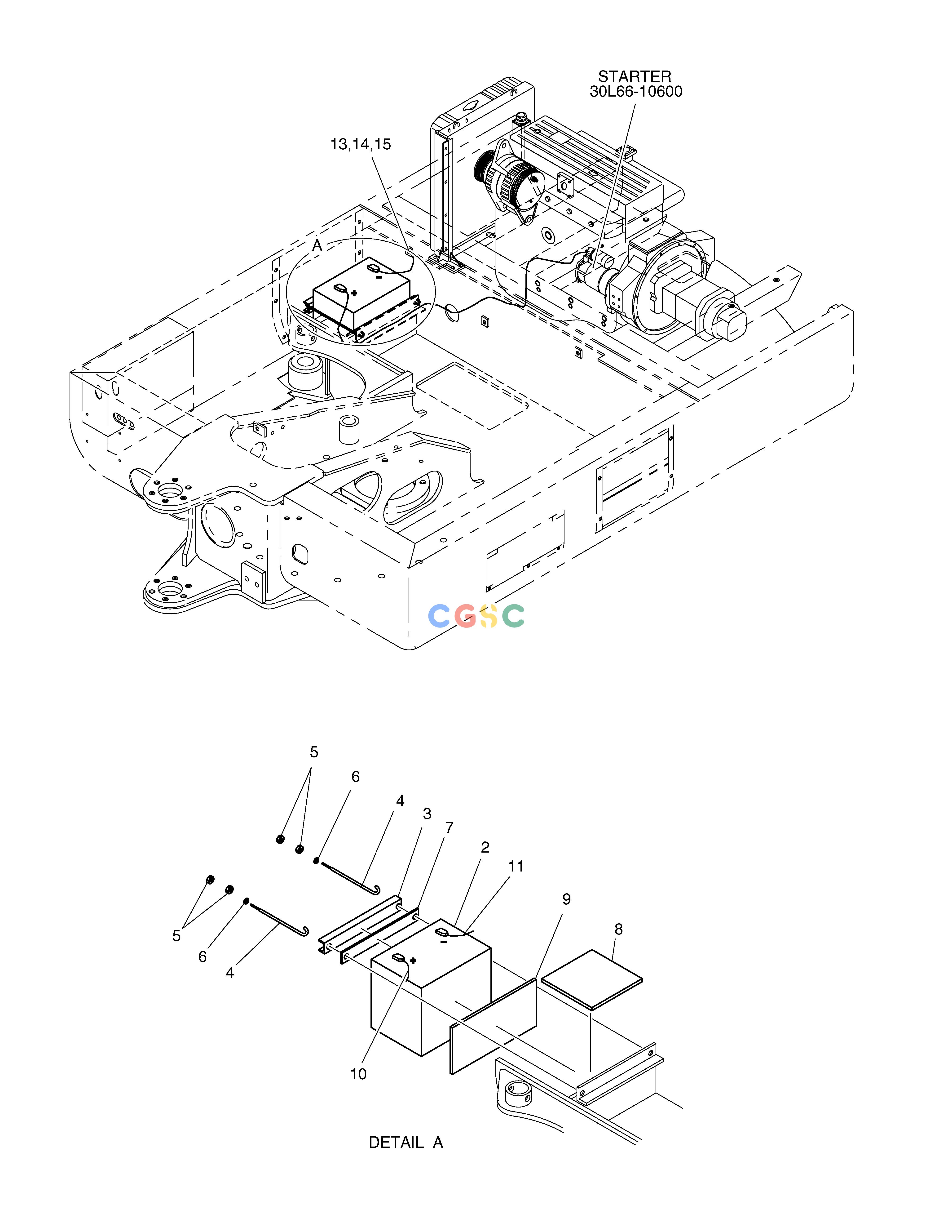

斗山零件查询ELECTRIC PARTS(2)-BATTERY SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00079
|
[-] |
ELECTRIC PARTS
|
|
| 10. |
2553-1279D4
|
[1] |
CABLE;BATT. STARTER
|
|
| 11. |
2553-1280D3
|
[1] |
CABLE;BATT-EARTH
|
|
| 13. |
S0511553
|
[1] |
BOLT M10X1.5X14
|
|
| 14. |
S5102603
|
[1] |
. WASHER
|
|
| 15. |
S5010613
|
[1] |
WASHER
|
|
| 2. |
2506-9011
|
[1] |
BATTERY
|
|
| 3. |
192-00090
|
[1] |
CHANNEL
|
|
| 4. |
120-00185A
|
[2] |
BOLT;STUD M6X1.0X160
|
|
| 5. |
S4012333
|
[4] |
NUT
|
|
| 6. |
S5010313
|
[2] |
WASHER
|
|
| 7. |
161-00192A
|
[1] |
RUBBER
|
|
| 8. |
161-00193A
|
[1] |
RUBBER
|
|
| 9. |
161-00194A
|
[1] |
RUBBER;CHSHION
|
|
