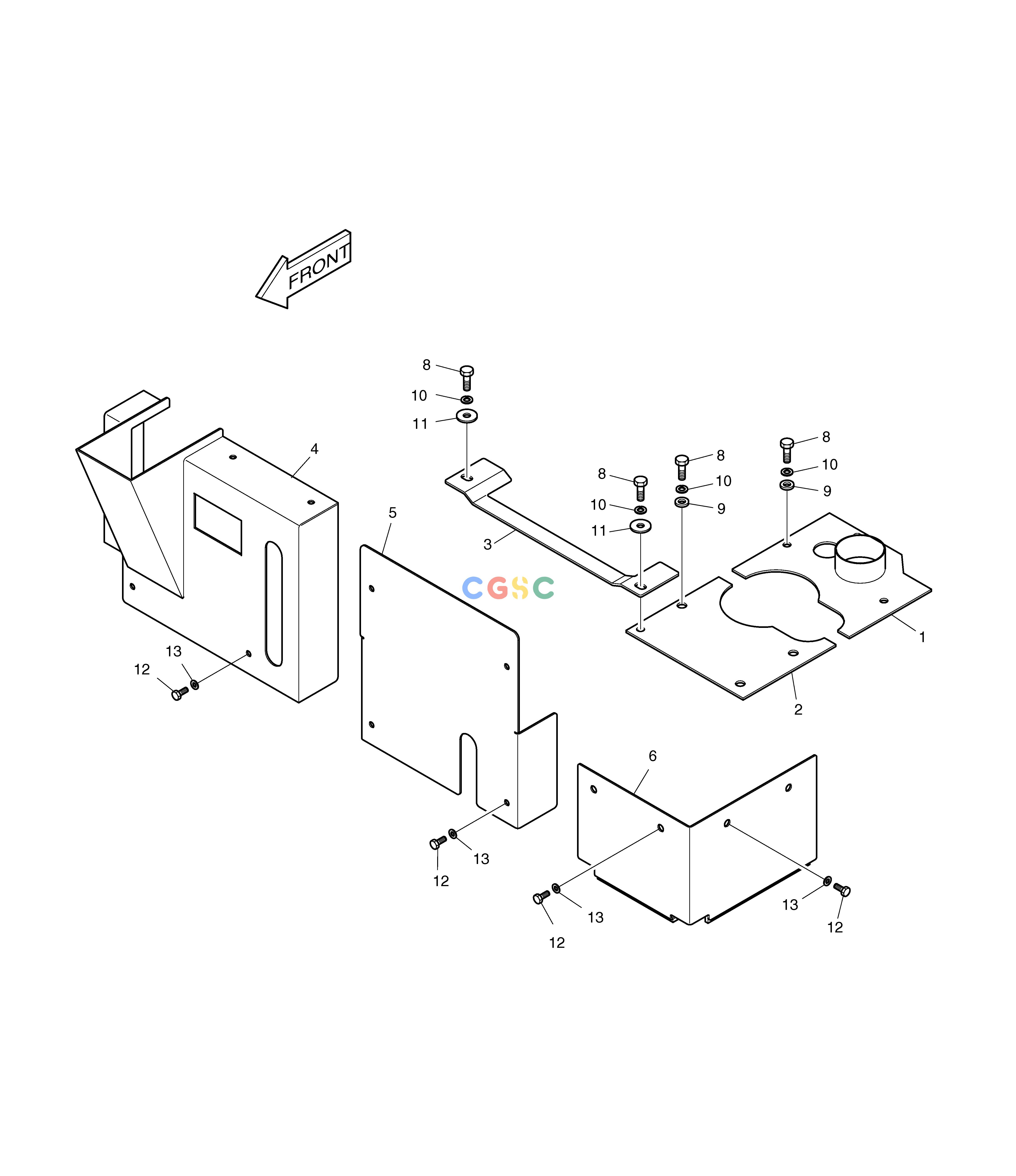

斗山零件查询FLOOR PLATE SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-01082B
|
[-] |
FLOOR PLATE ASS'Y
|
|
| 1. |
621-01066B
|
[1] |
PLATE;FLOOR
|
|
| 10. |
2114-2031D4
|
[8] |
WASHER
|
|
| 11. |
2114-1898D8
|
[2] |
WASHER
|
|
| 12. |
2120-2166D6
|
[14] |
BOLT
|
|
| 13. |
2114-1898D5
|
[14] |
WASHER
|
|
| 2. |
621-01067B
|
[1] |
PLATE;FLOOR
|
|
| 3. |
621-01068A
|
[1] |
PLATE;FLOOR
|
|
| 4. |
621-01070A
|
[1] |
COVER
|
|
| 5. |
621-01071A
|
[1] |
COVER
|
|
| 6. |
621-01072A
|
[1] |
COVER;FILTER
|
|
| 8. |
2120-2166D16
|
[8] |
BOLT
|
|
| 9. |
2114-1898D2
|
[6] |
WASHER
|
|
