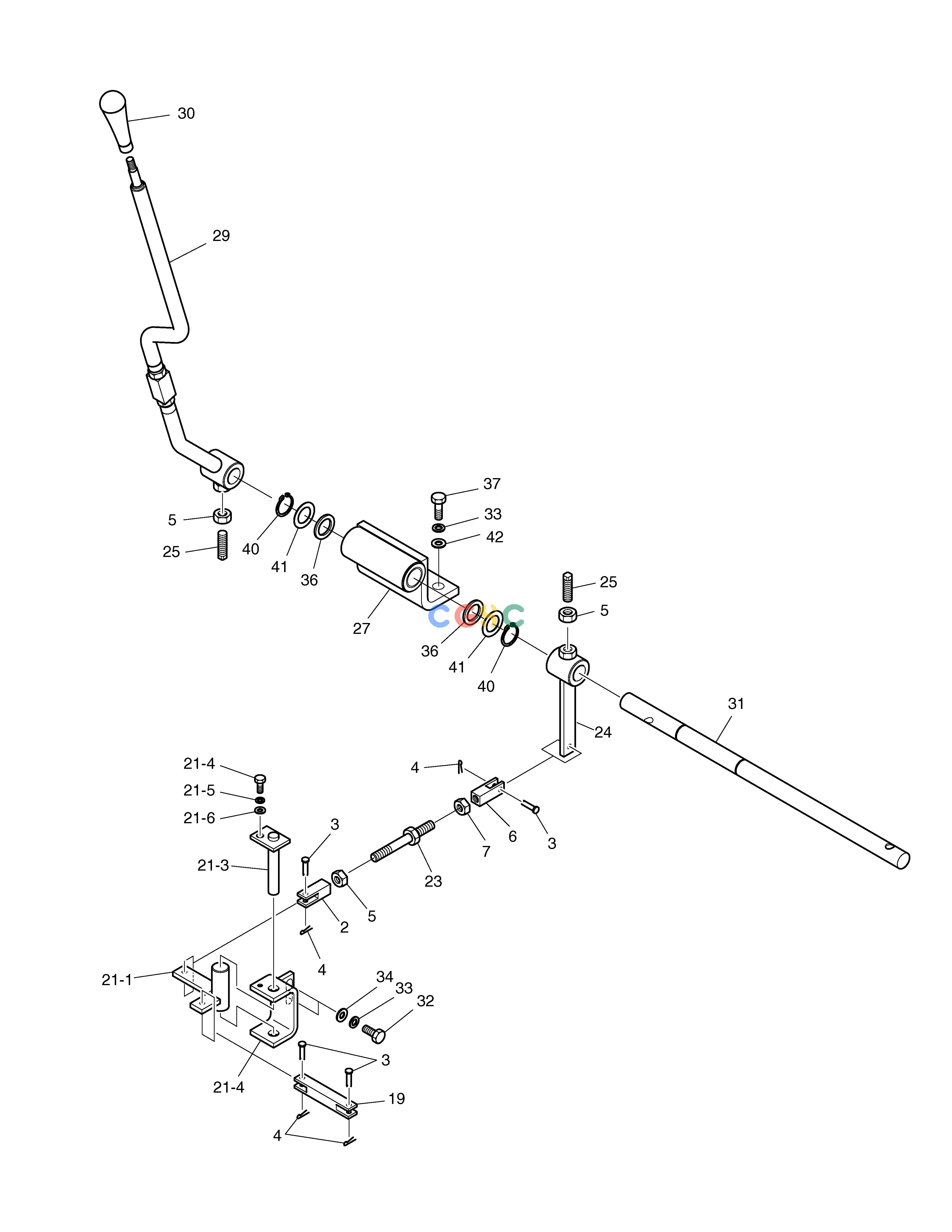

斗山零件查询LEVER-DOZER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
133-00138
|
[-] |
LEVER ASS'Y
|
|
| 19. |
136-00023A
|
[1] |
ROD
|
|
| 2. |
2138-1033
|
[1] |
END;ROD(L.H)
|
|
| 21. |
137-00040A
|
[1] |
LINK;DOZER
|
|
| 21-1. |
137-00049A
|
[1] |
LINK
|
|
| 21-2. |
195-01014A
|
[1] |
BRACKET
|
|
| 21-3. |
123-00267A
|
[1] |
SHAFT
|
|
| 21-4. |
S0504653
|
[1] |
. BOLT
|
|
| 21-5. |
S5102303
|
[1] |
. WASHER
|
|
| 21-6. |
S5010313
|
[1] |
WASHER
|
|
| 23. |
136-00024B
|
[1] |
ROD
|
|
| 24. |
137-00051A
|
[1] |
LINK
|
|
| 25. |
S3524901
|
[2] |
SCREW;SET
|
|
| 27. |
196-00019B
|
[1] |
BOSS
|
|
| 29. |
137-00041A
|
[1] |
LEVER;DOZER
|
|
| 3. |
2123-2093
|
[4] |
PIN
|
|
| 30. |
2132-1141A
|
[1] |
KNOB
|
|
| 31. |
105-00002B
|
[1] |
SHAFT
|
|
| 32. |
S0508853
|
[2] |
. BOLT
|
|
| 33. |
S5102503
|
[4] |
. WASHER
|
|
| 34. |
S5010513
|
[2] |
WASHER
|
|
| 36. |
2114-1059D195
|
[2] |
SHIM
|
|
| 37. |
S0509053
|
[2] |
. BOLT
|
|
| 4. |
S5735051
|
[4] |
PIN;SPLIT
|
|
| 40. |
S6500200
|
[2] |
RING
|
|
| 41. |
2114-1059D31
|
[2] |
SHIM
|
|
| 42. |
2114-1058D59
|
[2] |
WASHER
|
|
| 5. |
S4012633
|
[3] |
NUT
|
|
| 6. |
2138-1032
|
[1] |
END;ROD(L.H)
|
|
| 7. |
2121-1298
|
[1] |
NUT(L.H)
|
|
