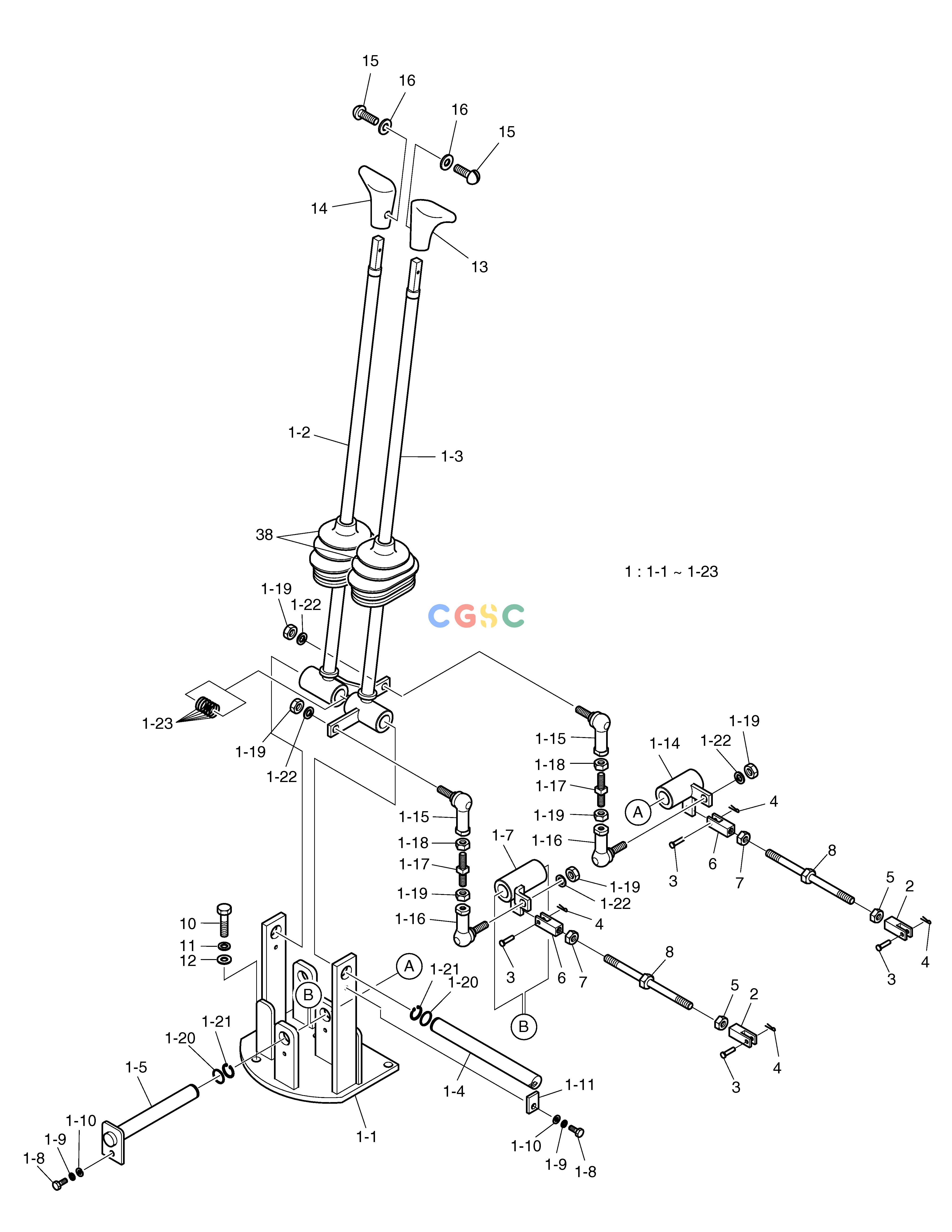

斗山零件查询LEVER-TRAVEL SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
133-00138
|
[-] |
LEVER ASS'Y
|
|
| 1. |
137-00035C
|
[1] |
TRAVEL LEVER
|
|
| 1-1. |
191-00312A
|
[1] |
PLATE;LEVER
|
|
| 1-10. |
S5010313
|
[2] |
WASHER
|
|
| 1-11. |
621-01263
|
[1] |
PLATE;STOPPER
|
|
| 1-14. |
137-00037A
|
[1] |
LINK
|
|
| 1-15. |
2138-9018
|
[2] |
BALL;LINK(L.H)
|
|
| 1-16. |
2138-9017
|
[2] |
BALL;LINK
|
|
| 1-17. |
136-00019A
|
[2] |
ROD
|
|
| 1-18. |
2121-1298
|
[2] |
NUT(L.H)
|
|
| 1-19. |
S4012633
|
[6] |
NUT
|
|
| 1-2. |
137-00043A
|
[1] |
LEVER LINK;TRAVEL(R.H)
|
|
| 1-20. |
2114-1059D195
|
[2] |
SHIM
|
|
| 1-21. |
S6500200
|
[2] |
RING
|
|
| 1-22. |
S5102603
|
[4] |
. WASHER
|
|
| 1-23. |
2114-1059D31
|
[6] |
SHIM
|
|
| 1-3. |
137-00044A
|
[1] |
LEVER LINK;TRAVEL(L.H)
|
|
| 1-4. |
105-00003A
|
[1] |
SHAFT
|
|
| 1-5. |
105-00004B
|
[1] |
SHAFT
|
|
| 1-7. |
137-00045A
|
[1] |
LINK
|
|
| 1-8. |
S0513653
|
[2] |
BOLT M10X1.5X100
|
|
| 1-9. |
S5102303
|
[2] |
. WASHER
|
|
| 10. |
S0558053
|
[3] |
BOLT M10X1.5X28
|
|
| 11. |
S5102603
|
[3] |
. WASHER
|
|
| 12. |
S5010613
|
[3] |
WASHER
|
|
| 13. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 14. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 15. |
S3450573
|
[2] |
SCREW
|
|
| 16. |
S5000113
|
[2] |
WASHER
|
|
| 2. |
2138-1033
|
[2] |
END;ROD(L.H)
|
|
| 3. |
2123-2093
|
[4] |
PIN
|
|
| 38. |
2160-1271
|
[2] |
BOOTS
|
|
| 4. |
S5735051
|
[4] |
PIN;SPLIT
|
|
| 5. |
S4012633
|
[2] |
NUT
|
|
| 6. |
2138-1032
|
[2] |
END;ROD(L.H)
|
|
| 7. |
2121-1298
|
[2] |
NUT(L.H)
|
|
| 8. |
136-00020B
|
[2] |
ROD
|
|
