斗山零件查询MAIN FRAME SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

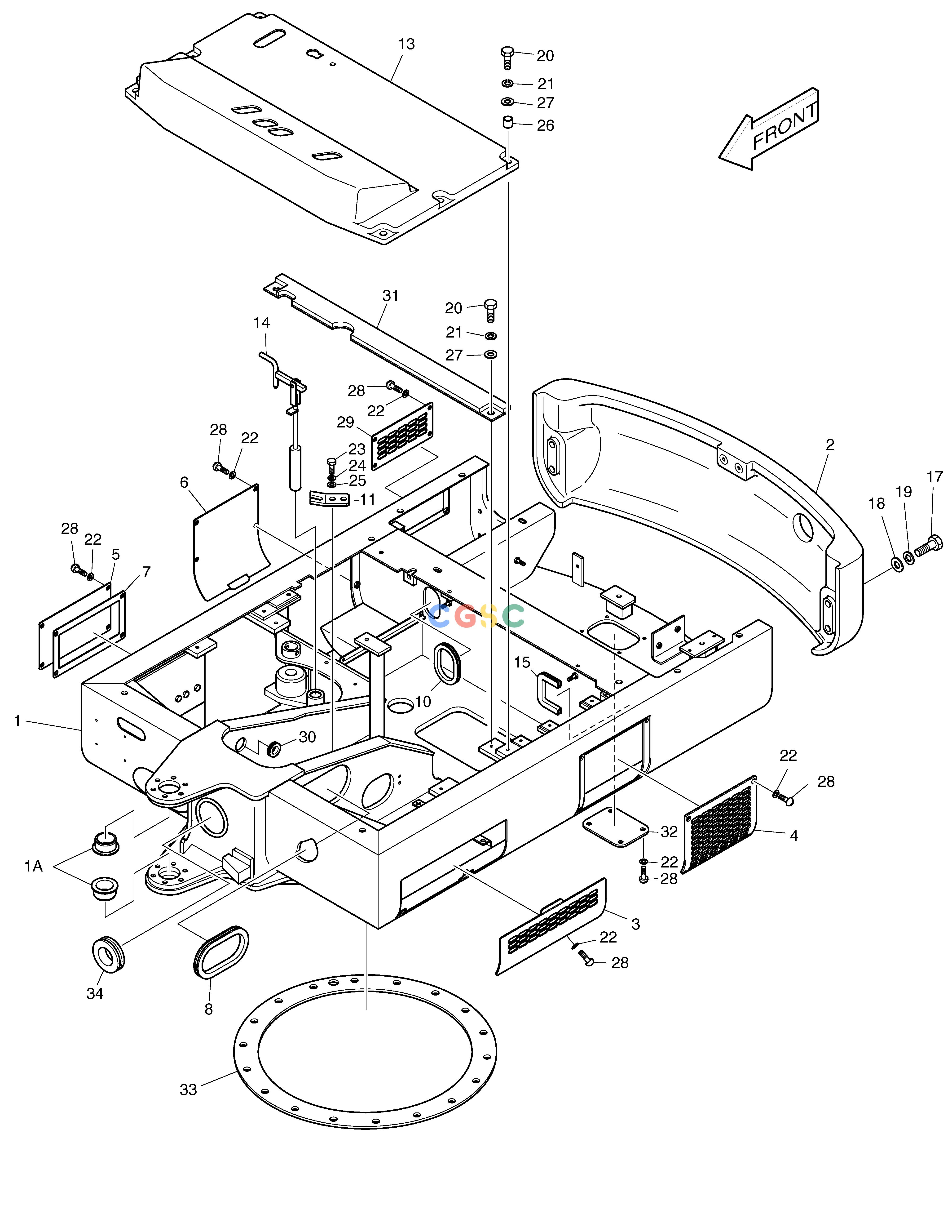

600-00052
|
[-] |
SWING FRAME ASS'Y
|
|
| 1. |
603-00066H
|
[1] |
FRAME;MAIN
|
|
| 10. |
2160-1201D20
|
[1] |
BUSH;RUBBER
|
|
| 11. |
2116-1529
|
[1] |
BRACKET;C/J
|
|
| 13. |
161-00126B
|
[1] |
PLATE;RUBBER
|
|
| 14. |
123-00233
|
[1] |
LOCK;SWING
|
|
| 15. |
2161-1744
|
[1] |
RUBBER
|
|
| 17. |
S0763663
|
[4] |
BOLT M14X1.5
|
|
| 18. |
2114-1755
|
[4] |
WASHER
|
|
| 19. |
S5102803
|
[4] |
WASHER
|
|
| 1A. |
2110-1359
|
[2] |
BUSH
|
|
| 2. |
624-00019B
|
[1] |
WEIGHT;COUNTER
|
|
| 20. |
S0509053
|
[8] |
. BOLT
|
|
| 21. |
S5102503
|
[8] |
. WASHER
|
|
| 22. |
S5010513
|
[22] |
WASHER
|
|
| 23. |
S0512053
|
[2] |
BOLT
|
|
| 24. |
S5102603
|
[2] |
. WASHER
|
|
| 25. |
S5010613
|
[2] |
WASHER
|
|
| 26. |
2114-1756
|
[6] |
COLLAR
|
|
| 27. |
2114-1058D29
|
[8] |
WASHER
|
|
| 28. |
S3457113
|
[22] |
SCREW M8X1.25X20
|
|
| 29. |
621-01364
|
[1] |
COVER
|
|
| 3. |
621-00932B
|
[1] |
COVER
|
|
| 30. |
2160-1004D58
|
[1] |
GROMMET
|
|
| 31. |
195-01352
|
[1] |
BRACKET
|
|
| 32. |
621-01393A
|
[1] |
COVER
|
|
| 33. |
159-00104
|
[1] |
RING;TURNING
|
|
| 34. |
2160-1004D60
|
[1] |
BUSHING;RUBBER
|
|
| 4. |
621-00890
|
[1] |
COVER
|
|
| 5. |
621-00933
|
[1] |
COVER
|
|
| 6. |
621-00931A
|
[1] |
COVER
|
|
| 7. |
161-00125
|
[1] |
PLATE;RUBBER
|
|
| 8. |
2160-1201D16
|
[1] |
BUSHING;RUBBER
|
|
