斗山零件查询OIL TANK SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
672 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

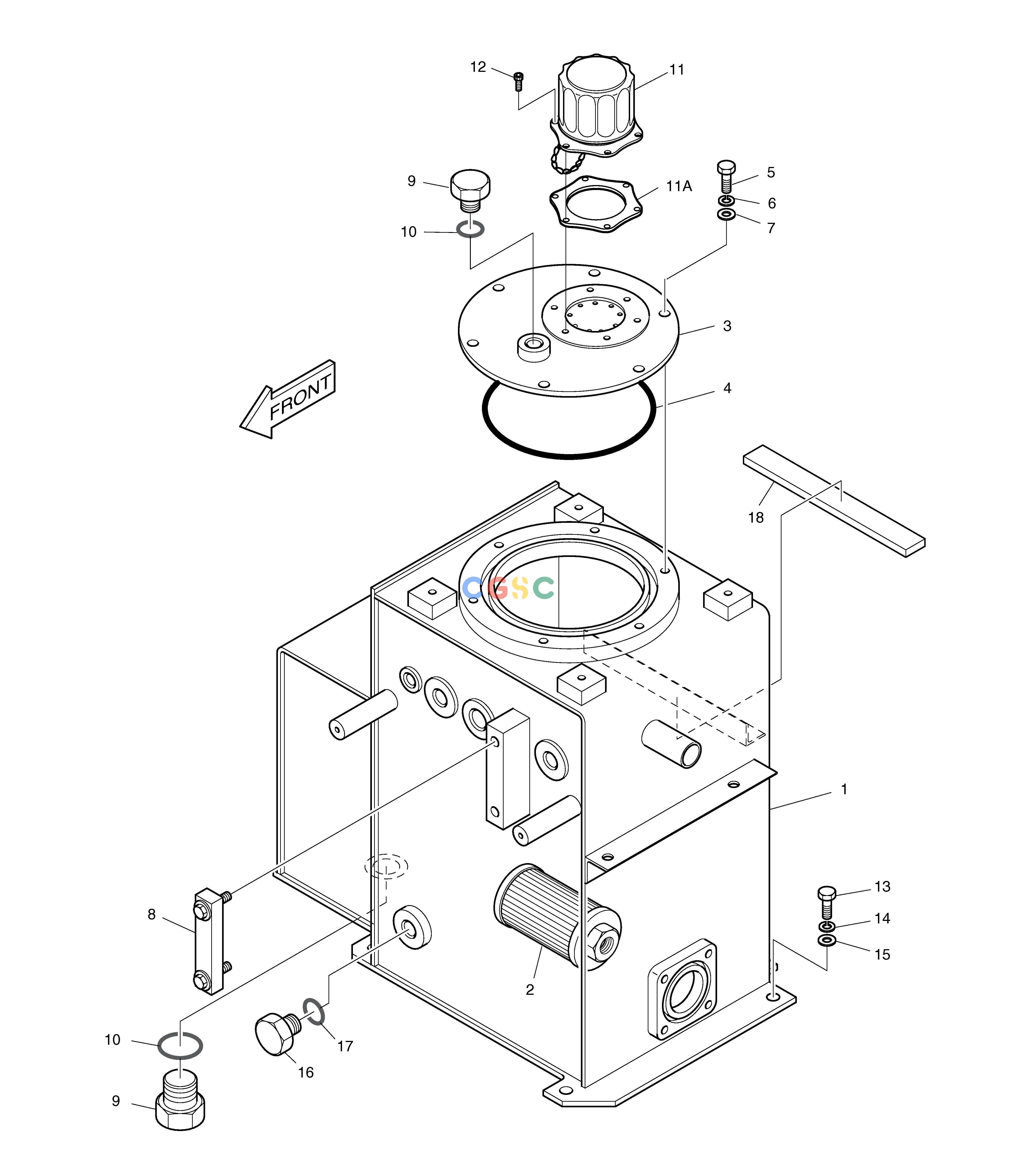

470-00049
|
[-] |
OIL TANK ASS'Y
|
|
| 1. |
470-00048B
|
[1] |
TANK;OIL
|
|
| 10. |
S8000181
|
[3] |
O-RING
|
|
| 11. |
422-00028A
|
[1] |
BREATHER;AIR
|
|
| 11A. |
180-00200
|
[1] |
PACKING
|
|
| 12. |
S2202761
|
[6] |
BOLT;SOCKET M5X0.8X8
|
|
| 13. |
S0511853
|
[3] |
BOLT
|
|
| 14. |
S5102603
|
[3] |
. WASHER
|
|
| 15. |
S5010613
|
[3] |
WASHER
|
|
| 16. |
2181-1950D2
|
[1] |
PLUG
|
|
| 17. |
S8000141
|
[1] |
O-RING
|
|
| 18. |
161-00403
|
[1] |
SPONGE
|
|
| 2. |
471-00042
|
[1] |
FILTER;SUCTION
|
|
| 3. |
473-00023A
|
[1] |
COVER
|
|
| 4. |
2180-1026D38
|
[1] |
O-RING
|
|
| 5. |
S0508853
|
[6] |
. BOLT
|
|
| 6. |
S5102503
|
[6] |
. WASHER
|
|
| 7. |
S5010513
|
[6] |
WASHER
|
|
| 8. |
528-00012
|
[1] |
GAUGE;LEVEL
|
|
| 9. |
2181-1950D7
|
[3] |
. PLUG
|
|
