斗山零件查询PILOT PIPING SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

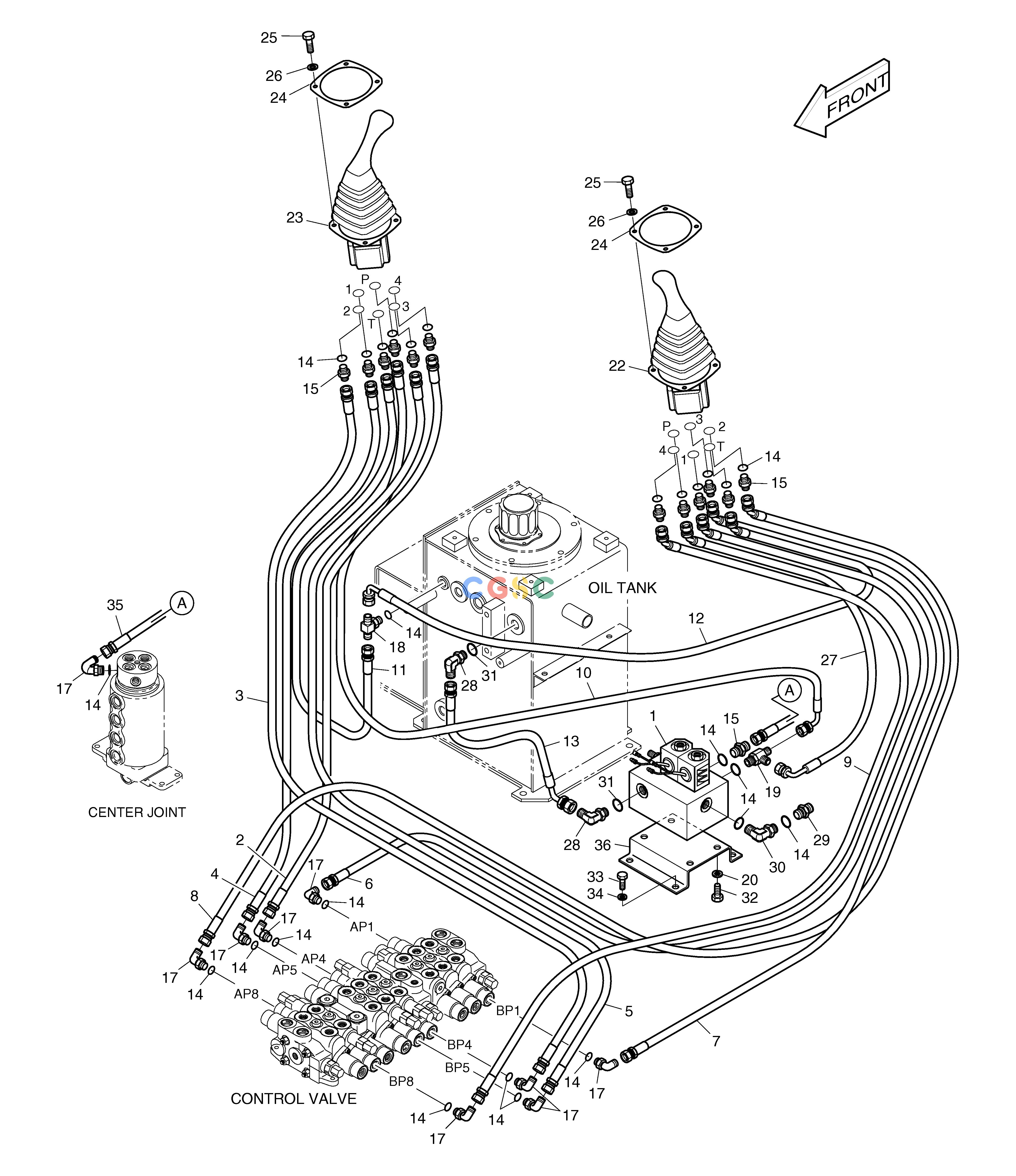

400-00582
|
[-] |
PILOT PIPING
|
|
| 1. |
2420-9540B
|
[1] |
SOLENOID VALVE ASS'Y
|
|
| 10. |
2184-1046D143
|
[1] |
HOSE PF1/4-1150L
|
|
| 11. |
2184-1045D165
|
[1] |
HOSE PF1/4-900L
|
|
| 12. |
2184-1046D196
|
[1] |
HOSE PF1/4-1550L
|
|
| 13. |
2184-1036D306
|
[1] |
HOSE PF3/8-300L
|
|
| 14. |
S8000111
|
[26] |
O-RING
|
|
| 15. |
2181-1126D14
|
[13] |
ADAPTER
|
|
| 17. |
2181-1702D4
|
[8] |
ELBOW
|
|
| 18. |
2181-2281D1
|
[1] |
TEE
|
|
| 19. |
2181-1951D1
|
[1] |
TEE
|
|
| 2. |
2184-1045D254
|
[1] |
HOSE
|
|
| 20. |
S5102603
|
[4] |
. WASHER
|
|
| 22. |
2420-9616
|
[1] |
JOYSTICK(L.H)
|
|
| 23. |
2420-9615
|
[1] |
JOYSTICK(R.H)
|
|
| 24. |
2621-2752
|
[2] |
PLATE
|
|
| 25. |
S0505053
|
[8] |
BOLT
|
|
| 26. |
S5102303
|
[8] |
. WASHER
|
|
| 27. |
DS2058244
|
[1] |
HOSE PF1/4-1100L
|
|
| 28. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 29. |
2471-1133
|
[1] |
FILTER;ADAPTER
|
|
| 3. |
2184-1045D149
|
[1] |
HOSE PF1/4-1400L
|
|
| 30. |
2181-2295D8
|
[1] |
ELBOW PFO1/4-PF1/4
|
|
| 31. |
S8000141
|
[2] |
O-RING
|
|
| 32. |
S0511653
|
[4] |
BOLT
|
|
| 33. |
S0508853
|
[4] |
. BOLT
|
|
| 34. |
S5102503
|
[4] |
. WASHER
|
|
| 35. |
2184-1046D98
|
[1] |
HOSE PF1/4-800L
|
|
| 36. |
621-02699
|
[1] |
PLATE;VALVE
|
|
| 4. |
2184-1045D124
|
[1] |
HOSE PF1/4-2100L
|
|
| 5. |
2184-1045D102
|
[1] |
HOSE PF1/4-1450L
|
|
| 6. |
2184-1060D108
|
[1] |
HOSE PF1/4-1300L
|
|
| 7. |
2184-1060D41
|
[1] |
HOSE PF1/4-1250L
|
|
| 8. |
DS2057035
|
[1] |
HOSE PF1/4-1920L
|
|
| 9. |
2184-1060D65
|
[1] |
HOSE PF1/4-1500L
|
|
