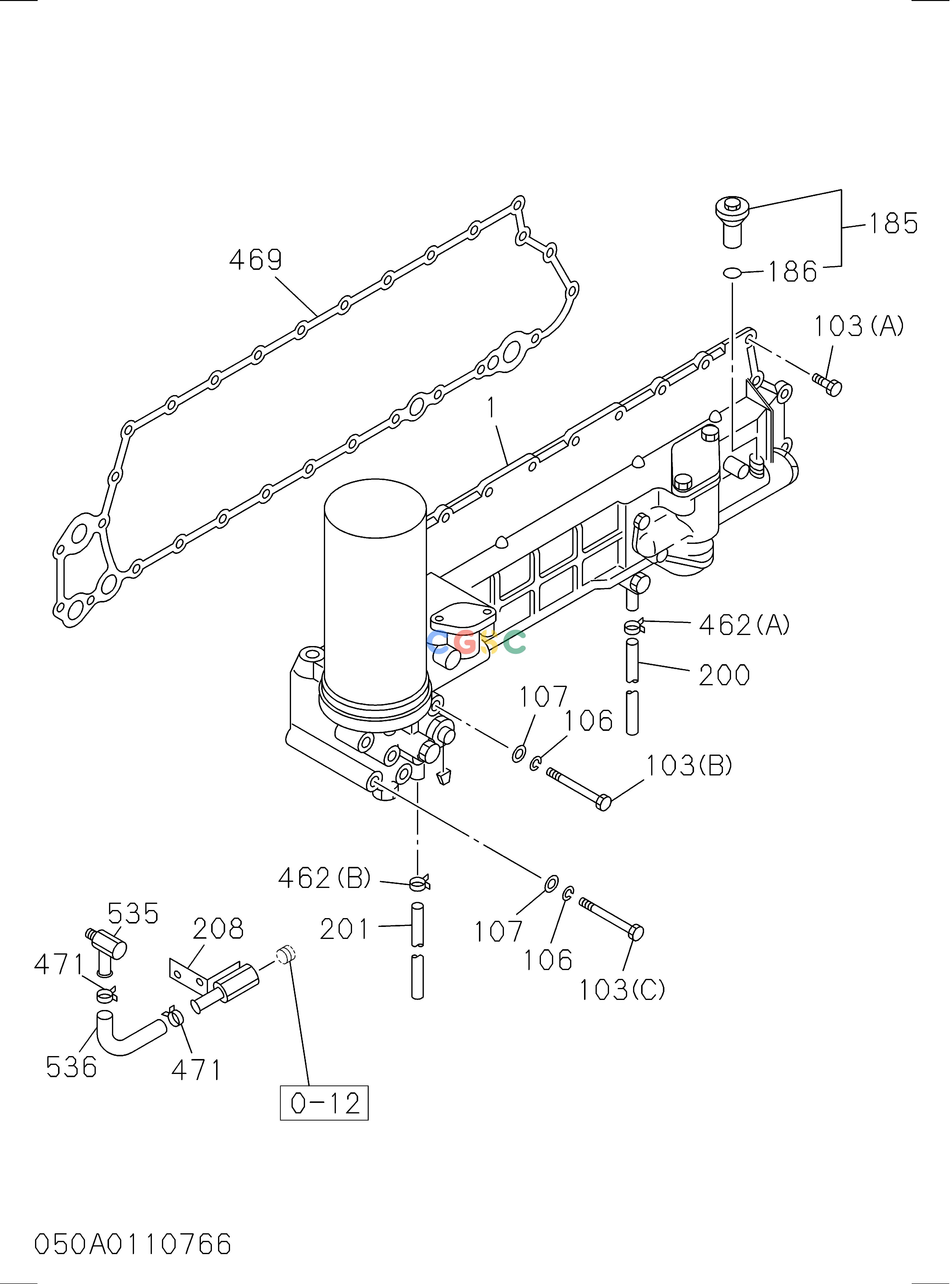

日立零件查询（CD2000）050: OIL COOLER AND OIL FILTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
804 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1132009701 | [1] | FILTER & COOLER ASM; OIL | |
| 002(A). | 1132401681 | [1] | ELEMENT; OIL FILTER | |
| 012(B). | 1132601110 | [1] | VALVE ASM; BYPASS | |
| 013. | 9132620100 | [1] | VALVE; RELIEF | |
| 014. | 1132630060 | [1] | SPRING; RELIEF VLV | |
| 015(B). | 1132193230 | [1] | PLUG; RELIEF VLV | |
| 020(A). | 1132191520 | [3] | PLUG; COOLER BODY | M20 |
| 020(B). | 1132191530 | [2] | PLUG; COOLER BODY | M26 |
| 020(B). | 1132191530 | [4] | PLUG; COOLER BODY | M26 |
| 020(C). | 1132193560 | [1] | PLUG; COOLER BODY | M24 |
| 021(A). | 1132191580 | [3] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 021(B). | 1132191590 | [2] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 021(B). | 1132191590 | [4] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 021(C). | 8943967550 | [1] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 025. | 1217290740 | [4] | NUT; CORE TO BODY | |
| 025. | 1132193240 | [4] | NUT; CORE TO BODY | |
| 026. | 1217230540 | [1] | CORE ASM; OIL COOLER | |
| 026. | 1217230620 | [1] | CORE ASM; OIL COOLER | |
| 027. | 1217290750 | [4] | WASHER; PL,CORE TO BODY | |
| 028(A). | 1217290760 | [2] | GASKET; CORE TO BODY | |
| 028(A). | 8943968100 | [2] | GASKET; CORE TO BODY | |
| 029. | 1217290770 | [2] | GASKET; CORE TO BODY | |
| 029. | 8943949300 | [2] | GASKET; CORE TO BODY | |
| 032(A). | 1132192951 | [1] | PLUG; DRAIN | |
| 032(B). | 1132192760 | [1] | PLUG; DRAIN | |
| 033. | 1132112681 | [1] | HOUSING ASM; COOLER | |
| 041. | 1132191610 | [2] | BOLT; COVER FIX | |
| 041. | 0286808250 | [2] | BOLT; COVER FIX | |
| 045. | 1132191720 | [1] | COVER; OIL PORT | |
| 054. | 1132191620 | [1] | GASKET; OIL PIPE | |
| 076(B). | 0501510350 | [1] | BOLT; OIL FILTER | A M10X35W/LK&PL WASHER |
| 076(B). | 0506510350 | [1] | BOLT; OIL FILTER | M10X35 W/LK WASHER |
| 076(C). | 0501512350 | [1] | BOLT; OIL FILTER | A M12X35W/LK&PL WASHER |
| 076(C). | 0506512350 | [1] | BOLT; OIL FILTER | M12X35W/LK&PL WASHER |
| 076(D). | 1090200591 | [1] | BOLT; OIL FILTER | M10X135 |
| 076(E). | 5090200190 | [2] | BOLT; OIL FILTER | M8X133 |
| 083. | 9111291280 | [1] | CUP; SEALING,BODY,OIL COOLER & FILTER | OD=20 |
| 085. | 1132191460 | [1] | PLUG; DRAIN UNIT,OIL FILTER | |
| 086. | 1132191470 | [1] | GASKET; DRAIN UNIT,OIL FILTER | |
| 087. | 1132191480 | [1] | SPRING; DRAIN UNIT,OIL FILTER | |
| 088. | 9132620090 | [1] | VALVE; DRAIN UNIT,OIL FILTER | |
| 103(A). | 0501408280 | [24] | BOLT; OIL COOLER | C M8X28 W/LK&PL WASHER |
| 103(A). | 0506408280 | [24] | BOLT; OIL COOLER | M8X28 W/LK&PL WASHER |
| 103(B). | 5090000311 | [2] | BOLT; OIL COOLER | M8X138 |
| 103(C). | 9098012750 | [2] | BOLT; OIL COOLER | M8X155 |
| 106. | 9091505080 | [4] | WASHER; LK,OIL COOLER | A |
| 106. | 0915105080 | [4] | WASHER; LK,OIL COOLER | |
| 107. | 9091605080 | [4] | WASHER; PL,OIL COOLER | A |
| 107. | 0916105080 | [4] | WASHER; PL,OIL COOLER | |
| 185. | 1131600171 | [1] | VALVE; OIL RELIEF,OIL COOLER | |
| 186. | 9095652280 | [1] | GASKET; RELIEF VLV,OIL COOLER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 200. | 0031573000 | [1] | PIPE; VINYL,WATER DRAIN | L=360,S.B L=3000 |
| 200. | 0034573000 | [1] | PIPE; VINYL,WATER DRAIN | L=360,S.B L=3000 |
| 201. | 9099147010 | [1] | PIPE; VINYL,OIL DRAIN | L=900,S.B L=10000 |
| 208. | 1137212860 | [1] | PIPE; WATER,HTR | |
| 321. | 1096232970 | [1] | GASKET; OIL FILTER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 331(A). | 9091605100 | [1] | WASHER; PL,OIL FILTER | A |
| 331(A). | 0916105100 | [1] | WASHER; PL,OIL FILTER | |
| 331(B). | 9091605080 | [2] | WASHER; PL,OIL FILTER | A |
| 331(B). | 0916105080 | [2] | WASHER; PL,OIL FILTER | |
| 338(B). | 1132009691 | [1] | FILTER ASM; OIL PARTIAL | |
| 390(B). | 1132121603 | [1] | BODY; OIL FILTER,PARTIAL | |
| 391(B). | 1132401632 | [2] | CARTRIDGE; OIL FILTER,PARTIAL | |
| 462(A). | 1097041000 | [1] | CLIP; HOSE,DRAIN | |
| 462(B). | 8970157541 | [1] | CLIP; HOSE,DRAIN | |
| 469. | 1112191771 | [1] | GASKET; OIL COOLER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 471. | 8941235261 | [2] | CLIP; HOSE | |
| 535. | 1096601742 | [1] | CONNECTOR; HEATER | |
| 536. | 1093606690 | [1] | HOSE; RUBBER,CONN | |
