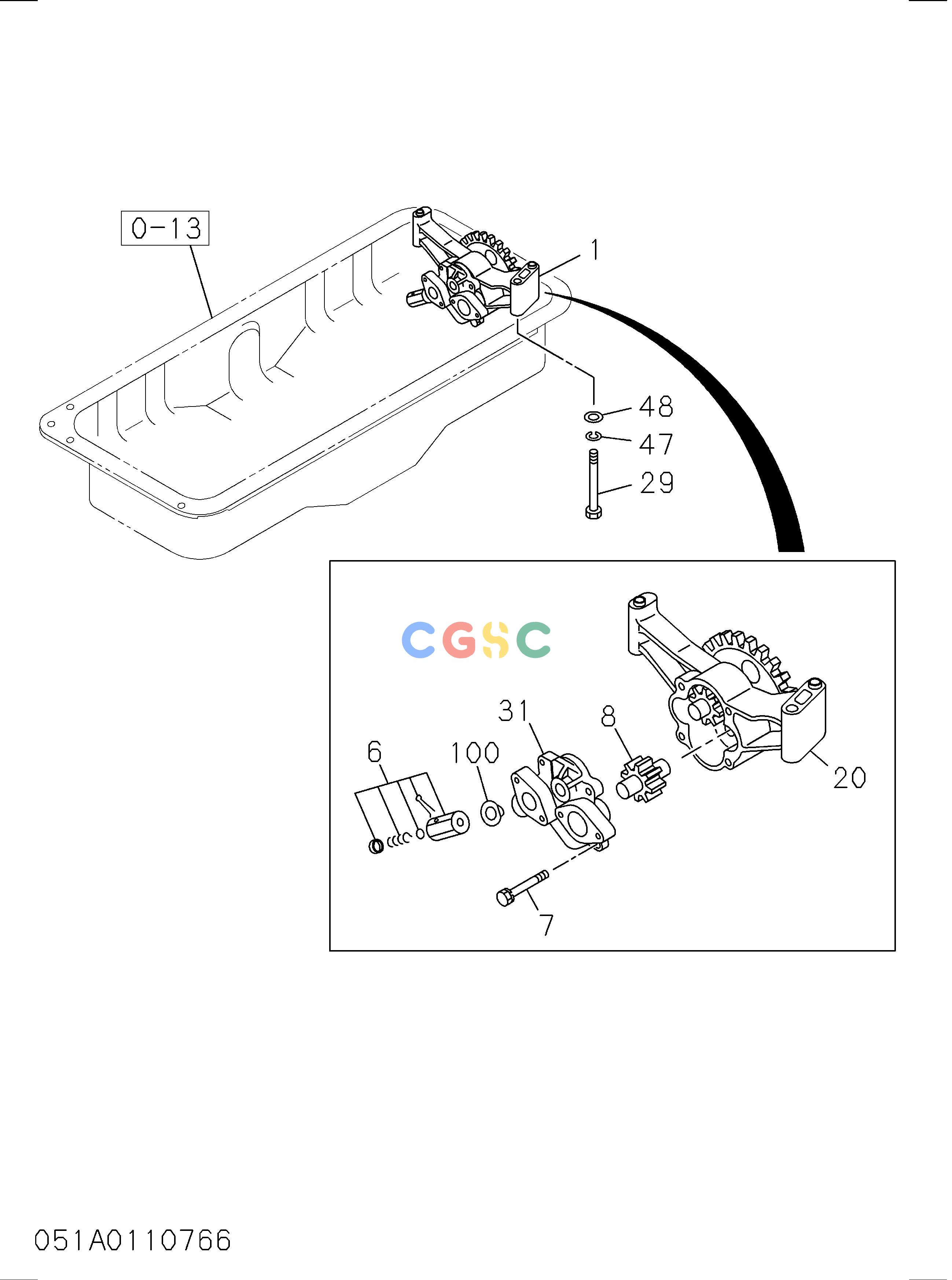

日立零件查询（CD2000）051: OIL PUMP AND OIL STRAINER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
244 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1131001912 | [1] | PUMP ASM; OIL | |
| 006. | 1131600180 | [1] | VALVE ASM; RELIEF,OIL PUMP | |
| 007. | 0500408350 | [4] | BOLT; COVER,OIL PUMP | A M8X35 W/LK WASHER |
| 007. | 0505408350 | [4] | BOLT; COVER,OIL PUMP | M8X35 W/LK WASHER |
| 008. | 1131200590 | [1] | GEAR; DRIVEN,OIL PUMP | |
| 020. | 1131200630 | [1] | GEAR; DRIVE,OIL PUMP | |
| 029. | 0168060800 | [3] | BOLT; OIL PUMP | A M10X80 |
| 029. | 0168560800 | [3] | BOLT; OIL PUMP | M10X80 |
| 031. | 1131130580 | [1] | COVER; OIL PUMP | |
| 047. | 9091508100 | [3] | WASHER; LK,OIL PUMP | A |
| 047. | 0915108100 | [3] | WASHER; LK,OIL PUMP | |
| 048. | 9091646100 | [3] | WASHER; PL,OIL PUMP | A |
| 048. | 0916146100 | [3] | WASHER; PL,OIL PUMP | |
| 050. | 1096232200 | [1] | GASKET; OIL PIPE,STRAINER TO PUMP | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 051. | 1133128960 | [1] | STRAINER & PIPE ASM; OIL | |
| 063. | 0500408200 | [2] | BOLT; OIL PIPE,STRAINER TO PUMP | C M8X20 W/LK WASHER |
| 063. | 0505408200 | [2] | BOLT; OIL PIPE,STRAINER TO PUMP | M8X20 W/LK WASHER |
| 100. | 1095300040 | [1] | WASHER; LK,RELIEF VLV,OIL PUMP | |
| 117. | 0501408160 | [2] | BOLT; STAY TO CRANKCASE | A M8X16 W/LK&PL WASHER |
| 117. | 0506408160 | [2] | BOLT; STAY TO CRANKCASE | M8X16 W/LK&PL WASHER |
