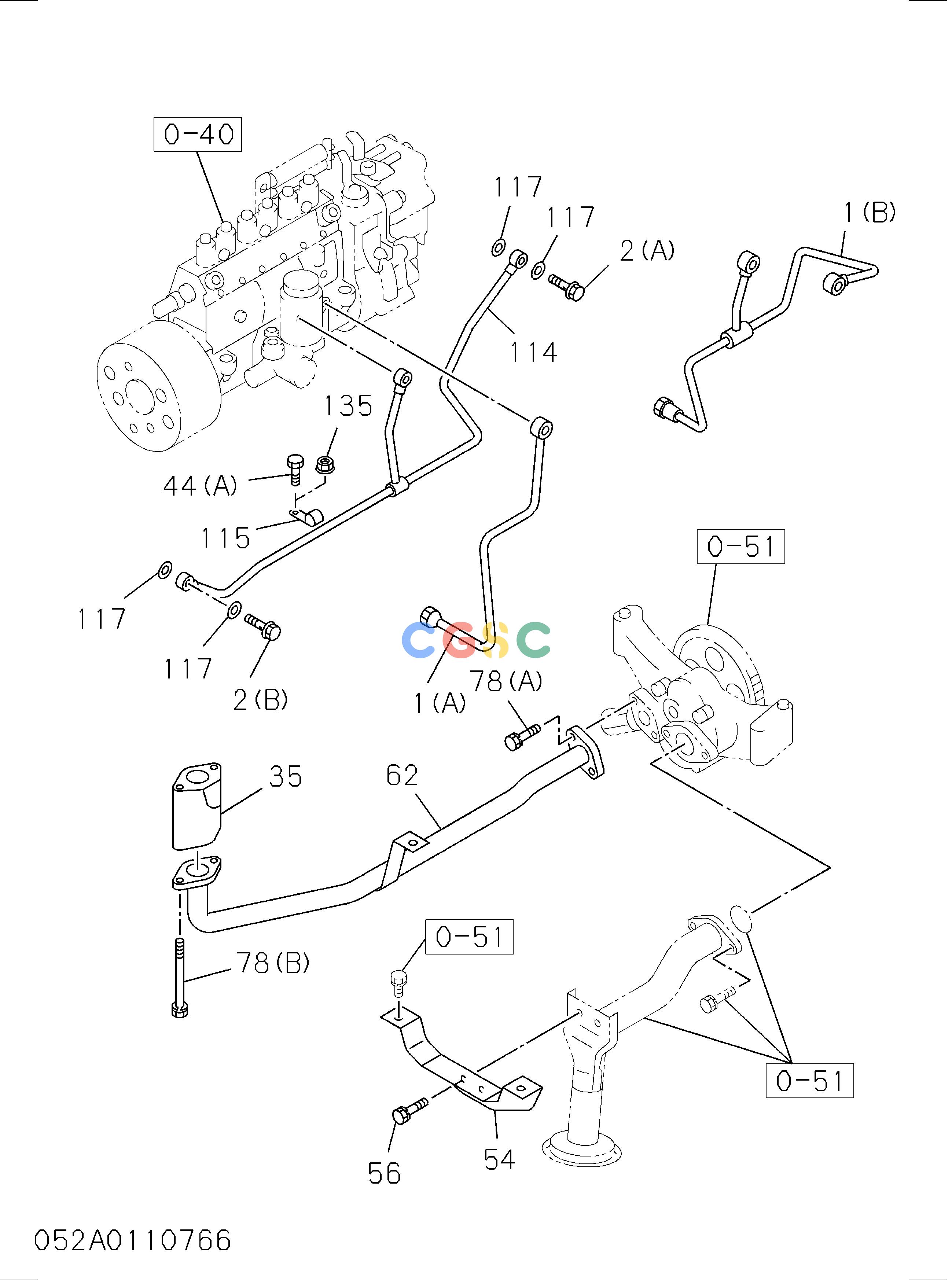

日立零件查询（CD2000）052: OIL AND VACUUM PIPING; ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
554 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(A). | 1133133370 | [1] | PIPE; OIL,INJ PUMP TO C/BL | |
| 002(A). | 1096751830 | [1] | BOLT; EYE,OIL PIPE | |
| 002(B). | 1096750770 | [1] | BOLT; EYE,OIL PIPE | |
| 002(B). | 1096750770 | [2] | BOLT; EYE,OIL PIPE | A |
| 002(B). | 8973722380 | [2] | BOLT; EYE,OIL PIPE | |
| 035. | 1132600860 | [1] | VALVE ASM; DRAIN BACK | |
| 040(B). | 0500408250 | [2] | BOLT; OIL PIPE | A |
| 040(B). | 0505408250 | [2] | BOLT; OIL PIPE | |
| 040(C). | 0500510250 | [2] | BOLT; OIL PIPE | C |
| 040(C). | 0505510250 | [2] | BOLT; OIL PIPE | |
| 040(D). | 9099062051 | [1] | BOLT; OIL PIPE | |
| 044(B). | 0280808120 | [1] | BOLT; CLIP,OIL PIPE | A M8X12 FLANGE |
| 044(B). | 0280508120 | [1] | BOLT; CLIP,OIL PIPE | M8X12 FLANGE |
| 044(C). | 0500406250 | [1] | BOLT; CLIP,OIL PIPE | C M6X25 W/LK WASHER |
| 044(C). | 0505406250 | [1] | BOLT; CLIP,OIL PIPE | M6X25 W/LK WASHER |
| 048(A). | 5097040371 | [1] | CLIP; OIL PIPE | |
| 048(B). | 5097003510 | [2] | CLIP; OIL PIPE | |
| 048(B). | 8980337800 | [2] | CLIP; OIL PIPE | |
| 048(C). | 9095250350 | [1] | CLIP; OIL PIPE | A |
| 048(C). | 0952350350 | [1] | CLIP; OIL PIPE | |
| 054. | 1133451820 | [1] | STAY; OIL STRAINER | |
| 056. | 0501408160 | [2] | BOLT; STAY TO BRKT | A |
| 056. | 0506408160 | [2] | BOLT; STAY TO BRKT | |
| 062. | 1133132740 | [1] | PIPE; OIL,PUMP TO C/BL | |
| 063(C). | 1133136970 | [1] | PIPE; OIL,TURBOCHARGER FEED | |
| 078(A). | 0500408200 | [2] | BOLT; OIL PIPE,PUMP TO BODY | C |
| 078(A). | 0505408200 | [2] | BOLT; OIL PIPE,PUMP TO BODY | |
| 078(B). | 0501408000 | [2] | BOLT; OIL PIPE,PUMP TO BODY | C |
| 078(B). | 0506408000 | [2] | BOLT; OIL PIPE,PUMP TO BODY | |
| 114. | 1133126100 | [1] | PIPE ASM; OIL,BODY | |
| 115. | 9095246250 | [2] | CLIP; PIPE,INJ PUMP | A ID=7 L=16 |
| 115. | 0952346250 | [2] | CLIP; PIPE,INJ PUMP | ID=7 L=16 |
| 117. | 1096300830 | [7] | GASKET; JOINT,OIL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 117. | 1096300830 | [7] | GASKET; JOINT,OIL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 135. | 0911501080 | [2] | NUT; CLIP | A |
| 135. | 0911801080 | [2] | NUT; CLIP | |
| 144(B). | 1097005470 | [1] | CLIP; OIL PIPE,INJ PUMP | |
| 144(D). | 1097005500 | [1] | CLIP; OIL PIPE,INJ PUMP | |
| 147(B). | 1096233590 | [1] | GASKET; OIL PIPE TO TURBOCHARGER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 147(C). | 9095714100 | [2] | GASKET; OIL PIPE TO TURBOCHARGER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 149. | 1133136981 | [1] | PIPE; OIL RETURN,TURBOCHARGER | |
| 150. | 1096232970 | [1] | GASKET; OIL PIPE TO C/BL | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 160(B). | 1133133400 | [1] | PIPE; OIL,PARTIAL FILTER FEED | |
| 163. | 1096750860 | [2] | BOLT; EYE,OIL PIPE,PARTIAL FILTER | |
| 164. | 1096300850 | [4] | GASKET; EYE BOLT,OIL PIPE,FILTER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 371. | 0286808250 | [2] | BOLT; STAY | A |
| 371. | 0286508250 | [2] | BOLT; STAY | |
| 397. | 1133190480 | [1] | STAY; OIL PIPE | |
| 440(A). | 9091505100 | [1] | WASHER; LK,FILTER | A |
| 440(A). | 0915105100 | [1] | WASHER; LK,FILTER | |
| 440(B). | 9091505080 | [2] | WASHER; LK,FILTER | A |
| 440(B). | 0915105080 | [2] | WASHER; LK,FILTER | |
