斗山零件查询FRONT PIPING SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

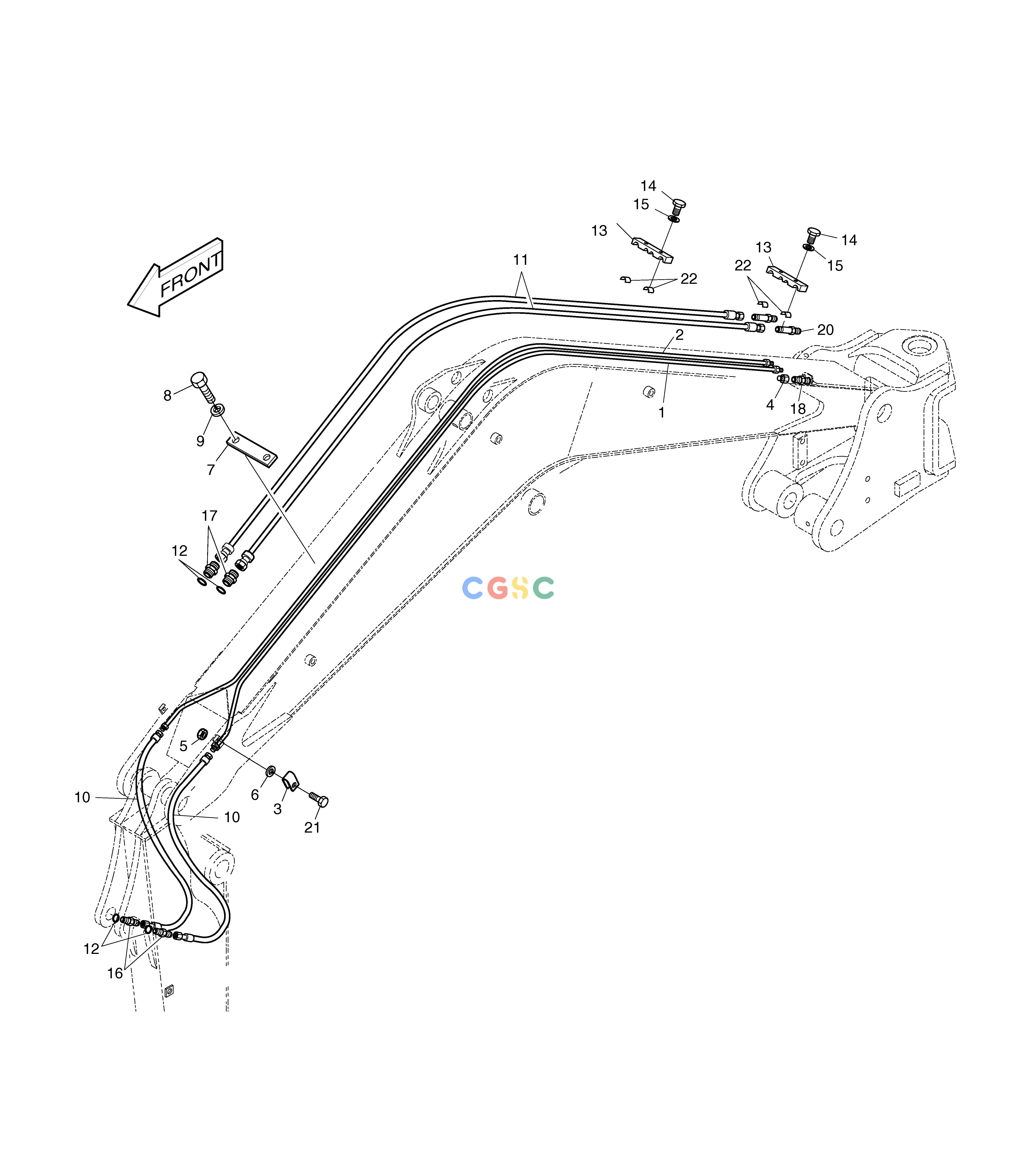

400-00585
|
[-] |
FRONT PIPING
|
|
| 1. |
2182-1660A
|
[1] |
PIPE
|
|
| 10. |
DS2053738
|
[2] |
HOSE PF1/4-600L
|
|
| 11. |
2184-1026D455
|
[2] |
HOSE PF3/8-930L
|
|
| 12. |
S8000111
|
[4] |
O-RING
|
|
| 13. |
2124-1626
|
[2] |
CLAMP
|
|
| 14. |
S0509053
|
[4] |
. BOLT
|
|
| 15. |
S5102503
|
[4] |
. WASHER
|
|
| 16. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 17. |
2181-1126D39
|
[2] |
ADAPTER
|
|
| 18. |
2181-2718
|
[2] |
ADAPTER;JOINT
|
|
| 2. |
2182-1661A
|
[1] |
PIPE
|
|
| 20. |
2181-2671A
|
[2] |
ADAPTER PF3/8
|
|
| 21. |
S0512353
|
[2] |
BOLT M10X1.5X35
|
|
| 22. |
160-00037
|
[4] |
PLATE;RUBBER
|
|
| 3. |
2124-1628
|
[2] |
CLAMP
|
|
| 4. |
2181-2820D2
|
[2] |
PLUG
|
|
| 5. |
S4012633
|
[2] |
NUT
|
|
| 6. |
S5102603
|
[2] |
. WASHER
|
|
| 7. |
2124-1644
|
[1] |
CLAMP
|
|
| 8. |
S0508653
|
[2] |
BOLT
|
|
| 9. |
S5102503
|
[2] |
. WASHER
|
|
