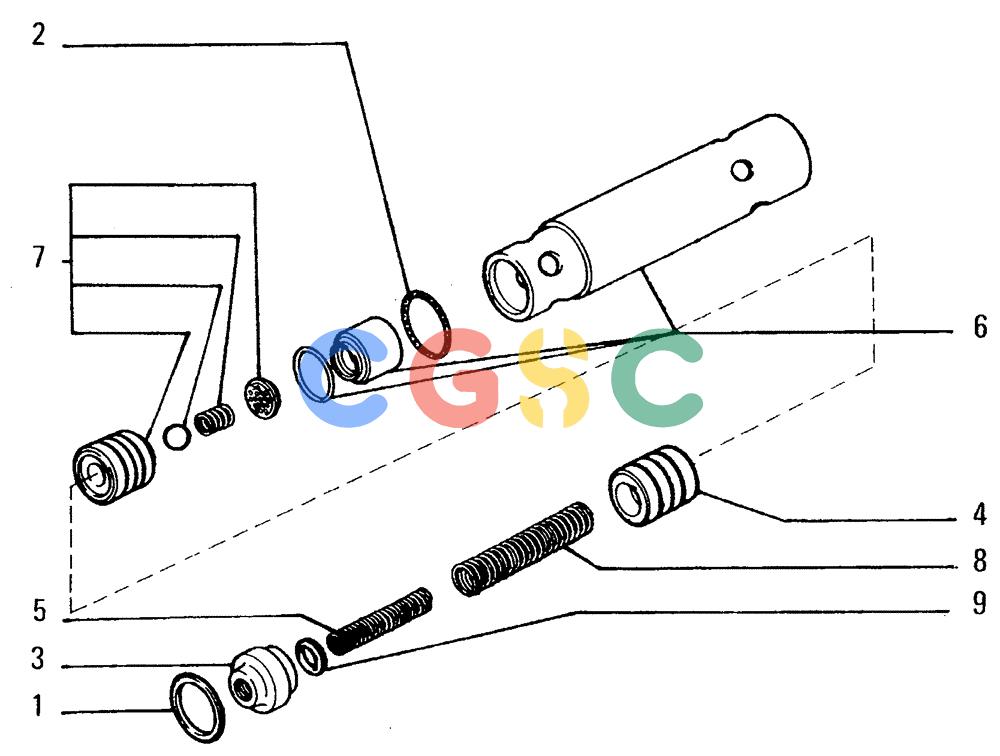

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[010]) - TRANSMISSION-TRIMMER VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
837 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11057876 | [1] | SNAP RING,M20, Int | LECRING, LOCKING, M20, Int |
| 2. | 14453681 | [1] | O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro | LEC0-RING 1,78x20x35 Superseded by part number: 5135736 |
| 3. | 79040793 | [1] | PLUG | LEC |
| 4. | 79040798 | [1] | PISTON | LEC |
| 5. | 79044612 | [1] | SPRING | LEC |
| 6. | 79045518 | [1] | BODY | LEC- ASSEMBLY |
| 7. | 79053154 | [1] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY |
| 8. | 79053168 | [1] | SPRING | LEC |
| 9. | 79053475 | [12] | WASHER | LEC |
