纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[011]) - TRANSMISSION-CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
479 次

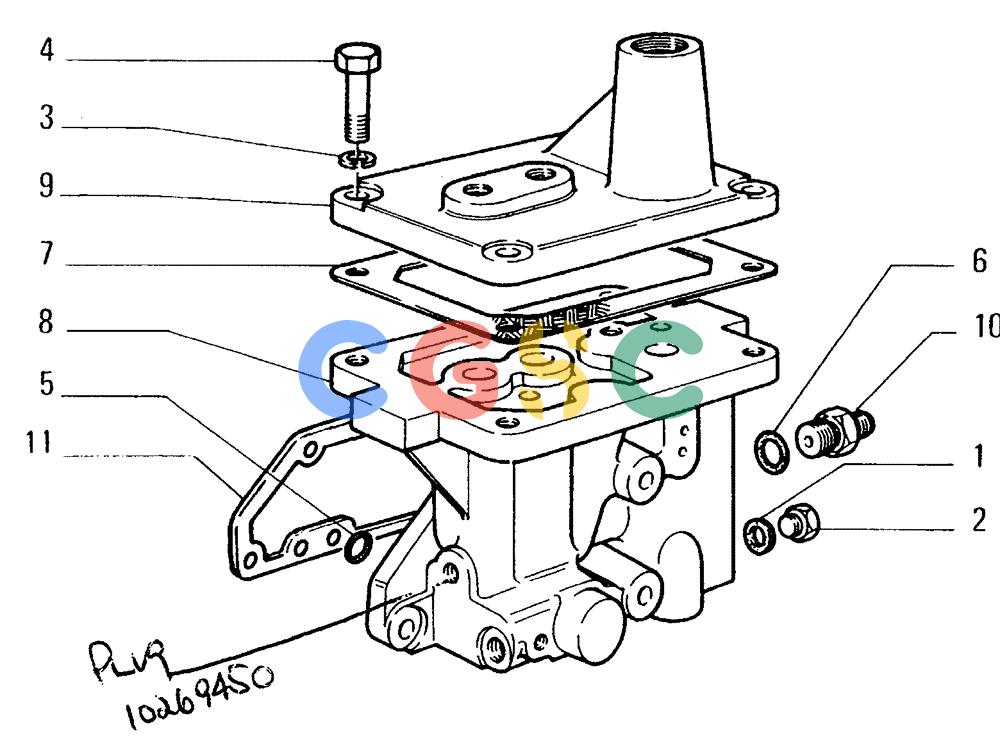

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10296160 | [2] | SEALING WASHER,M12.2 x 18 x 1, Copper | MKTGASKET 12,2x18 Superseded by part number: 4858607 |
| 2. | 10300511 | [2] | PLUG,M12 x 1.5 x 12, Cl5.8 | JES12x1,5x8 |
| 3. | 10516871 | [4] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER 10x2,5 Superseded by part number: 10571873 |
| 4. | 11306931 | [4] | BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd | BHBSCREW 10x1,25x30 Superseded by part number: 11306934 |
| 5. | 14456881 | [4] | O-RING,0.362" ID x 0.103" Width | JES-110, Cl 7, .361" ID x .103" Thk (M9.19 ID x 2.62 Thk) |
| 7. | 79012130 | [1] | GASKET | LEC Superseded by part number: 76028171 |
| 8. | 79056940 | [1] | BODY | LEC Superseded by part number: 79113509 |
| 9. | 79056946 | [1] | COVER | LEC |
| 10. | 79069345 | [1] | HYD CONNECTOR | LECFITTING |
| 11. | 79035287 | [1] | GASKET | LEC Superseded by part number: 76028170 |
| 6. | 14457281 | [1] | O-RING,0.612" ID x 0.103" Width | TTF-114, Cl 7, .612" ID x .103" Thk |
