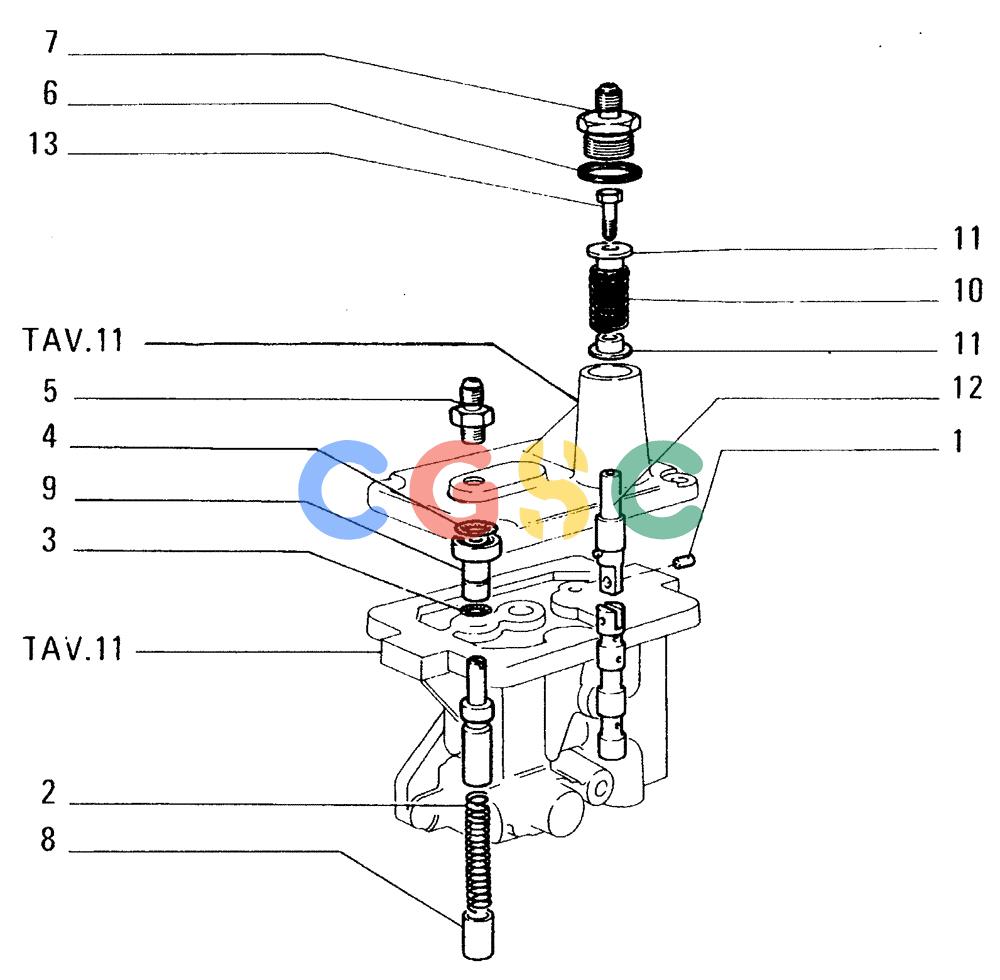

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[012]) - TRANSMISSION-CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
908 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 575888 | [1] | PIN | LEC |
| 2. | 581235 | [2] | SPRING | LEC |
| 3. | 14457081 | [2] | O-RING,12.37mm ID x 2.62mm | TTF-112, Cl 7, .487" ID x .103" Thk Superseded by part number: 17281581 |
| 4. | 5135738 | [2] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF-115, Cl 7, .674" ID x .103" Thk (M17.12 x 2.62 Thk) |
| 5. | 71311870 | [2] | HYD CONNECTOR | TORFITTING |
| 6. | 79022167 | [1] | WASHER | LECSEAL Superseded by part number: 71303419 |
| 7. | 79034409 | [1] | HYD CONNECTOR | LECFITTING |
| 8. | 79056944 | [2] | SPACER | LEC |
| 9. | 79056945 | [2] | SPACER | LEC Superseded by part number: 79113514 |
| 10. | 79056948 | [1] | SPRING | LEC |
| 11. | 79056949 | [2] | CUP | LEC |
| 12. | 79056950 | [1] | PLUNGER | LEC |
| 13. | 79065947 | [1] | BOLT,Hex, M6 x 1 x 22mm, Cl 8.8 | LEC |
