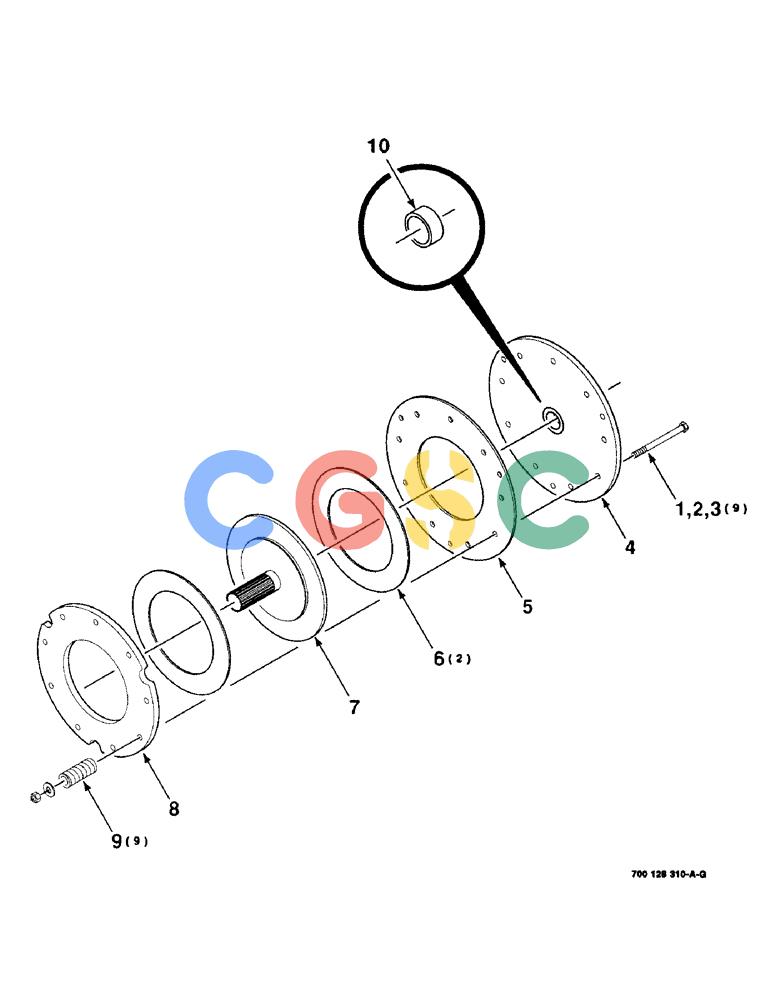

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (2-12) - CLUTCH ASSEMBLY (S.N. CFH0045226 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-672
|
[9] |
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
|
CAS
3/8-16 X 4-1/2 C Superseded by part number: 86505980
|
| 2. |
495-21044
|
[9] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
231-1406
|
[9] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8 LIGHT HEX STOP NUT
|
| 4. |
700128311
|
[1] |
LARGE PLATE
|
CAS
PLATE WA - mounting, clutch (Includes item 10)
|
| 5. |
700128313
|
[1] |
LARGE PLATE
|
CAS
PLATE - inner, pressure
|
| 6. |
700710946
|
[2] |
CLUTCH PLATE
|
CAS
DISC - clutch
|
| 7. |
700128315
|
[1] |
ROTOR
|
CAS
WA - clutch
|
| 8. |
700128317
|
[1] |
LARGE PLATE
|
CAS
PLATE - outer, pressure
|
| 9. |
700707442
|
[9] |
SPRING
|
CAS
- compression
|
| 10. |
852749
|
[1] |
BRONZE BUSHING
|
CAS
BUSHING - bronze
|
