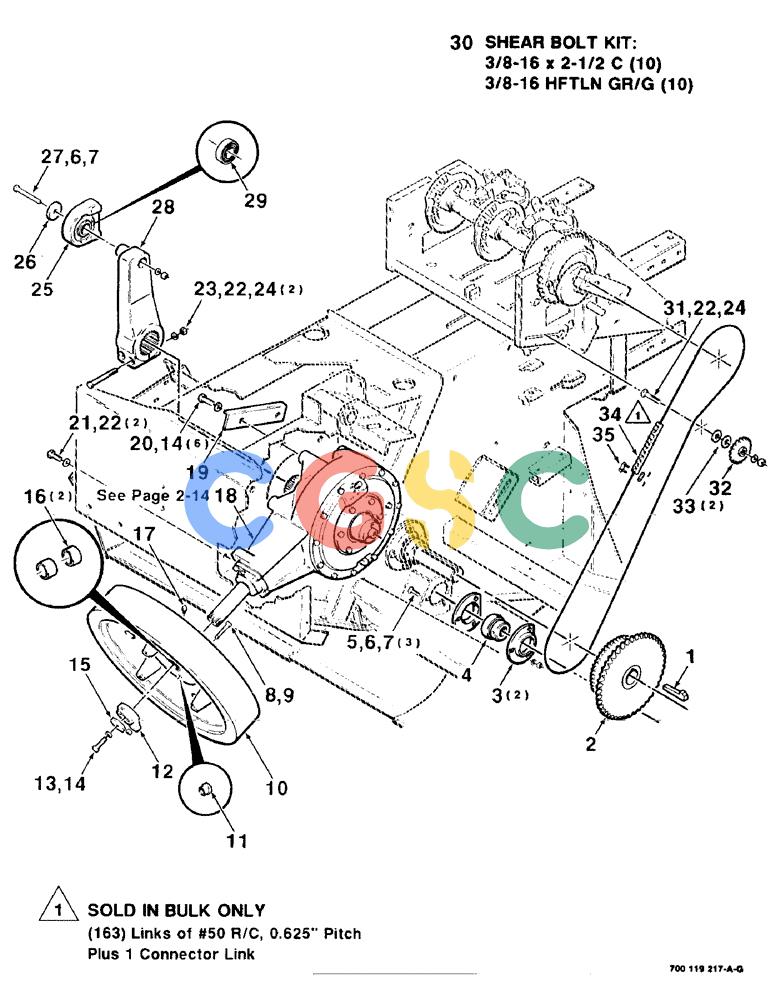

| 1. |
61747
|
[1] |
KEY
|
CAS
1/2 X 1/2 X 2-1/2 GIB KEY
|
| 2. |
700119296
|
[1] |
PINION
|
L
SPROCKET WA - double 40 tooth and 44 tooth
|
| 3. |
51200755
|
[2] |
FLANGE
|
CAS
- bearing
|
| 4. |
565672R92
|
[1] |
SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"
|
IH
BEARING - spherical Superseded by part number: 84330041
|
| 5. |
434-616
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 6. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 7. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 8. |
413-640
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| 9. |
231-4116
|
[1] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 10. |
700119304
|
[1] |
FLYWHEEL
|
CAS
ASSEMBLY (Includes items 11 and 16)
|
| 11. |
6855555
|
[1] |
SLEEVE
|
CAS
- shear
|
| 12. |
700119303
|
[1] |
ARM
|
CAS
- shear bolt
|
| 13. |
413-1024
|
[1] |
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 88062
|
| 14. |
492-11062
|
[7] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 15. |
6855423
|
[1] |
WASHER
|
CAS
|
| 16. |
8052052
|
[2] |
BRONZE BUSHING
|
CAS
BEARING - bronze
|
| 17. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 18. |
700119392
|
[1] |
GEARBOX ASSY
|
CAS
GEARBOX ASSEMBLY
|
| 19. |
700112232
|
[1] |
ANGLE
|
CAS
STRAP
|
| 20. |
413-1020
|
[6] |
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 280319
|
| 21. |
413-816
|
[2] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
| 22. |
80679
|
[5] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 23. |
413-880
|
[2] |
BOLT,Hex, 1/2" - 13 x 5", Gr 5
|
CAS
1/2-13 X 5 C Superseded by part number: 87997
|
| 24. |
425-108
|
[3] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 25. |
700112336
|
[1] |
BEARING ASSY,38.11mm ID
|
CAS
BEARING HOUSING ASSEMBLY (Includes item 29)
|
| 26. |
6875314
|
[1] |
WASHER
|
CAS
|
| 27. |
113-252
|
[1] |
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
|
CAS
Superseded by part number: 86505979
|
| 28. |
700112218
|
[1] |
CRANK
|
CAS
ARM - crank
|
| 29. |
700706182
|
[1] |
SPHERICAL BEARING,38.113 mm ID x 90 mm OD x 26.67 mm
|
L
BEARING - spherical
|
| 30. |
700116639
|
[1] |
KIT, SHEARBOLT, PAK
|
CAS
SHEAR BOLT KIT - package includes: 7701899 (10) and 704734 (10)
|
| 31. |
433-836
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5
|
CAS
1/2-13 x 2-1/4 RHSNB Superseded by part number: 280504
|
| 32. |
565442R91
|
[1] |
SPROCKET
|
IH
- idler, 17 tooth Superseded by part number: 87302107
|
| 33. |
495-11066
|
[2] |
WASHER,5/8", SAE
|
CAS
5/8 NARROW PLAIN WASHER Superseded by part number: 87365
|
| 34. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
CHAIN - roller, #50 (10 foot bulk)
|
| 35. |
1310D
|
[1] |
LINK
|
IH
- connector, #50 R/C Superseded by part number: 87034815
|
