700119392
|
[1] |

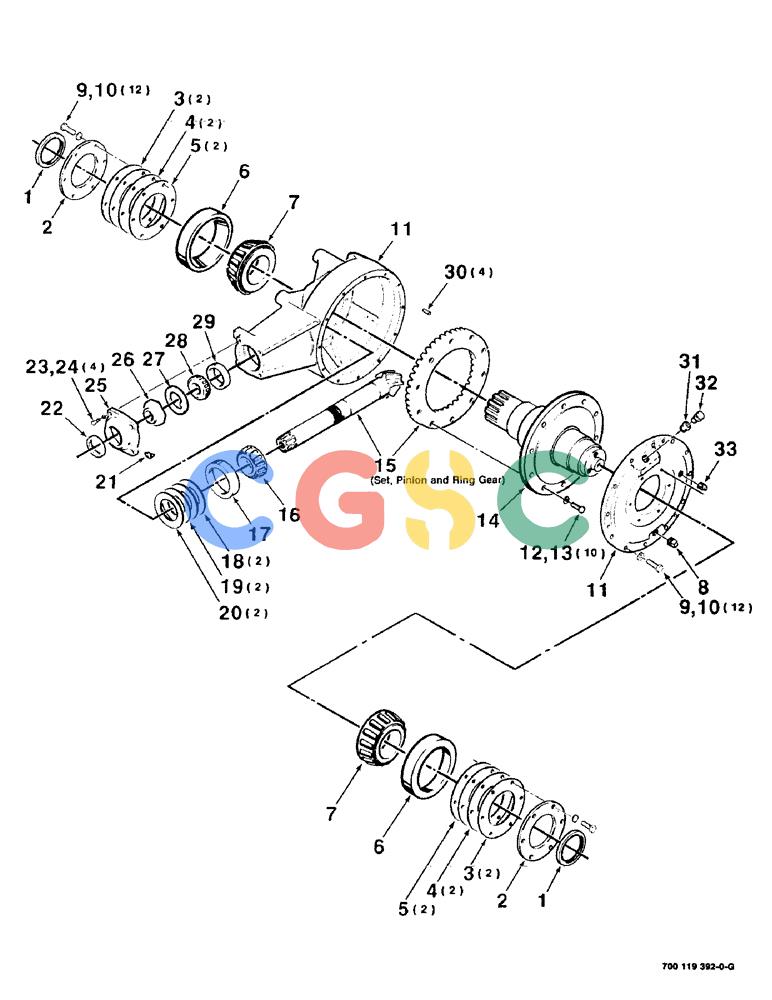

GEARBOX ASSY
|
CAS
GEARBOX ASSEMBLY - complete
|
| 1. |
7807332
|
[2] |
OIL SEAL,85.65mm ID x 111.19mm OD x 9.93mm Thk
|
CAS
- oil
|
| 2. |
700119395
|
[2] |
RETAINER
|
CAS
- bearing
|
| 3. |
700709033
|
[4] |
SHIM
|
CAS
.010
|
| 4. |
700709034
|
[4] |
SHIM
|
CAS
.012
|
| 5. |
700709035
|
[4] |
SHIM
|
CAS
.015
|
| 6. |
ST897
|
[2] |
BEARING CUP,122.24mm OD x 29.72mm W
|
IH
CUP - bearing
|
| 7. |
A40163
|
[2] |
CONE
|
CAS
BEARING - cone
|
| 8. |
8746638
|
[1] |
PLUG
|
CAS
- drain, magnet
|
| 9. |
426-720
|
[24] |
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8
|
CAS
7/16-14 X 1-1/4 C GRD. 8 Superseded by part number: 86505834
|
| 10. |
492-11044
|
[24] |
LOCK WASHER,7/16"
|
CAS
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 11. |
700119393
|
[1] |
GEARBOX ASSY
|
CAS
HOUSING AND COVER ASSEMBLY (Includes items 9, 10 and 30)
|
| 12. |
326-820
|
[10] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
|
CAS
|
| 13. |
80679
|
[10] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 14. |
700112216
|
[1] |
HUB
|
CAS
- crank
|
| 15. |
700707408
|
[1] |
GEAR SET
|
CAS
- hypoid (Pinion and ring gear)
|
| 16. |
287679C1
|
[1] |
BEARING ASSY,50.8mm ID x 26.91mm W
|
IH
BEARING - cone
|
| 17. |
1968297C1
|
[1] |
BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm
|
IH
CUP - bearing Superseded by part number: 86017029
|
| 18. |
700704962
|
[2] |
SHIM
|
CAS
.010
|
| 19. |
700704963
|
[2] |
SHIM
|
CAS
.012
|
| 20. |
700704964
|
[2] |
SHIM
|
CAS
.015
|
| 21. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
1/4-28 X 45 DEGREE ZERK Superseded by part number: 87569
|
| 22. |
8044778
|
[1] |
SEAL
|
CAS
- grease
|
| 23. |
413-512
|
[4] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
| 24. |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 25. |
6855613
|
[1] |
CAP
|
CAS
- end
|
| 26. |
700703426
|
[1] |
NUT
|
CAS
- stake
|
| 27. |
876359
|
[1] |
WASHER
|
CAS
- keyed
|
| 28. |
ST2069
|
[1] |
TAPERED BEARING,1.7715" ID x 3.3475" OD x 0.9515"
|
IH
BEARING - cone
|
| 29. |
130503H
|
[1] |
BEARING CUP
|
IH
CUP - bearing Superseded by part number: 86900365
|
| 30. |
20138R1
|
[4] |
PIN
|
IH
3/8 X 1-1/4 DOWEL PIN
|
| 31. |
221-93
|
[1] |
REDUCER,Hex, 3/4" x 1/2" NPT
|
CAS
BUSHING - reducer
|
| 32. |
152127H1
|
[1] |
BREATHER,1/8"-27, Short
|
IH
PLUG - vent Superseded by part number: 219-433
|
| 33. |
746305
|
[1] |
PLUG
|
CAS
1/2-14 NPT SQUARE HEAD PIPE PLUG
|
