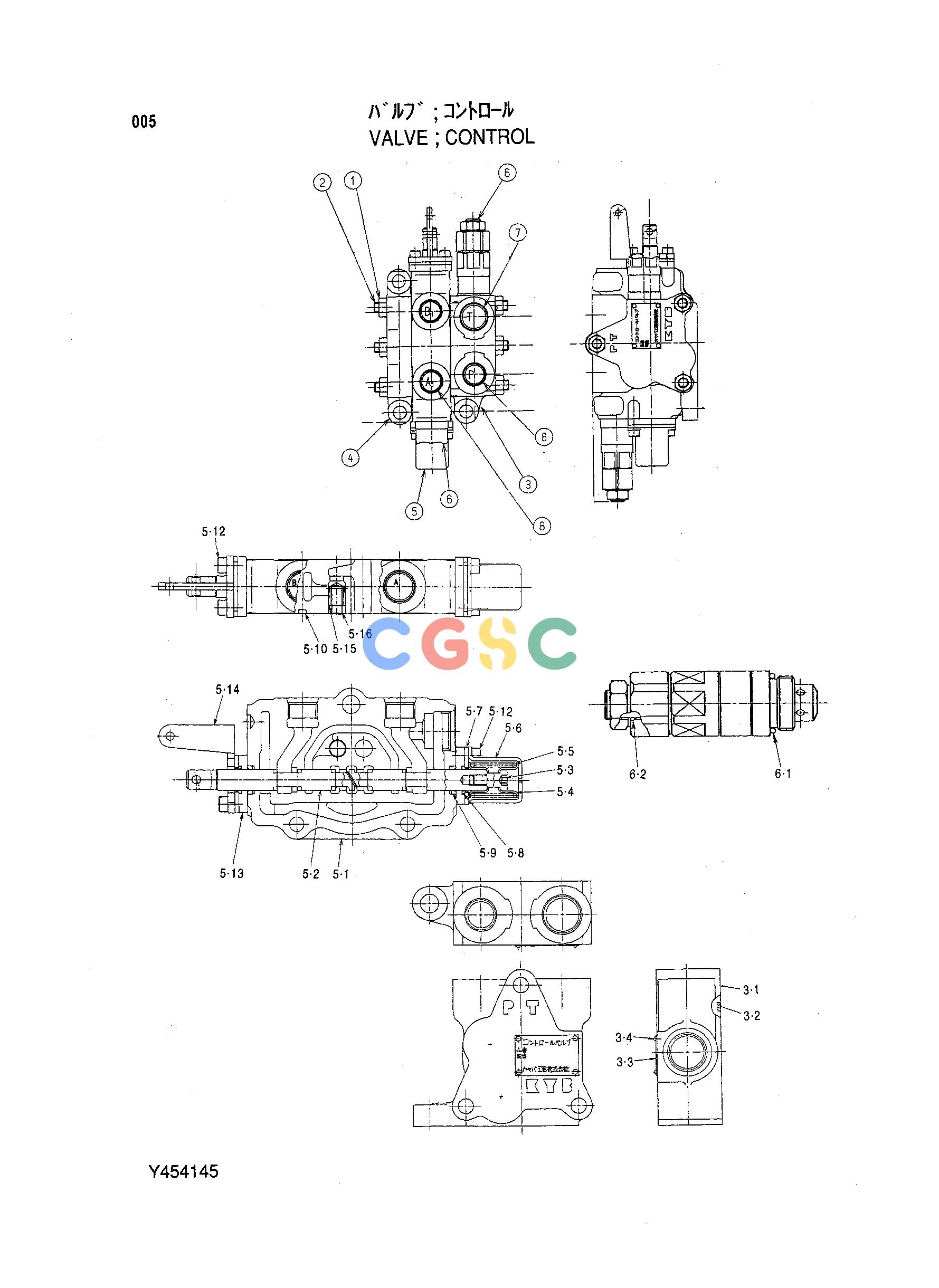

日立零件查询（CG15D）VALVE;CONTROL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
647 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y454145 | [1] | VALVE;CONTROL | Y454145 |
| 1. | 0218610 | [6] | NUT | |
| 2. | 0651604 | [3] | ROD;TIE | |
| 3. | 0651601 | [1] | INLET SECTION | |
| 3-1. | 0651602 | [1] | HOUSING | |
| 3-2. | A810055 | [1] | O-RING | |
| 3-3. | +++++++ | [1] | NAME-PLATE | |
| 3-4. | +++++++ | [4] | SCREW;DRIVE | |
| 4. | 0295601 | [1] | OUTLET-SECTION | |
| 5. | Y407064 | [1] | SPOOL-SECTION | |
| 5-1. | +++++++ | [1] | HOUSING | |
| 5-2. | +++++++ | [1] | SPOOL | |
| 5-3. | 0219004 | [1] | SCREW | |
| 5-4. | 0219005 | [2] | SEAT;SPRING | |
| 5-5. | 0429408 | [1] | SPRING | |
| 5-6. | 0219007 | [1] | CAP | |
| 5-7. | 0219008 | [2] | SEAL;PLATE | |
| 5-8. | 0219011 | [2] | WIPER | |
| 5-9. | Y407065 | [2] | SEAL | |
| 5-10. | A810055 | [1] | O-RING | |
| 5-12. | 0429314 | [4] | BOLT;SOCKET | |
| 5-13. | Y407066 | [2] | SPACER | |
| 5-14. | Y407067 | [1] | BRACKET | |
| 5-15. | 0429305 | [1] | VALVE;CHECK | |
| 5-16. | 0219010 | [1] | SPRING | |
| 6. | Y407068 | [2] | VALVE;RELIEF | |
| 6-1. | 0103025 | [1] | O-RING | |
| 6-2. | 4506320 | [1] | O-RING | |
| 7. | Y407069 | [1] | PLUG | |
| 8. | Y407070 | [3] | PLUG | |
