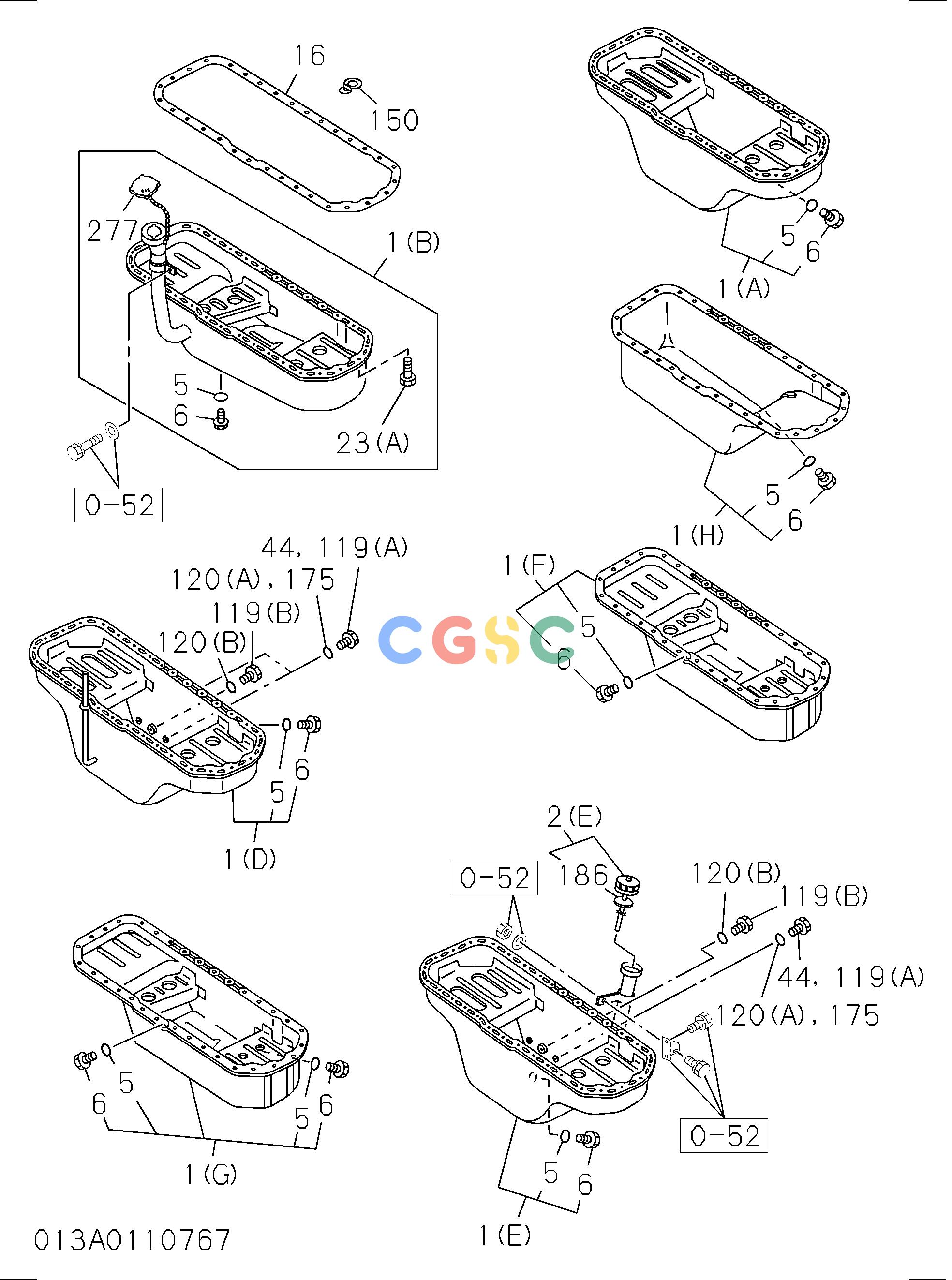

日立零件查询（CG45）OIL PAN AND LEVEL GAUGE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
144 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 5113603721 | [1] | PAN ASM; OIL | C |
| 1(A). | 1113607831 | [1] | PAN ASM; OIL | |
| 2(A). | 1117603033 | [1] | GAUGE; OIL LEVEL | |
| 5. | 1096230570 | [1] | GASKET; PLUG,OIL DRAIN | ID=24ALSO INCLUDED IN GASKET SET(ENGINE) |
| 6. | 9096620120 | [1] | PLUG; OIL DRAIN | M=20 |
| 16. | 1113670961 | [1] | GASKET; OIL PAN TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 16. | 1113671000 | [1] | GASKET; OIL PAN TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 23(A). | 0500408180 | [32] | BOLT; OIL PAN | |
| 150. | 9112290700 | [1] | CLIP; WATER,OIL DRAIN | |
| 153. | 9831514320 | [2] | THERMOMETER UNIT; OIL | |
