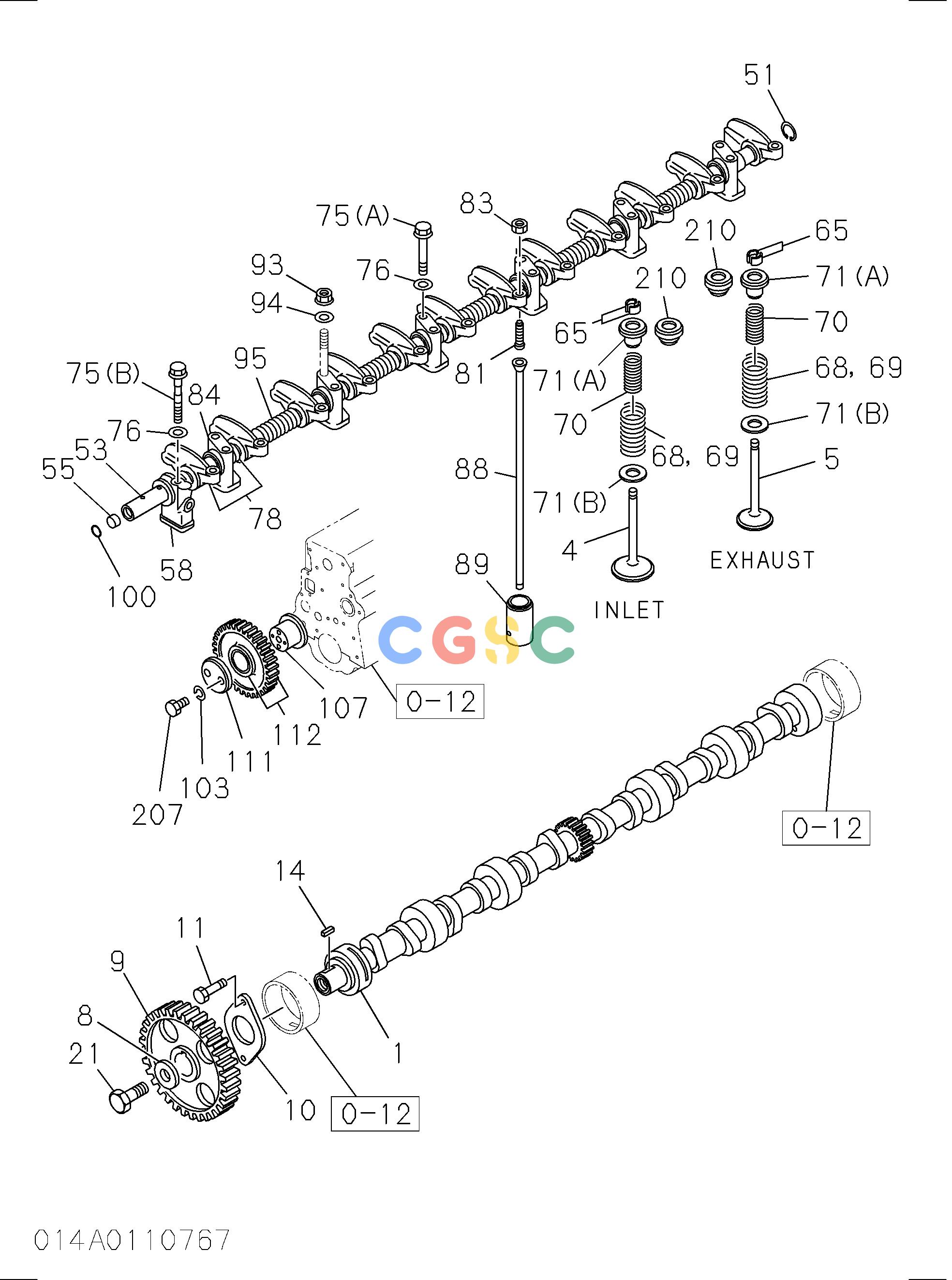

日立零件查询（CG45）CAMSHAFT AND VALVE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9125148031 | [1] | CAMSHAFT | |
| 4. | 1125510830 | [6] | VALVE; INL | |
| 5. | 1125520520 | [6] | VALVE; EXH | C |
| 5. | 1125521110 | [6] | VALVE; EXH | |
| 8. | 9098518503 | [1] | WASHER; CM/SHF GEAR | |
| 9. | 9125221471 | [1] | GEAR; CM/SHF | C Z=50 FC25 |
| 9. | 1125220162 | [1] | GEAR; CM/SHF | Z=50 S50C |
| 10. | 9116810150 | [1] | PLATE; THRUST | |
| 11. | 0500408250 | [2] | BOLT; THRUST PLATE TO C/BL | |
| 14. | 9080307130 | [1] | KEY; CM/SHF | |
| 21. | 9920614280 | [1] | BOLT; CM/SHF METAL,NO 7 | |
| 37(A). | 9116910480 | [1] | METAL; CM/SHF | |
| 37(B). | 9116930350 | [5] | METAL; CM/SHF | |
| 51. | 9091800190 | [1] | RING; SNAP,ROCKER ARM SHAFT | |
| 53. | 1126210621 | [1] | SHAFT; ROCKER ARM | |
| 53. | 1126210940 | [1] | SHAFT; ROCKER ARM | |
| 55. | 9126260050 | [2] | PLUG; ROCKER SHAFT END | |
| 58. | 5126280120 | [1] | BRACKET; ROCKER SHAFT,FRT | |
| 65. | 5125650060 | [24] | COLLAR; SPLIT | |
| 68. | 1125610800 | [12] | SPRING; VLV | |
| 71(A). | 8941145790 | [12] | SEAT; SPR | |
| 71(B). | 5125630010 | [12] | SEAT; SPR | |
| 72. | 1125690150 | [12] | SEAL; VLV GUIDE | C ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 72. | 8971201670 | [12] | SEAL; VLV GUIDE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 75(A). | 1090005670 | [8] | BOLT; BRKT | |
| 75(B). | 9096021480 | [1] | BOLT; BRKT | |
| 76. | 9098514300 | [9] | WASHER; PL,BRKT | |
| 78. | 5126110310 | [12] | ARM; ROCKER | |
| 78. | 1126112490 | [12] | ARM; ROCKER | |
| 81. | 9126160420 | [12] | SCREW; ADJ,ROCKER ARM | |
| 83. | 9091115080 | [12] | NUT; ADJ SCREW,LK | |
| 84. | 9126281050 | [6] | BRACKET; ROCKER SHAFT,INTER | |
| 88. | 1125750360 | [12] | ROD; PUSH | |
| 89. | 5125710032 | [12] | TAPPET; VLV | |
| 93. | 1094001160 | [4] | NUT; BRKT | |
| 94. | 9098514300 | [4] | WASHER; PL,BRKT | |
| 95. | 1095803350 | [5] | SPRING; ROCKER SHAFT | |
| 100. | 5096230600 | [1] | GASKET; ROCKER ARM SHAFT | |
| 103. | 9091505100 | [2] | WASHER; LK,THRUST COLLAR | |
| 107. | 9125310300 | [1] | SHAFT; IDLE GEAR | |
| 111. | 5125350011 | [1] | COLLAR; THRUST,IDLE GEAR | |
| 112. | 9125238014 | [1] | GEAR; IDLE | C Z=51 |
| 112. | 8941339373 | [1] | GEAR; IDLE | Z=51 (TUFFT) |
| 207. | 0108110550 | [2] | BOLT; SPINDLE TO THRUST PLATE | |
