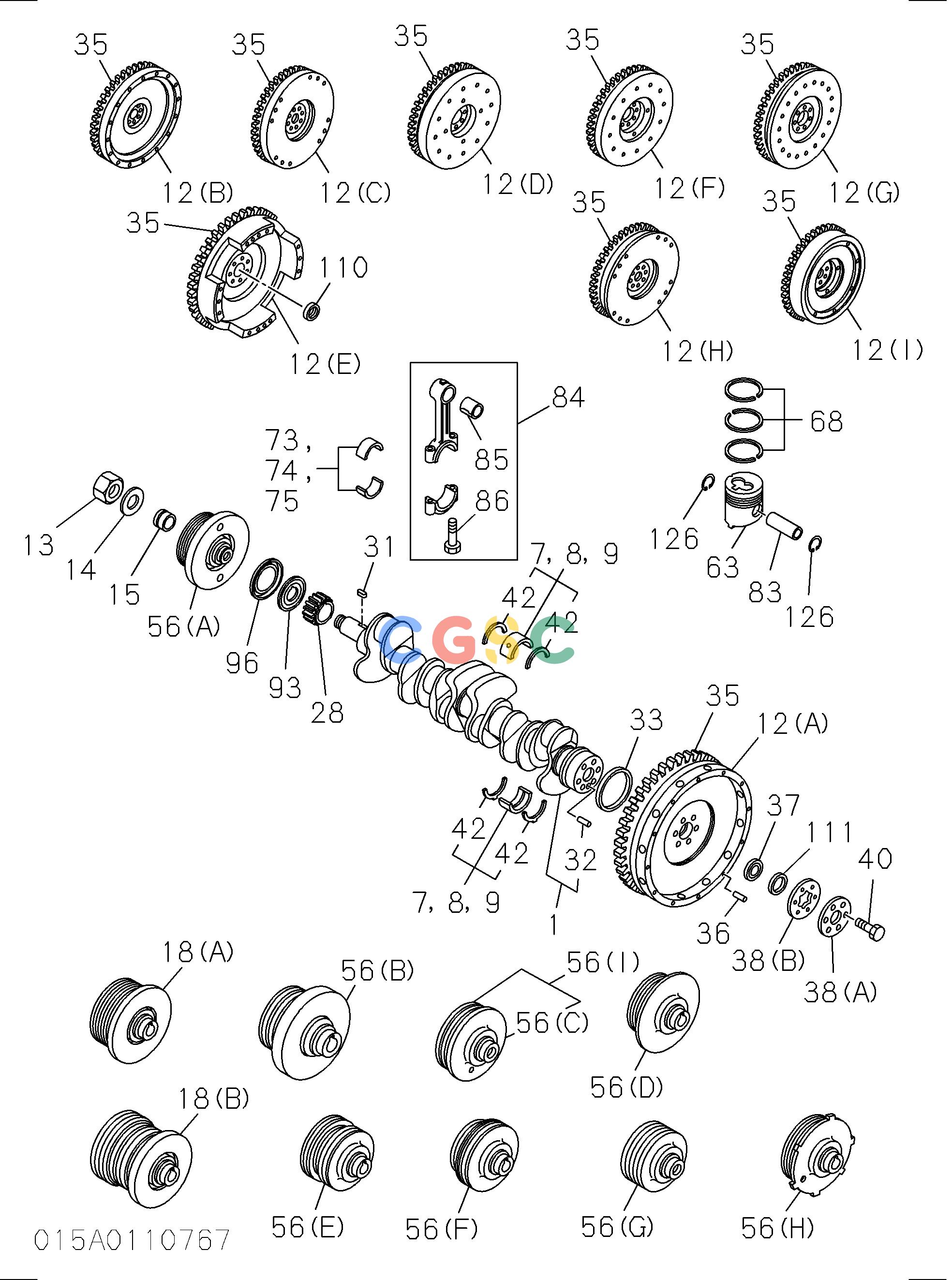

日立零件查询（CG45）CRANKSHAFT,PISTON AND FLYWHEEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1123104370 | [1] | CRANKSHAFT | |
| 7. | 1115100743 | [1] | METAL KIT; CRANKSHAFT,STANDARD | |
| 8. | 1115300741 | [1] | METAL KIT; CRANKSHAFT,U/S=0.25 | |
| 9. | 1115400741 | [1] | METAL KIT; CRANKSHAFT,U/S=0.50 | |
| 12(D). | 1123312251 | [1] | FLYWHEEL | |
| 13. | 9098401071 | [1] | NUT; STARTING HANDLE | |
| 14. | 9098514310 | [1] | WASHER; PULLEY DAMPER | |
| 15. | 9123790450 | [1] | BUSHING; TAPER,CR/SHF PULLEY | |
| 28. | 9125210430 | [1] | GEAR; CR/SHF | C Z=25 |
| 28. | 1125210080 | [1] | GEAR; CR/SHF | A Z=25 |
| 28. | 8971379101 | [1] | GEAR; CR/SHF | Z=25 |
| 31. | 5097380010 | [1] | KEY; FEATHER,CR/SHF | |
| 32. | 9081512200 | [1] | PIN; FLYWHEEL | |
| 35. | 1123330170 | [1] | GEAR; RING | Z=129 T=19 |
| 35. | 1123312251 | [1] | GEAR; RING | |
| 38(A). | 5123360081 | [1] | WASHER; FLYWHEEL | ID=48 |
| 40. | 9920616380 | [6] | BOLT; FLYWHEEL | |
| 42. | 1116800013 | [2] | WASHER; THRUST,CR/SHF | |
| 56(A). | 1123712420 | [1] | PULLEY; CR/SHF DAMPER | 3-GROOVE |
| 63. | 1121117530 | [6] | PISTON | GRADE=AXALSO INCLUDED IN LINER SET. |
| 63. | 1121117540 | [6] | PISTON | GRADE=CXALSO INCLUDED IN LINER SET. |
| 68. | 5121210050 | [6] | RING SET; PISTON,STANDARD | ALSO INCLUDED IN LINER SET. |
| 73. | 9122716080 | [6] | METAL SET; CONN ROD,STANDARD | |
| 74. | 9122736080 | [6] | METAL SET; CONN ROD,U/S=0.25 | |
| 75. | 9122746080 | [6] | METAL SET; CONN ROD,U/S=0.50 | |
| 83. | 9122116041 | [6] | PIN; PISTON | ALSO INCLUDED IN LINER SET. |
| 84. | 1122301041 | [6] | ROD ASM; CONN | |
| 85. | 1122510270 | [6] | BUSHING; CONNROD | ALSO INCLUDED IN LINER SET. |
| 86. | 1122350271 | [12] | BOLT; CONNROD | M20X49.5 |
| 93. | 1123620031 | [1] | THROWER; OIL,CR/SHF | |
| 96. | 5123620031 | [1] | THROWER; DUST,CR/SHF | |
| 126. | 8941075751 | [12] | RING; SNAP,PISTON PIN | ALSO INCLUDED IN LINER SET. |
