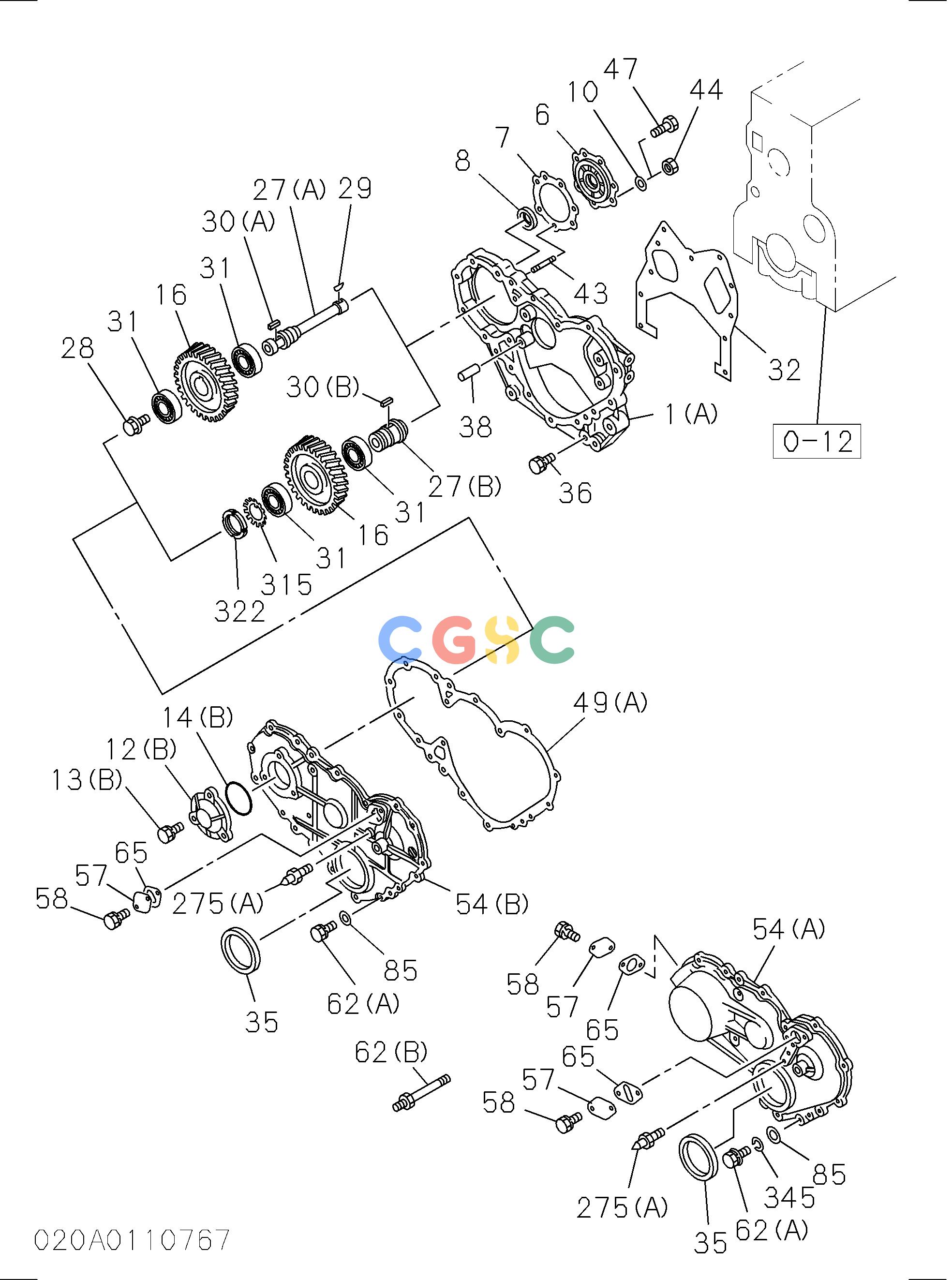

日立零件查询（CG45）TIMING GEAR CASE AND FLYWHEEL HOUSING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
468 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 5113110113 | [1] | CASE; TIMING GEAR | |
| 2(A). | 9113416099 | [1] | HOUSING; FLYWHEEL | |
| 2(A). | 8972290750 | [1] | HOUSING; FLYWHEEL | |
| 32. | 1113120140 | [1] | GASKET; GEAR CASE TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 32. | 8943706710 | [1] | GASKET; GEAR CASE TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 35. | 1096254380 | [1] | SEAL; OIL,CRANKSHAFT FRT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 36. | 0500408450 | [2] | BOLT; GEAR CASE | A |
| 36. | 0280808450 | [2] | BOLT; GEAR CASE | M8X45 FLANGE |
| 36. | 0500408200 | [4] | BOLT; GEAR CASE | A |
| 36. | 0286808200 | [4] | BOLT; GEAR CASE | M8X20 FLANGE |
| 38. | 9081510180 | [1] | PIN; GEAR CASE COVER | OD=10 L=18 |
| 49(A). | 8943632690 | [1] | GASKET; GEAR CASE TO COVER | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 49(A). | 8970222160 | [1] | GASKET; GEAR CASE TO COVER | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 49(A). | 1113220600 | [1] | GASKET; GEAR CASE TO COVER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 54(A). | 1113210790 | [1] | COVER; GEAR CASE | |
| 57. | 5113210090 | [2] | COVER; TIMING CHECK HOLE | |
| 58. | 0500406140 | [4] | BOLT; CHECK HOLE COVER | A |
| 58. | 0280806120 | [4] | BOLT; CHECK HOLE COVER | |
| 62(A). | 5090000841 | [5] | BOLT; COVER | A M8X55 W/LK WASHER |
| 62(A). | 0280808500 | [5] | BOLT; COVER | M8X50 FLANGE |
| 62(A). | 0501408250 | [7] | BOLT; COVER | A M8X25 W/LK & PL WASH |
| 62(A). | 0286808250 | [7] | BOLT; COVER | M8X25 FLANGE |
| 65. | 1112820130 | [2] | GASKET; COVER,TIMING CHECK HOLE | C |
| 65. | 8970276011 | [2] | GASKET; COVER,TIMING CHECK HOLE | |
| 85. | 9091605080 | [5] | WASHER; PL,COVER | ID=8 |
| 86(A). | 9839101012 | [1] | ELBOW; TACHOMETER DRIVE | |
| 93(A). | 1096234650 | [1] | GASKET; ELBOW | ID=47.7ALSO INCLUDED IN GASKET SET(ENGINE) |
| 175. | 1096253620 | [1] | SEAL; OIL,CR/SHF,RR | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 175. | 8970728231 | [1] | SEAL; OIL,CR/SHF,RR | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 205. | 9991104140 | [1] | NUT; HSG | C M14 RH THREAD |
| 205. | 0911602140 | [1] | NUT; HSG | M14 H=11 |
| 211(A). | 0500408250 | [7] | BOLT; HSG | M8X25 W/LK WASHER |
| 211(A). | 9910664500 | [7] | BOLT; HSG | A M14X50 |
| 211(A). | 0288914450 | [7] | BOLT; HSG | M14X45 |
| 224. | 9944112350 | [3] | STUD; STARTER | M12X35 L=53 |
| 241(A). | 9096510690 | [8] | WASHER; PL,HSG | ID=15 |
| 252(A). | 0500408200 | [2] | BOLT; GEAR BOX | A |
| 252(A). | 0286808200 | [2] | BOLT; GEAR BOX | |
| 275(A). | 5113270090 | [1] | POINTER; TIMING CHECK HOLE | L=33 |
| 297. | 9095714160 | [1] | GASKET; PLUG,HSG | |
| 298. | 9992023160 | [1] | PLUG; TAPER SCREW | |
