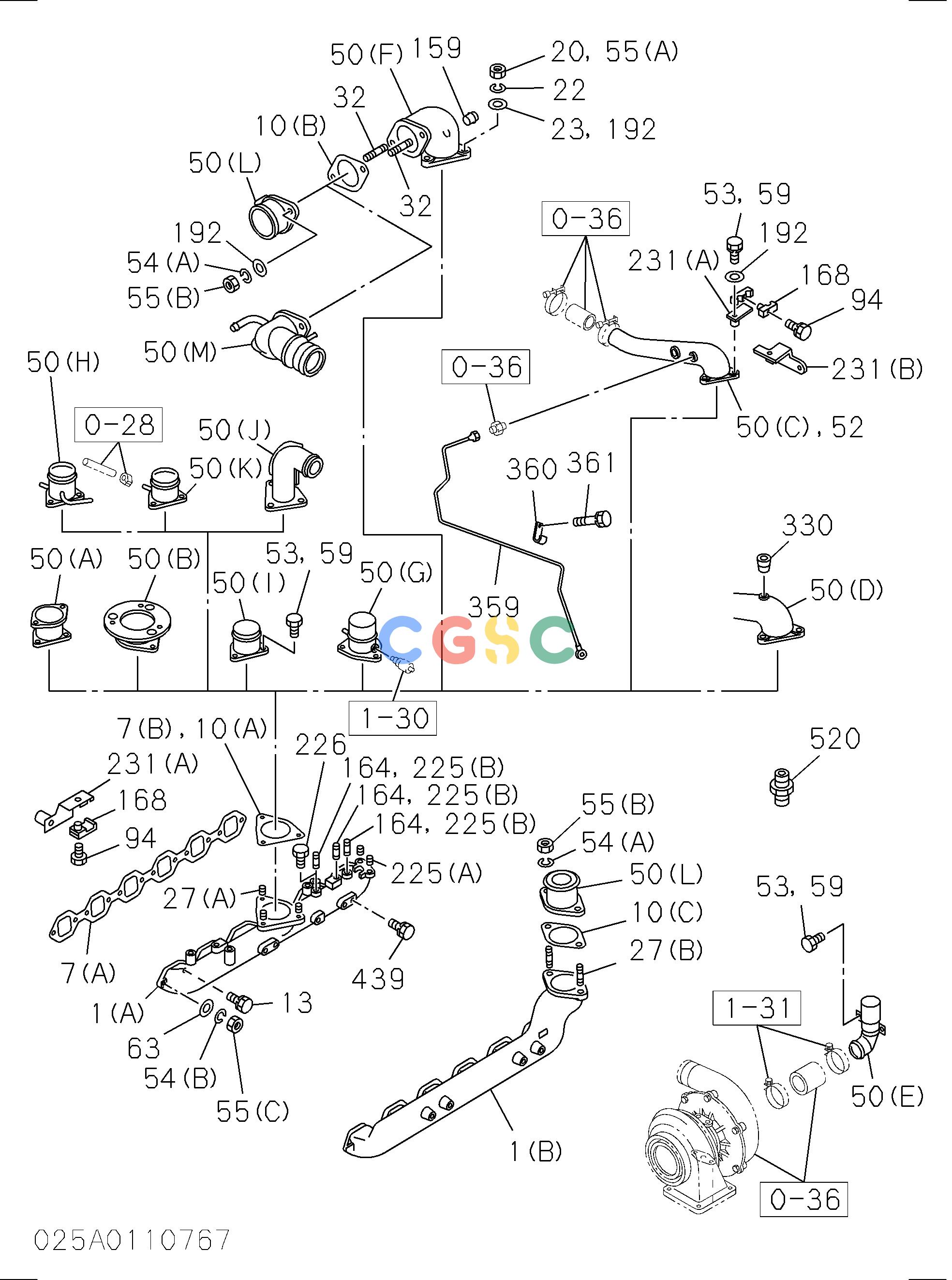

日立零件查询（CG45）INLET MANIFOLD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
947 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 1141117562 | [1] | MANIFOLD; INL | |
| 7(A). | 1141150520 | [1] | GASKET; INL MANIF TO HD | C ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 7(A). | 1141150610 | [1] | GASKET; INL MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 7(A). | 1141150610 | [1] | GASKET; INL MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 10(A). | 1141150540 | [1] | GASKET; INL PIPE TO MANIF | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 10(A). | 1141150590 | [1] | GASKET; INL PIPE TO MANIF | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 13. | 0501408280 | [9] | BOLT; INL MANIF | M8X28 W/LK & PL WASH |
| 13. | 0501408280 | [9] | BOLT; INL MANIF | M8X28 W/LK & PL WASH |
| 20. | 9091104080 | [3] | NUT; INL MANIF | M8 |
| 20. | 9091104080 | [3] | NUT; INL MANIF | M8 |
| 22. | 9091505080 | [3] | WASHER; LK,INL MANIF | ID=8.2 |
| 22. | 9091505080 | [3] | WASHER; LK,INL MANIF | ID=8.2 |
| 23. | 9091605080 | [3] | WASHER; PL,INL MANIF | ID=8 |
| 23. | 9091605080 | [3] | WASHER; PL,INL MANIF | ID=8 |
| 27(A). | 9040108280 | [3] | STUD; INL MANIF | |
| 50(I). | 5141112101 | [1] | PIPE; INL | |
| 53. | 0501408300 | [3] | BOLT; INL PIPE | A |
| 53. | 0286808300 | [3] | BOLT; INL PIPE | |
| 225(A). | 9044110280 | [2] | STUD; FUEL FILTER | M10X28 L=43 |
