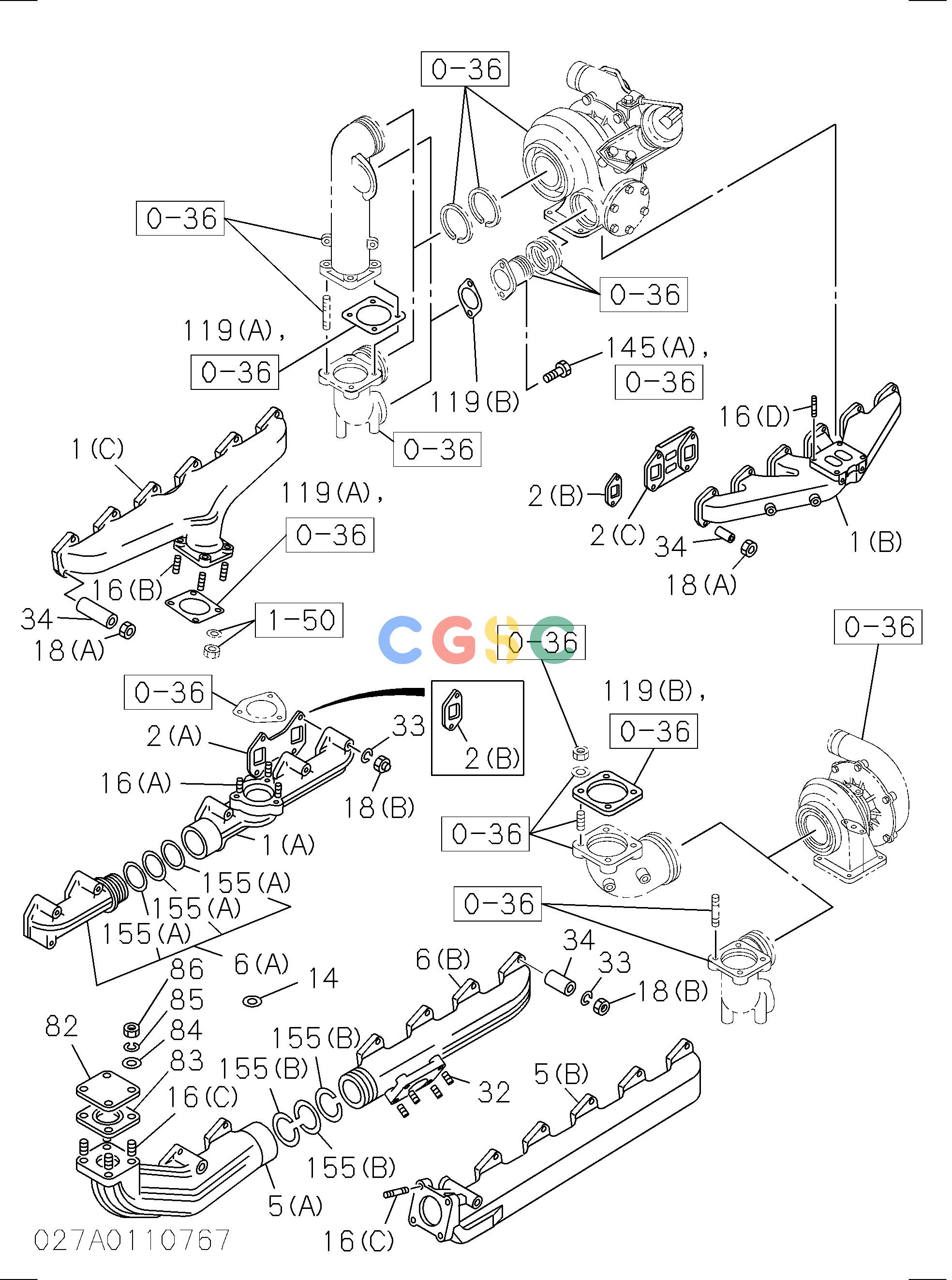

日立零件查询（CG45）EXHAUST MANIFOLD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 9141418030 | [1] | MANIFOLD; EXHAUST | |
| 2(A). | 5141450040 | [3] | GASKET; EXH MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 6(A). | 9141412761 | [1] | MANIFOLD; EXH,RR | |
| 14. | 9098516490 | [1] | WASHER; PL,EXH MANIF | |
| 14. | 9098516490 | [2] | WASHER; PL,EXH MANIF | |
| 16(A). | 9044110300 | [3] | STUD; EXH PIPE TO MANIF | |
| 18(B). | 9098445650 | [12] | NUT; EXH MANIF | |
| 18(B). | 8941704860 | [12] | NUT; EXH MANIF | C |
| 18(B). | 8970614011 | [12] | NUT; EXH MANIF | |
| 155(A). | 9141496530 | [3] | RING; SEAL,EXH MANIF | |
